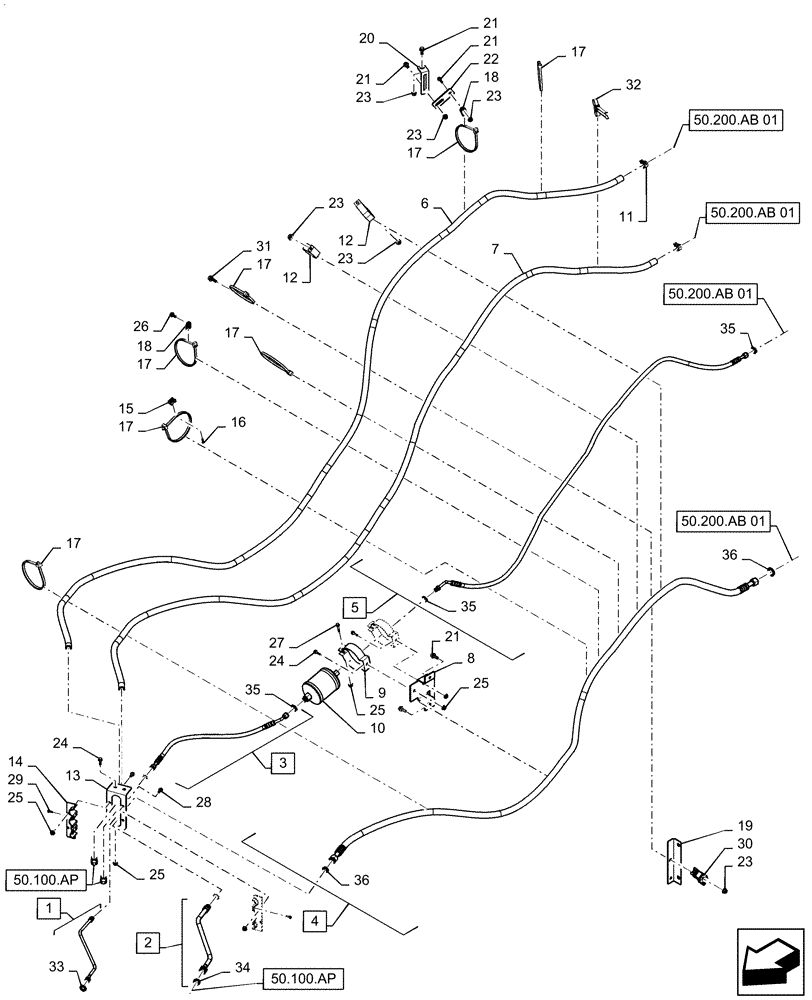

Запчасти Case IH 7140 (50.200.AB[02]) - FRAME AIR CONDITIONING & HEATER HOSE (50) - CAB CLIMATE CONTROL

1

47406002

TUBE

A/C Compressor, Incl 33

1шт.

2

47406001

TUBE

A/C Compressor, Suction, Incl 34

1шт.

3

84548713

A/C HOSE,7.9mm ID x 690mm L

Dryer to Cab, Incl 35

1шт.

4

47406004

HOSE,15.88mm ID x 3630mm L

A/C Suction, Incl 36

1шт.

5

84601219

TUBE

A/C Union to Dryer, Incl 35

1шт.

6

86997298

HEATER HOSE,15.5mm ID x 6200mm OAL

Supply, Bulk, Cut to 4186mm

1шт.

7

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

Heater Return, Bulk, Cut to 4150mm

1шт.

8

84598218

BRACKET

Dryer Mount

1шт.

9

87105841

BRACKET

Dryer Clamp

2шт.

10

87105840

RECEIVER-DRYER

A/C

1шт.

11

1954736C1

HOSE CLAMP,#24

4шт.

12

1301387C2

CLIP

Hose

3шт.

13

84593658

BRACKET

A/C - Heater Bulkhead

1шт.

14

125264A2

CLAMP

Hose Bulkhead

2шт.

15

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

16

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

17

529070

CABLE TIE,368.3mm L

10шт.

18

84340333

BASE PLATE

Base

2шт.

19

47406003

BRACKET

Tube Clamp

1шт.

20

84551621

BRACKET

Adjustment

1шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

22

84551627

BRACKET

Adjustment

1шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

24

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

3шт.

25

86050300

FLANGE NUT,M6 x 1.0, Cl 10

12шт.

26

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

27

87698832

FLANGE BOLT,Hex, M6 x 35mm, Cl 10.9

2шт.

28

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

4шт.

29

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

4шт.

30

84360209

BASE

Tie

1шт.

31

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

32

84386243

CLAMP,489mm L

Dual Tie

1шт.

33

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

34

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

35

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

4шт.

36

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.
