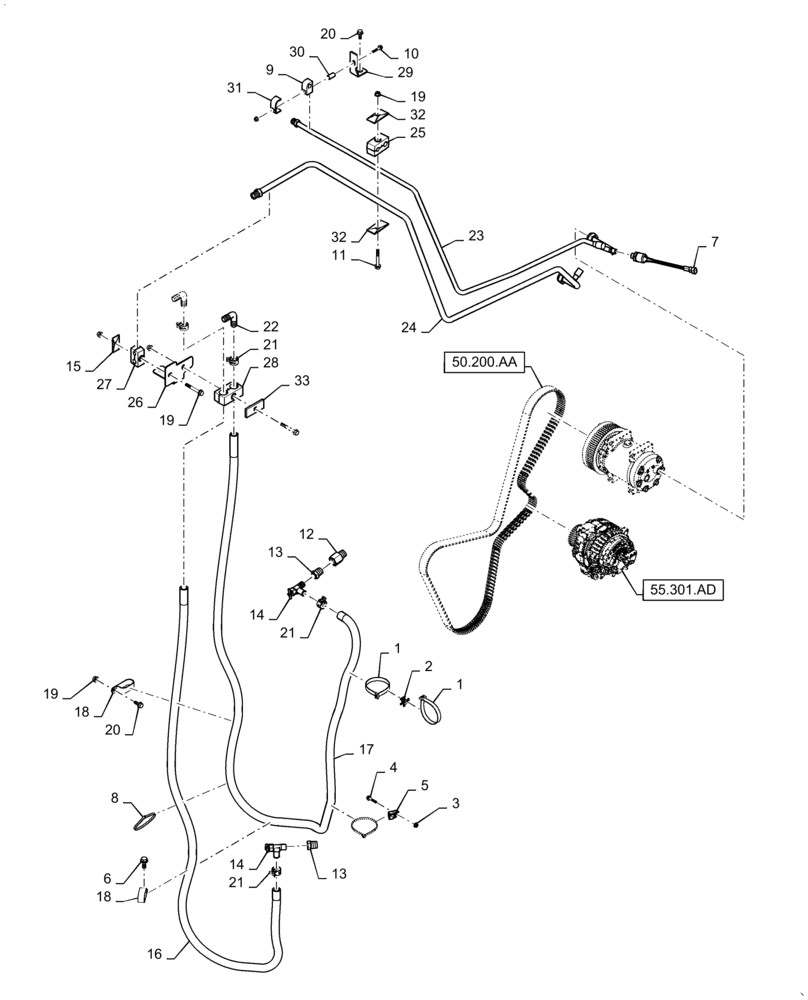

Запчасти Case IH 7140 (50.200.AB[01]) - PIPE, AIR CONDITIONER, ENGINE (50) - CAB CLIMATE CONTROL

1

84360212

CABLE TIE,294.2mm L, Nylon

Strap

2шт.

2

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

3

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

4

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

5

84340333

BASE PLATE

Base

1шт.

6

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

7

87000227

SWITCH, A/C HIGH PRE

1шт.

8

86566990

CABLE TIE,292mm OAL x 4.8mm W

2шт.

9

87644666

CLAMP

Tube

1шт.

10

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Flange, M8 x 40mm, 10.9

1шт.

11

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

Flange, M8 x 60mm, 10.9

4шт.

12

84370843

REDUCER FITTING

1/2"-14 Male x 1/2-14 Female

1шт.

13

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

2шт.

14

301803R1

SHUT-OFF VALVE

90°

2шт.

15

72180326

PLATE

Tube Clamp

1шт.

16

NS

NOT SERVICED

Return, 72.8", Cut From Bulk 87567191

1шт.

17

NS

NOT SERVICED

Supply, 95.7", Cut From Bulk 87567192

1шт.

18

470375C1

CLAMP,1", Insul, 3/8" Bolt

Tube

3шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

21

1954736C1

HOSE CLAMP,#24

4шт.

22

127083A1

ELBOW,16mm OD x 17mm OD Bead

Heater Hose

2шт.

23

47405993

TUBE

A/C Suction

1шт.

24

47374646

TUBE

To Compressor

1шт.

25

87000139

CLAMP

15.87mm x 12.7mm

2шт.

26

47408802

BRACKET

Tube Clamp

1шт.

27

87000159

CLAMP

15.87mm x 9.52mm

1шт.

28

87000152

CLAMP,25.4mm D Clamping Pipes x 2

25.4mm x 25.4mm

1шт.

29

84597672

SUPPORT

Tube Bundle Center

1шт.

30

84172485

SPACER

Tube Clamp

1шт.

31

84172254

PLATE

Tube Clamp

1шт.

32

87000230

PLATE

Hose Clamp

4шт.

33

84283495

SECURING STRAP

Clamp Mounting

1шт.
