Запчасти Case IH 7140 (50.100.AP) - CAB, EVAPORATOR, HEATER COIL, FAN (50) - CAB CLIMATE CONTROL

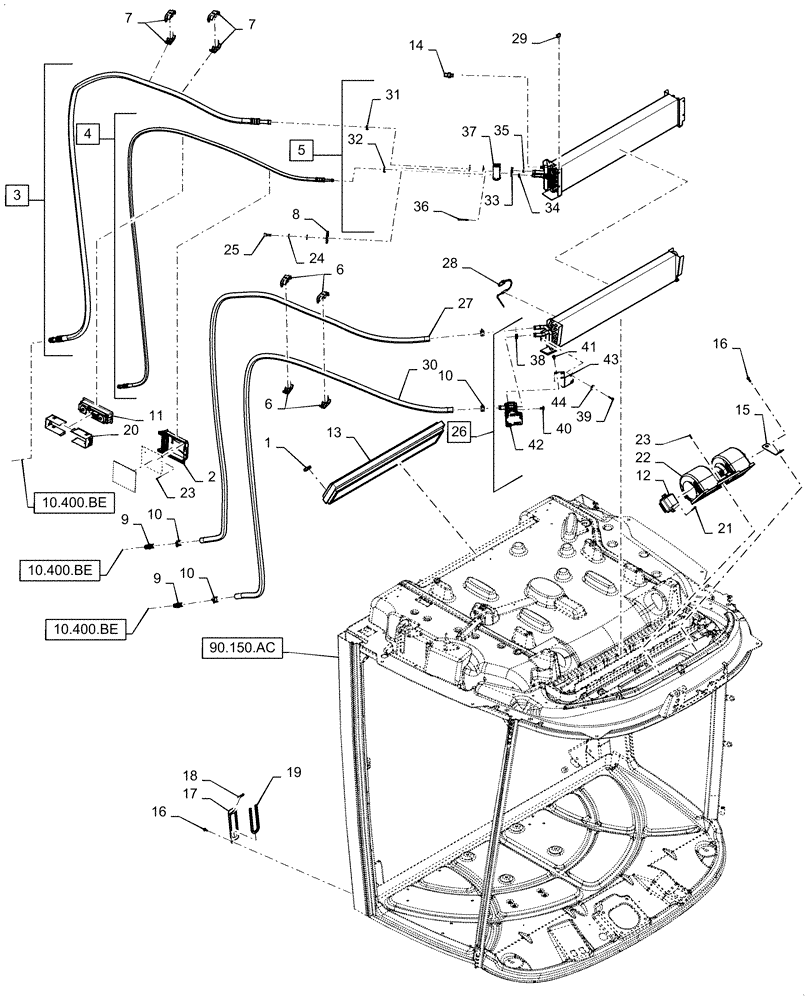

Схема запчастей Case IH 7140 - (50.100.AP) - CAB, EVAPORATOR, HEATER COIL, FAN (50) - CAB CLIMATE CONTROL
90.150.ac
23
28
11
5
30
12
7
10
9
6
19
1
15
4
40
10
32
26
14
2
29
37
31
33
35
41
20
18
16
9
10
39
23
13
7
6
8
16
34
25
17
27
21
22
44
24
38
3
42
43
36
10.400.be
10.400.be
10.400.be

Артикул

Название

Примечание

Количество

1

87454442

SENSOR

Thermister, Cab Return Air

3шт.

2

47532798

MODULE

ATC Control

1шт.

2

47532798R

REMAN-MODULE

ATC Control

1шт.

2

47532798C

CORE-MODULE

Return Number

1шт.

3

47405809

A/C HOSE

Liquid, Incl 31

1шт.

4

47405767

A/C HOSE,15.88mm ID x 2600mm L

Suction, Incl 32

1шт.

5

47613257

EVAPORATOR

A/C, Incl 31 - 37

1шт.

6

47621906

CLAMP,25.4mm ID x 78.94mm OAL x 27.94mm Thk

4шт.

7

47621955

CLAMP,25.4mm ID x 78.94mm OAL x 27.94mm Thk

4шт.

8

87754245

MOUNTING PLATE

Hose

1шт.

9

44995013

FITTING

Plastic Connector

2шт.

10

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

Heater

4шт.

11

47542134

CONTROL

HVAC DIN Unit

1шт.

12

84342778

DRIVER

Blower Linear

1шт.

13

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Fresh/Recirc

1шт.

14

47996489

A/C Low

SWITCH, A/C LOW PRES

1шт.

15

84350681

BRACKET

Sensor Mount Outlet Air

1шт.

16

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

17

84419756

BRACKET

B-Post

1шт.

18

84544528

TRIM

Black

1шт.

19

84478836

TRIM,298mm L

Black

1шт.

20

87281122

SLEEVE

Din, Mount

1шт.

21

86625169

SCREW,Pan, 1-1/2" OAL

2шт.

22

84580265

BLOWER

Air Conditioner

1шт.

23

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

8шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

25

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

26

47613259

HEATER COIL

Incl 38 - 44

1шт.

27

84607280

HEATER HOSE,15.9mm ID x 23.9mm OD x 2.71M

Return

1шт.

28

87754238

SENSOR

Temperature

1шт.

29

47395715

CLIP

U-Type, Panel Fastener

2шт.

30

84607279

HEATER HOSE,15.9mm ID x 150mm L, SAE 20R3

Supply

1шт.

31

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

32

87533612

O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro

1шт.

33

84144154

MOUNTING PLATE

Evaporator

1шт.

34

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

35

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

36

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

37

82023542

VALVE, THERMAL EXPAN

Evaporator

1шт.

38

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

39

86507068

BOLT,M5 x 0.8 x 17.4mm

2шт.

40

87355939

SCREW,#8 - 16 x 0.28"

4шт.

41

47364405

SCREW,Torx, M8 x 12.699mm, SST

4шт.

42

84542607

HEATER VALVE

Coil

1шт.

43

84542606

BRACKET

Support

1шт.

44

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 46
