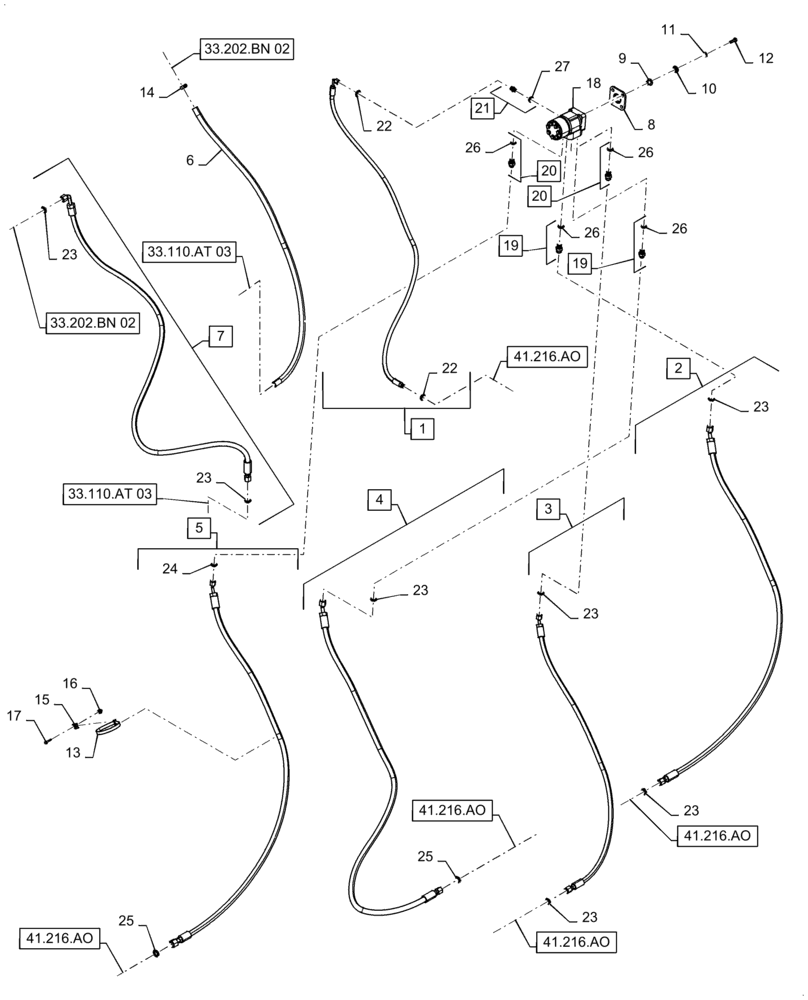

Запчасти Case IH 7140 (41.206.AA) - PUMP, HYDRAULIC STEERING (41) - STEERING

1

84574648

HYDRAULIC HOSE,6.35mm ID x 1600mm L, SAE 100R17

Steering, High Pressure Signal, Incl 22

1шт.

2

47735020

HOSE

Left Front Pressure, Incl 23

1шт.

3

84574652

HYDRAULIC HOSE,12.7mm ID x 1460mm L, SAE 100R17

High Pressure Supply, Incl 23, 24

1шт.

4

84574654

HYDRAULIC HOSE,12.7mm ID x 1955mm L, SAE 100R17

Steering Return, Incl 23

1шт.

5

47735021

HOSE

Right Front Pressure, Incl 24, 25

1шт.

6

84126065

HYDRAULIC HOSE

Return, Brake

1шт.

7

84546429

HYDRAULIC HOSE,12.7mm ID x 2070mm L, SAE 100R17

Brake Supply, Incl 23

1шт.

8

84553550

ISOLATOR

Steering Pump

1шт.

9

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

10

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

13

84266050

CABLE TIE,384mm L, Polyamide

1шт.

14

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

15

84340333

BASE PLATE

Tie Base

1шт.

16

86610198

INSERT,M6 x 1

1шт.

17

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

18

87749828

VALVE

Steering

1шт.

18

87749827

VALVE

Steering

1шт.

19

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 26

2шт.

20

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

Incl 26

2шт.

21

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

Incl 27

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

25

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

27

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
