Запчасти Case IH 7140 (41.101.AC) - STEERING COLUMN, COMPONENTS (41) - STEERING

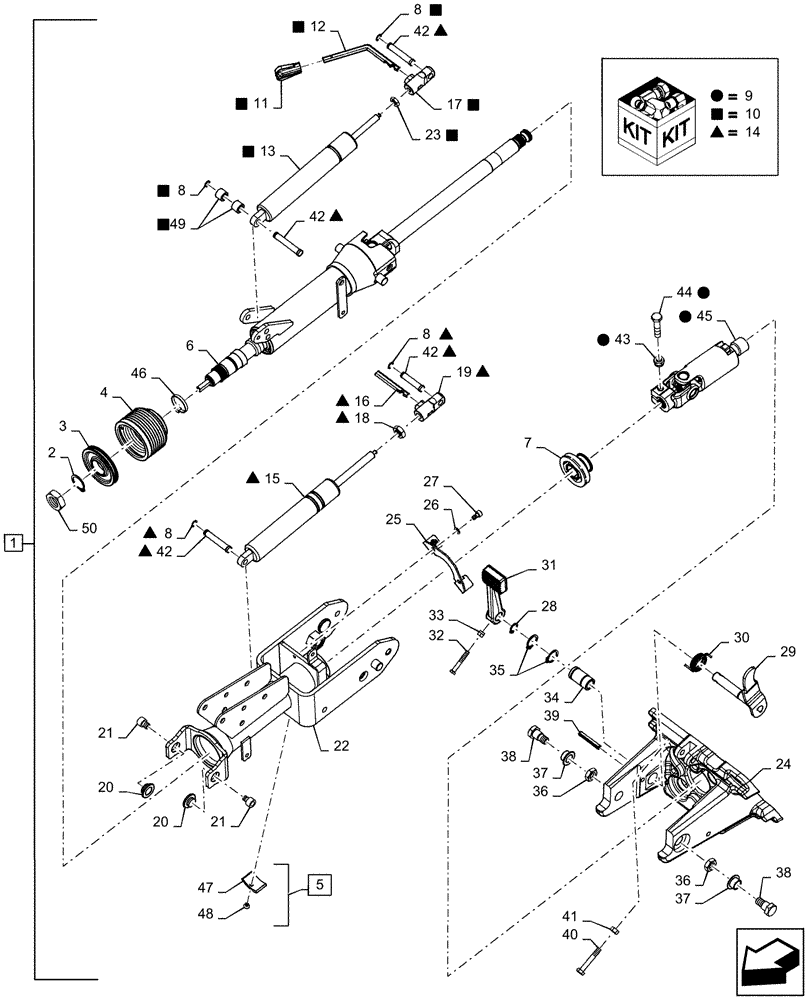

Схема запчастей Case IH 7140 - (41.101.AC) - STEERING COLUMN, COMPONENTS (41) - STEERING
23
38
9
11
14
24
14
9
4
9
47
33
29
41
14
10
2
9
19
44
45
32
12
14
38
36
10
48
10
14
8
31
8
20
10
18
13
14
30
27
42
10
42
14
26
37
1
10
14
10
9
3
10
16
35
8
42
14
34
6
49
7
14
39
17
15
14
43
10
21
8
20
10
37
25
22
5
50
36
40
28
14
21
46
42

Артикул

Название

Примечание

Количество

1

47433417

STEERING COLUMN,Tilting, Telescoping

Assy, Incl 2 - 50

1шт.

2

370001

SNAP RING,M22, External

1шт.

3

47667007

BOOT

Stop

1шт.

4

47667012

BOOT

Cover, Dust, Incl 46

1шт.

5

47667080

KIT

Sensor Spacer, Incl 47, 48

1шт.

6

47667018

SHAFT

Steering, Telescopic

1шт.

7

84380257

MAGNET

30 Pole Ring

1шт.

8

11065671

CIRCLIP

8mm

4шт.

9

47667145

KIT

U - Joint and Shaft, Incl 43 - 45

1шт.

10

47667171

SHOCK ABSORBER

Upper, Gas Strut, Incl 8, 11 - 13, 17, 23, 42, 49

1шт.

11

47667020

KNOB

Release Lever

1шт.

12

47667023

LEVER

Release

1шт.

13

47667030

STRUT

Upper, Gas Strut

1шт.

14

47667152

KIT

Lower, Gas Strut, Incl 8, 15, 16, 18, 19, 42

1шт.

15

87607304

CYLINDER

Lower, Gas Strut

1шт.

16

47667032

LEVER

Release

1шт.

17

87607297

GAS STRUT

Head

1шт.

18

87607305

NUT

Jam, M10 x 1.0

1шт.

19

87607308

GAS STRUT

Head

1шт.

20

87607288

BUSHING

Support

2шт.

21

87607289

SCREW

M8 x 9mm

2шт.

22

47667035

SUPPORT

Assy, Steering Shaft

1шт.

23

87607298

NUT

Jam, M8

1шт.

24

47667185

BASE PLATE

Steering Column

1шт.

25

47667085

SUPPORT

Sensor

1шт.

26

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

2шт.

27

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

2шт.

28

11066071

CIRCLIP,M12

1шт.

29

47667093

LEVER

Release

1шт.

30

87607317

SPRING

Torsion

1шт.

31

47667099

PEDAL

Steering Tilt

1шт.

32

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

1шт.

33

2977215

NUT,M5 x 0.8, Cl 8

1шт.

34

47667113

BUSHING

Steering Tilt

1шт.

35

11066674

CIRCLIP

18mm

2шт.

36

87607334

NUT

Jam, M10

2шт.

37

87610811

BUSHING

Steering Column Base

2шт.

38

87607326

BOLT

Shoulder

2шт.

39

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

40

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

41

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

42

NSS

NOT SOLD SEPARAT

Pin, Incl in 9, 14

4шт.

43

NSS

NOT SOLD SEPARAT

Nut, M8, Incl in 9

1шт.

44

NSS

NOT SOLD SEPARAT

Bolt, M8 x 37mm L, Incl in 9

1шт.

45

NSS

NOT SOLD SEPARAT

Intermediate Shaft, Incl in 9

1шт.

46

NSS

NOT SOLD SEPARAT

Steering Shaft Dust Boot Clamp, Incl in 4

1шт.

47

NSS

NOT SOLD SEPARAT

Sensor Spacer, Incl in 5

1шт.

48

NSS

NOT SOLD SEPARAT

Bolt, Incl in 5

1шт.

49

NSS

NOT SOLD SEPARAT

Spacer, Incl in 10

2шт.

50

87607276

NUT

Jam, M18 x 1.5

1шт.

Выбрано товаров: 50
