Запчасти Case IH 7140 (41.101.AB) - STEERING COLUMN (41) - STEERING

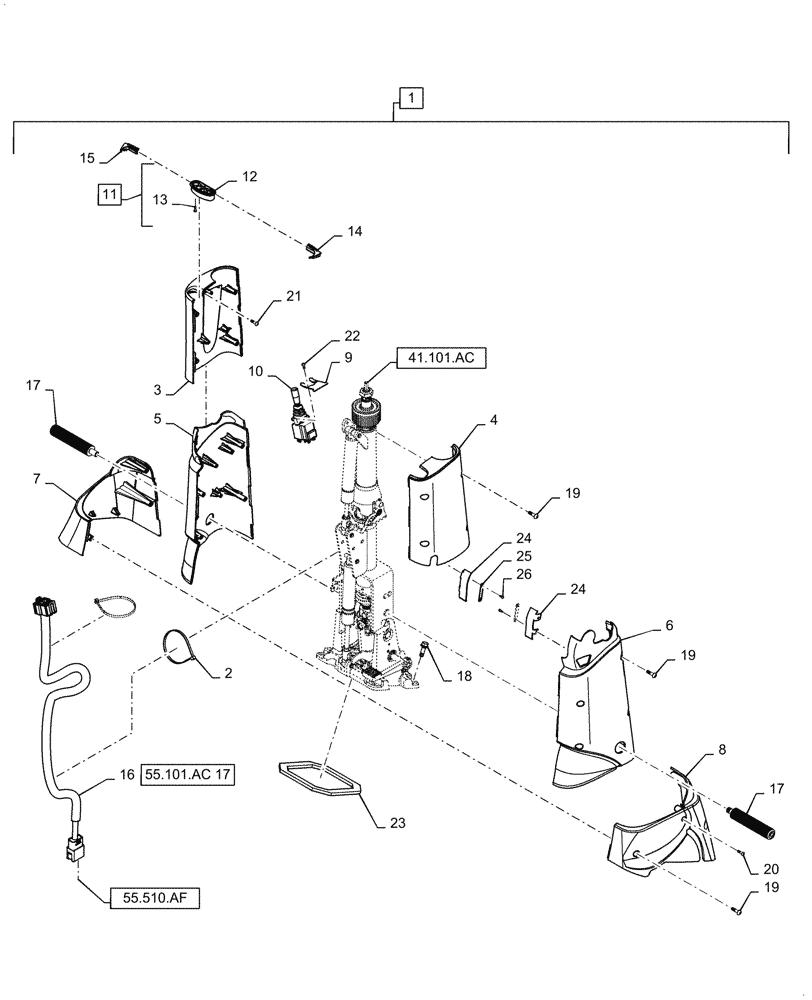

Схема запчастей Case IH 7140 - (41.101.AB) - STEERING COLUMN (41) - STEERING
55.510.af
21
17
12
10
14
19
22
6
17
13
18
1
15
20
11
5
9
24
7
4
16
25
8
23
19
24
26
19
3
2
55.101.ac 17
41.101.ac

Артикул

Название

Примечание

Количество

1

84331727

STEERING COLUMN

Incl 2 - 26

1шт.

2

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

3

47422975

COVER

Upper LH

1шт.

4

47422974

COVER

Upper RH

1шт.

5

47422986

COVER

Middle LH

1шт.

6

47422982

COVER

Middle RH

1шт.

7

84323821

COVER

Lower LH

1шт.

8

84323822

COVER

Lower RH

1шт.

9

84539487

BRACKET

Turn Signal Switch Mounting

1шт.

10

84360909

TOGGLE SWITCH

Turn Signal

1шт.

11

84344312

INSTRUMENT PANEL

Lamp Indicator, Incl 12, 13

1шт.

12

84469094

INSTRUMENT PANEL

Lamp Indicator

1шт.

13

280154

SELF-TAP SCREW,Cross Rd Hd, #6 x 1/2"

2шт.

14

47392759

MOUNT

Indicator Display, RH

1шт.

15

47392763

MOUNT

Indicator Display, LH

1шт.

16

84524006

HARNESS

Steering Column to Cab Harness

1шт.

17

47424855

FOOTREST

2шт.

18

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

19

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

15шт.

20

80043982

SCREW,Phillips Drive, Pan HD, M5 x 12mm, Cl 4.8

1шт.

21

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

1шт.

22

86511823

SCREW,Phillips Drive, Pan HD, M4 x 8mm, Cl 4.8

2шт.

23

84582200

GASKET,6.35mm Thk

Cab Floor

1шт.

24

47392741

COVER

Rubber, Middle

2шт.

25

84545277

PLATE

Rubber, Cover Retainer

2шт.

26

15901470

SELF-TAP SCREW,Cross Pan Hd, M2.90 x 1.1 x 9.50mm

4шт.

Выбрано товаров: 26
