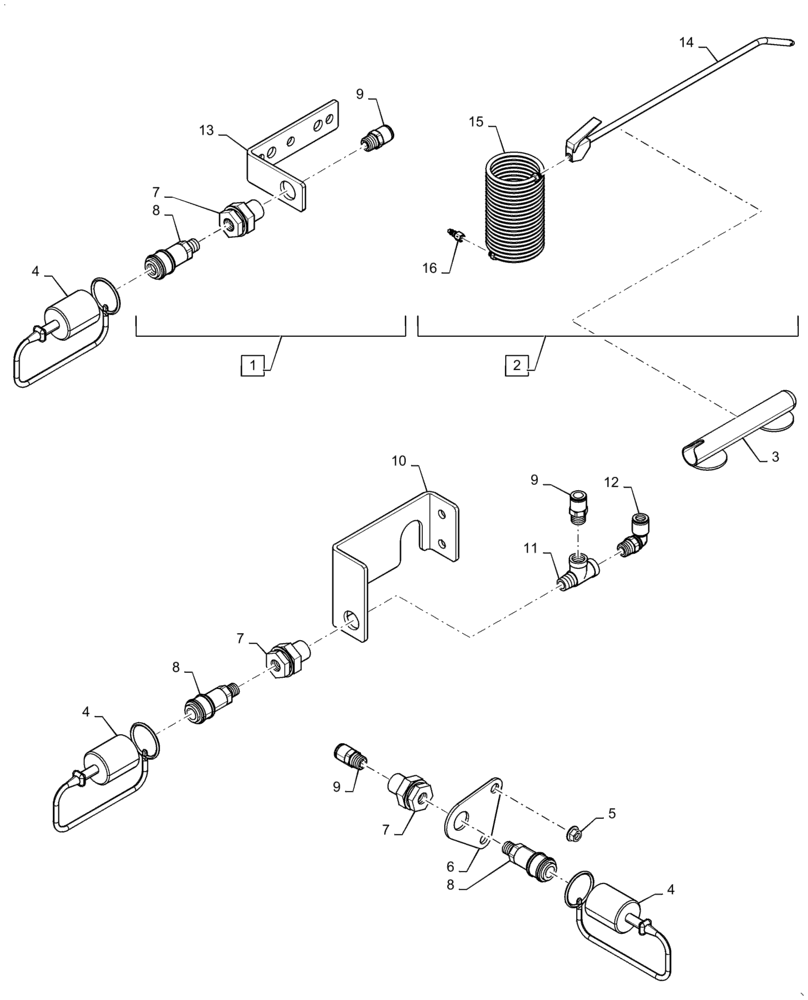

Запчасти Case IH 7140 (36.100.AL) - QUICK COUPLER, AIR COMPRESSOR, AIR GUN (36) - PNEUMATIC SYSTEM

1

84172052

Beacon/Midship Quick Connect, Incl 7 - 9, 13

SUPPORT

3шт.

2

84182443

AIR GUN

Blow Off, Incl 14 - 16

1шт.

3

84190520

NOZZLE HOLDER

Air Gun

1шт.

4

47672808

COVER

Dust

5шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

6

47711866

BRACKET

OBAC Mounting

1шт.

7

84171982

HYD CONNECTOR

Bulkhead, 1/4" NPTF

3шт.

8

84172049

COUPLING

Quick Coupling Socket, 1/4" NPTF

3шт.

9

84162977

HYD CONNECTOR

Push Connect, 3/8" OD

3шт.

10

84564803

BRACKET

Quick Connect, Operator Platform

1шт.

11

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1шт.

12

84162975

HYD CONNECTOR

Elbow, Push Connect, 3/8" OD

1шт.

13

84154228

BRACKET

Quick Connect, Beacon/Midship

1шт.

14

84181953

AIR GUN

Blow Off

1шт.

15

84181958

TUBE,25mm ID x 69mm OAL

Self Coiling

1шт.

16

84172050

HYD CONNECTOR

Quick Coupling, Plug, 1/4"

1шт.
