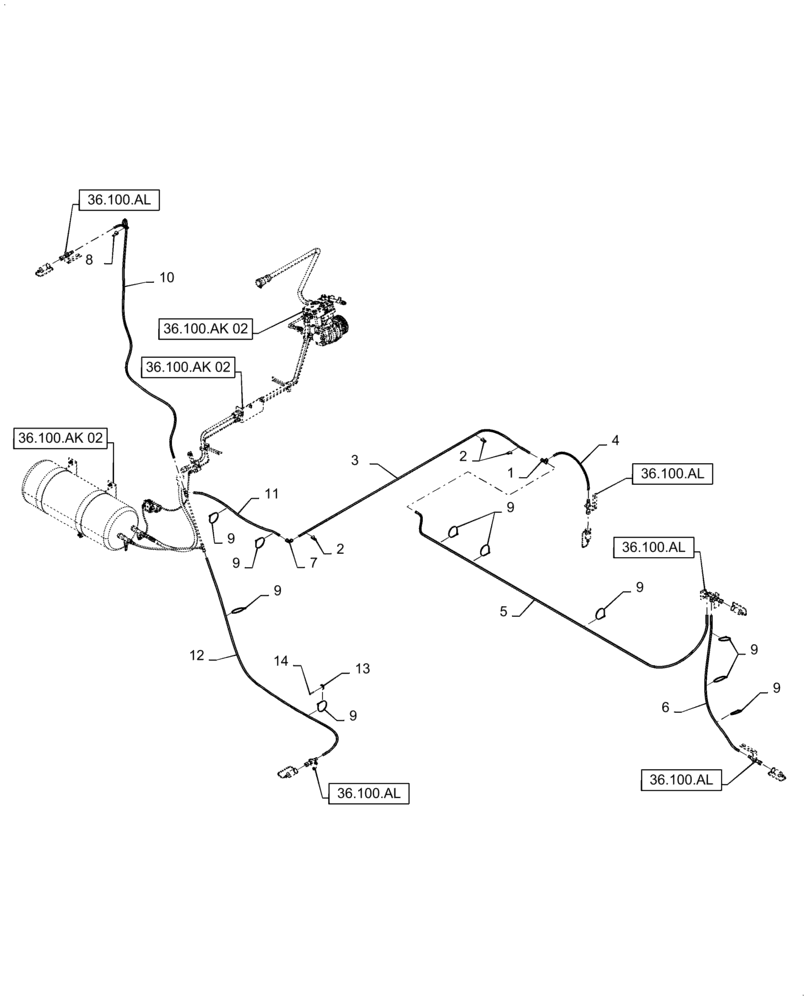

Запчасти Case IH 7140 (36.100.AK[01]) - AIR COMPRESSOR LINES (36) - PNEUMATIC SYSTEM

1

84175931

HYD CONNECTOR

Tee, Push Connect, 3/8"

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

3шт.

3

84372644

AIR HOSE

Reservoir to Midship Tee

1шт.

4

84176521

HOSE

Midship Tee to Midship Quick Connect

1шт.

5

84176522

TUBE,7.11 mm ID x 3220.00 mm

Midship Tee to Op Platform Quick Connect

1шт.

6

84172815

AIR HOSE,7.11mm ID x 1150mm OAL

Op Platform to Under Cab Quick Connect

1шт.

7

84372662

FITTING

Elbow Union, 3/8"

1шт.

8

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

10шт.

10

84176420

HOSE

Reservoir to Beacon Quick Connect

1шт.

11

84173550

AIR HOSE,7.1mm ID x 800mm OAL

Reservoir to Midship Tee

1шт.

12

47660088

HOSE

Midship Tee to Quick Connect

1шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

14

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.
