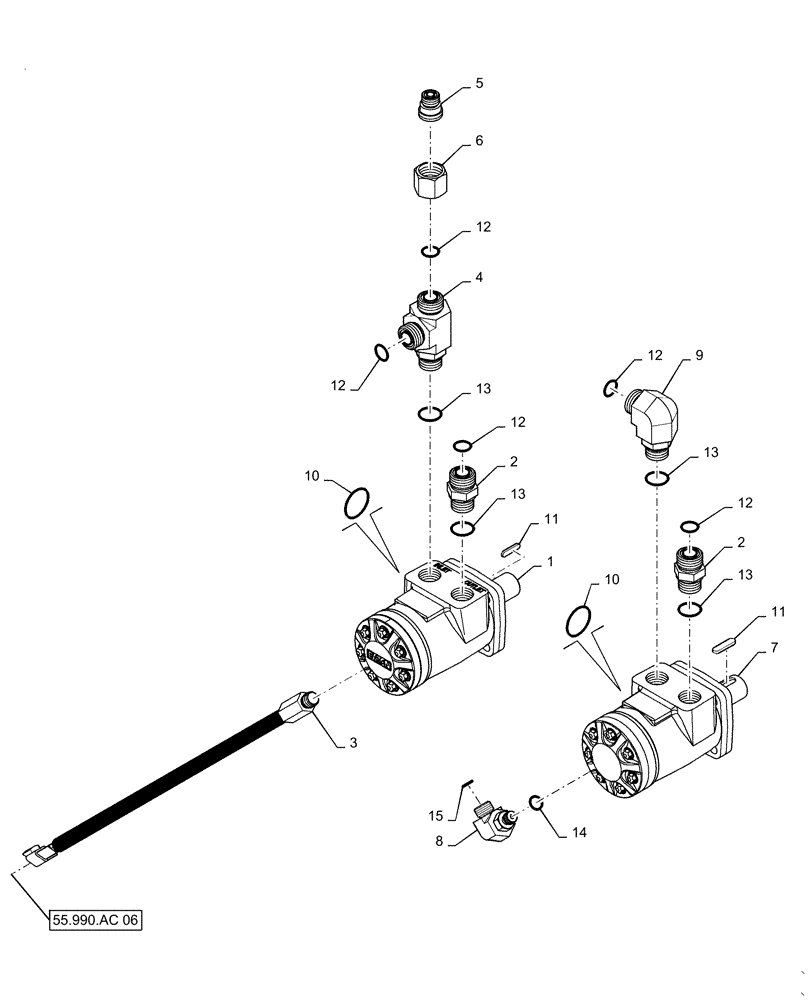

Запчасти Case IH 7140 (35.796.AE) - VAR - 425459, 425460, 425533 - CHAFF SPREADER HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

1

87519076

HYDRAULIC MOTOR,74CC

Chaff Spreader, RH

1шт.

1

87519076R

REMAN-HYD MOTOR

Chaff Spreader, RH

1шт.

1

87519076C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

3

87662556

SENSOR

Spreader Speed

1шт.

4

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

1шт.

5

201-161

UNION

5/8" x 3/8"

1шт.

6

203-903

TUBE NUT,1"-14 ORFS

1шт.

7

87519075

HYDRAULIC MOTOR,74CC

Chaff Spreader, LH

1шт.

7

87519075R

REMAN-HYD MOTOR

Chaff Spreader, LH

1шт.

7

87519075C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

8

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

1шт.

9

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

10

9807617

SEAL KIT

Services 1, 7

2шт.

11

170030

KEY,8mm x 7mm x 32mm

Motor Shaft

2шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

14

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
