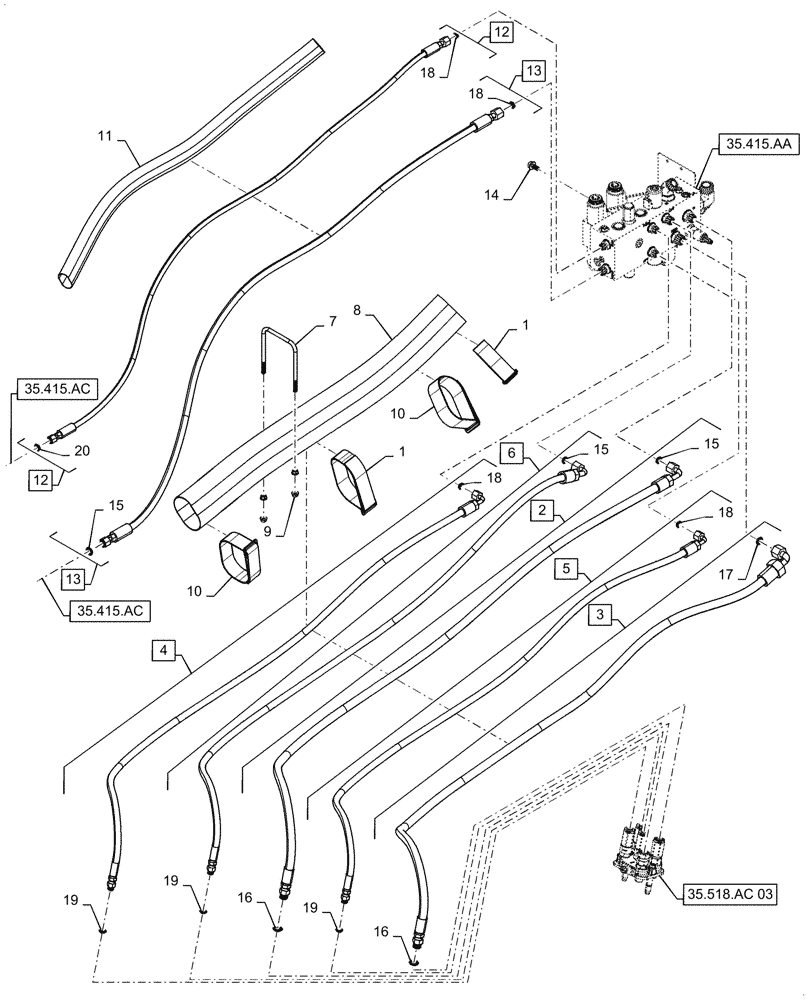

Запчасти Case IH 7140 (35.518.AC[01]) - HYDRAULIC SYSTEM, HEADER, FEEDER, COUPLING (35) - HYDRAULIC SYSTEMS

1

47789615

STRAP

Cinching

2шт.

2

84324768

HOSE ASSY.,12.7mm ID x 2320mm L, SAE 100R17

Reel Return, Incl 15, 16

1шт.

3

84324771

HOSE ASSY.,12.7mm ID x 2320mm L, SAE 100R17

Reel Supply, Incl 16, 17

1шт.

4

84324772

HOSE ASSY.,9.53mm ID x 2220mm L, SAE 100R17

Fore, Incl 18, 19

1шт.

5

84324773

HOSE ASSY.,9.53mm ID x 2320mm L, SAE 100R17

Aft, Incl 18, 19

1шт.

6

84324781

HOSE ASSY.

Lift, Incl 15, 19

1шт.

7

84372493

SUPPORT

Hose Bundle

1шт.

8

84273275

PROTECTIVE SLEEVE,115mm ID x 1050mm L

1шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

10

87108048

SECURING STRAP

Cinching

2шт.

11

84202851

SLEEVE,25mm ID x 1000mm L

1шт.

12

84324783

HOSE ASSY.,6.35mm ID x 1900mm L, SAE 100R17

Lateral Tilt Rod, Incl 18, 20

1шт.

13

84324784

HOSE ASSY.,9.53mm ID x 1920mm L, SAE 100R17

Lateral Tilt Piston, Incl 15, 18

1шт.

14

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

3шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

19

89617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
