Запчасти Case IH 7140 (35.359.AE[01]) - HYDRAULIC SYSTEM, LINES (35) - HYDRAULIC SYSTEMS

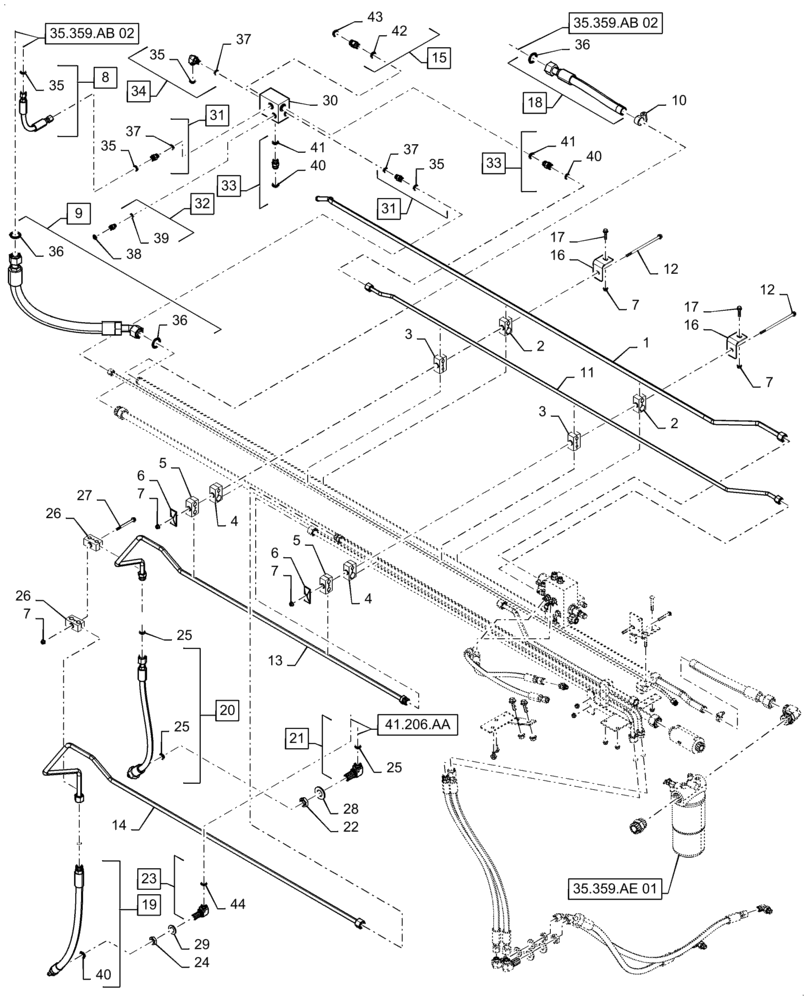

Схема запчастей Case IH 7140 - (35.359.AE[01]) - HYDRAULIC SYSTEM, LINES (35) - HYDRAULIC SYSTEMS
28
7
6
35
6
27
35.359.ab 02
7
22
25
5
32
25
39
41.206.aa
44
31
40
15
24
16
8
33
9
23
1
36
37
31
40
29
34
35.359.ab 02
4
7
25
36
21
12
19
26
30
35
38
35
35.359.ae 01
3
37
33
36
43
41
40
16
4
13
12
17
2
20
37
3
5
7
10
11
41
26
2
18
14
17
35
7
42

Артикул

Название

Примечание

Количество

1

47566317

HYD TUBE

Low Pressure Return

1шт.

2

87000138

CLAMP

Hydraulic Tube, 25.4mm x 15.87mm

2шт.

3

87105732

CLAMP

Hydraulic Tube, 12.7mm x 9.52mm

2шт.

4

87000141

CLAMP

Hydraulic Tube, 25.4mm x 12.7mm

2шт.

5

87000150

CLAMP,15.869mm ID

2шт.

6

87000230

PLATE

Hose Clamp

2шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

8

84347770

HOSE ASSY.

Pilot Pressure, Incl 35

1шт.

9

84193638

HOSE ASSY.

Valve Pressure, Incl 36

1шт.

10

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

11

47566315

HYD TUBE

Regulated Pressure

1шт.

12

84326213

BOLT,Hex, M8 x 180mm, Cl 10.9

2шт.

13

47765401

HYD TUBE

Right Steering, Chassis Front

1шт.

14

47765400

HYD TUBE

Left Steering, Chassis Front

1шт.

15

84194177

CHECK VALVE

Incl 42, 43

1шт.

16

47764990

SUPPORT

Tube Bundle Frame

2шт.

17

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

18

84282059

HOSE ASSY.

Valve Stack Return, Incl 36

1шт.

19

47741638

HOSE

Left Steering, Front Post, Incl 40

1шт.

20

47741631

HOSE

Hose, Right Steering, Front Post, Incl 25

1шт.

21

87319551

90 ELBOW

Incl 25

1шт.

22

87381294

LOCK NUT

Bulkhead, 5/8"

1шт.

23

87319550

90 ELBOW

Incl 44

1шт.

24

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

Bulkhead, 1/2"

1шт.

25

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

26

87000139

CLAMP

Hydraulic Tube, 15.87mm x 12.7mm

2шт.

27

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

1шт.

28

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

4шт.

29

84298882

WASHER,21mm ID x 50mm OD x 3mm Thk

1шт.

30

84188950

MANIFOLD

Hydraulic

1шт.

31

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 35, 37

2шт.

32

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Incl 38, 39

1шт.

33

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Incl 40, 41

2шт.

34

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 35, 37

1шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

36

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

37

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

38

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

39

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

40

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

41

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

9992898

O-RING

Bulkhead Fitting

1шт.

Выбрано товаров: 44
