Запчасти Case IH 7140 (35.359.AB[02]) - VALVE, MAIN DISTRIBUTOR, FEEDER, REEL, REVERSER (35) - HYDRAULIC SYSTEMS

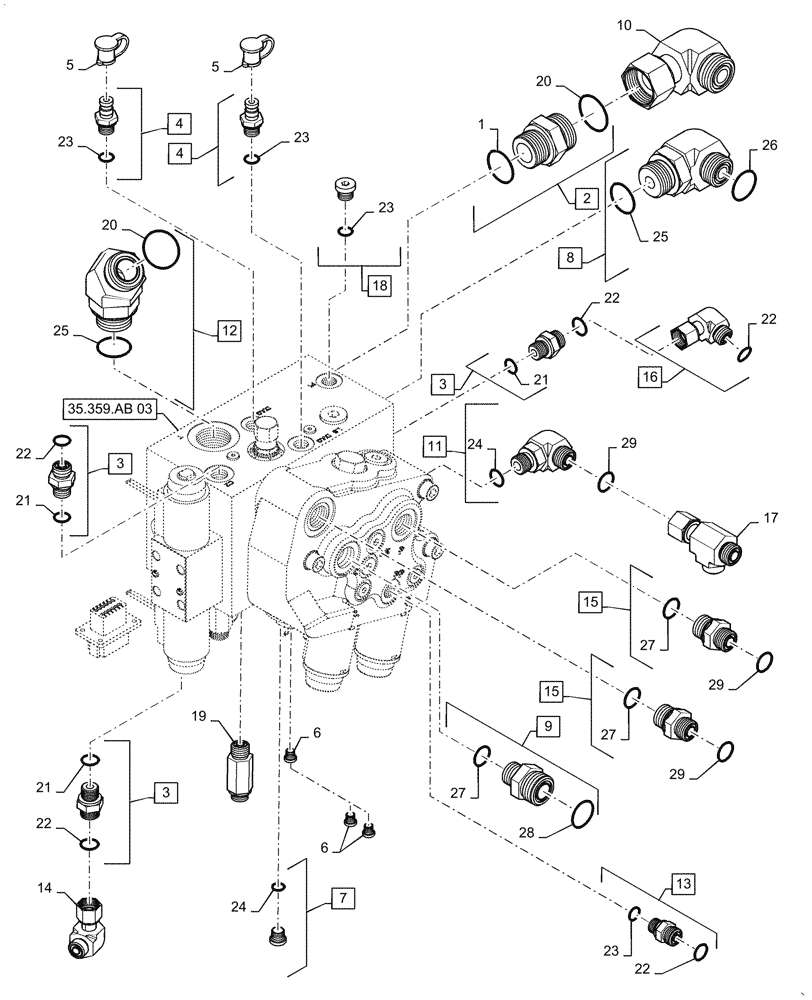

Схема запчастей Case IH 7140 - (35.359.AB[02]) - VALVE, MAIN DISTRIBUTOR, FEEDER, REEL, REVERSER (35) - HYDRAULIC SYSTEMS
35.359.ab 03
13
10
4
22
20
12
27
7
23
5
21
14
22
4
1
3
20
6
16
23
24
21
15
24
25
25
18
22
22
23
3
3
19
8
27
22
9
27
21
26
29
11
5
23
29
15
29
2
6
17
28

Артикул

Название

Примечание

Количество

1

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 1, 20

1шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 21, 22

3шт.

4

84320565

COUPLING,M14 x 1.5

Incl 23

2шт.

5

86502604

DUST CAP

1/8"

2шт.

6

86529630

PLUG,Hex Soc, 3/8"-24 ORB

1шт.

6

87428328

PRESSURE SWITCH

Float Option, Replaces 6 Plug, Requires Reducer

1шт.

6

84377662

REDUCER FITTING

Float Option, Replaces 6 Plug, For Pressure Switch

1шт.

7

86598046

PLUG,M18 x 1.5 ORB

Incl 24

1шт.

8

86579698

90 ELBOW,1 3/16"-12 ORFS x M33 x 2 ORB

Incl 25, 26

1шт.

9

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl 27, 28

1шт.

10

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

1шт.

11

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 24, 29

1шт.

12

86639054

45 ELBOW,45 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 20, 25

1шт.

13

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 22, 23

1шт.

14

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

15

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Incl 27, 29

2шт.

16

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl 22

1шт.

17

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

18

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

Incl 23

1шт.

19

84384048

HYD CONNECTOR

10mm ORFS x 16mm ORB

1шт.

20

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

21

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

24

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

25

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

26

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

27

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

28

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

Выбрано товаров: 31
