Запчасти Case IH 7140 (33.202.BN[02]) - BRAKE VALVE (33) - BRAKES & CONTROLS

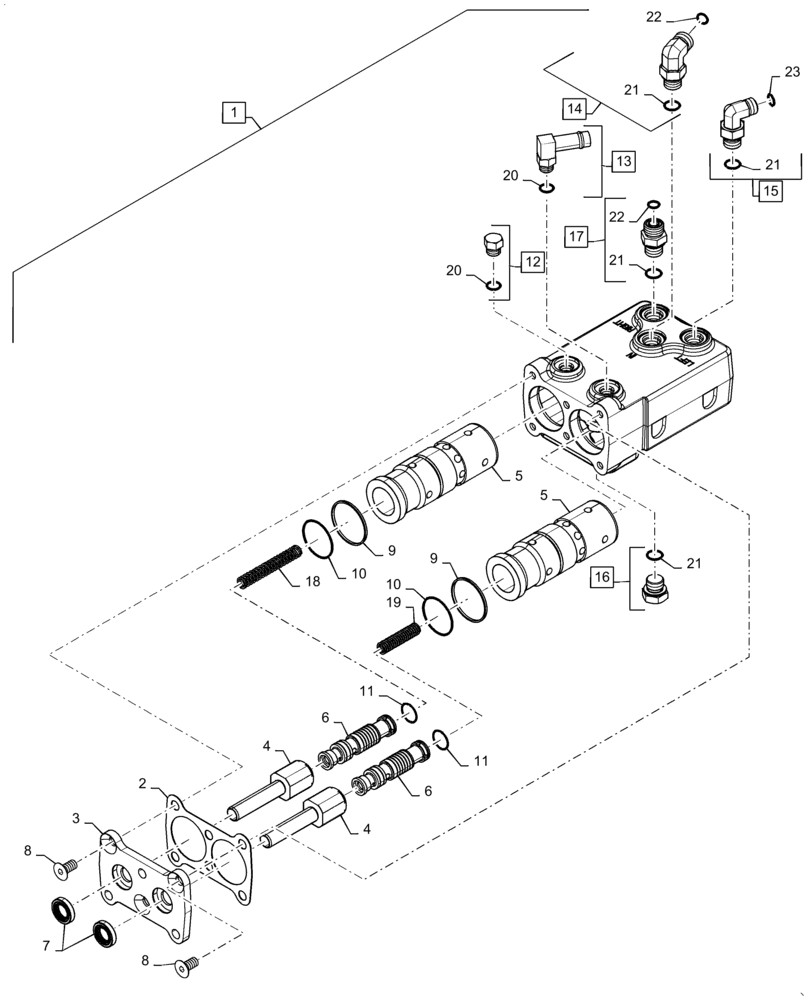

Схема запчастей Case IH 7140 - (33.202.BN[02]) - BRAKE VALVE (33) - BRAKES & CONTROLS
10
14
21
4
9
22
18
21
7
4
22
16
11
12
13
10
9
1
23
5
6
8
21
3
20
6
17
2
21
19
20
11
15
8
5

Артикул

Название

Примечание

Количество

1

47806607

BRAKE VALVE

Incl 2 - 23

1шт.

2

403356A1

GASKET,0.92mm Thk

Brake Valve

1шт.

3

397111A1

PLATE

Brake, Firewall

1шт.

4

433199A1

POPPET

Brake

2шт.

5

397105A5

SLEEVE

Brake

2шт.

6

397106A5

SPOOL

Brake

2шт.

7

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

2шт.

8

725583

HEX SOC SCREW,Flat, M10 x 1.5 x 20mm, Cl 8.8

3шт.

9

407387A1

SEAL,47.64mm ID x 50.8mm OD x 2.38mm Thk

2шт.

10

87016962

O-RING,0.103" Thk x 1.674" ID, -131, Cl 7, 75 Duro

2шт.

11

407282A1

SNAP RING

Retaining

2шт.

12

76349

PLUG,9/16" - 18 ORB

Incl 20

1шт.

13

86625048

FITTING,90 Degree, 5/8" Hose x 9/16"-18 ORB Beaded

Incl 20

1шт.

14

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 21, 22

1шт.

15

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

Incl 21, 23

1шт.

16

87030025

PLUG,Hex, M18 x 1.5 ORB

Incl 21

1шт.

17

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 21, 22

1шт.

18

433196A2

SPRING

Feathering Outer

1шт.

19

397110A1

COMPRESSION SPRING

Return

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

21

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 23
