Запчасти Case IH 7140 (33.202.AK) - BRAKE ASSY. (33) - BRAKES & CONTROLS

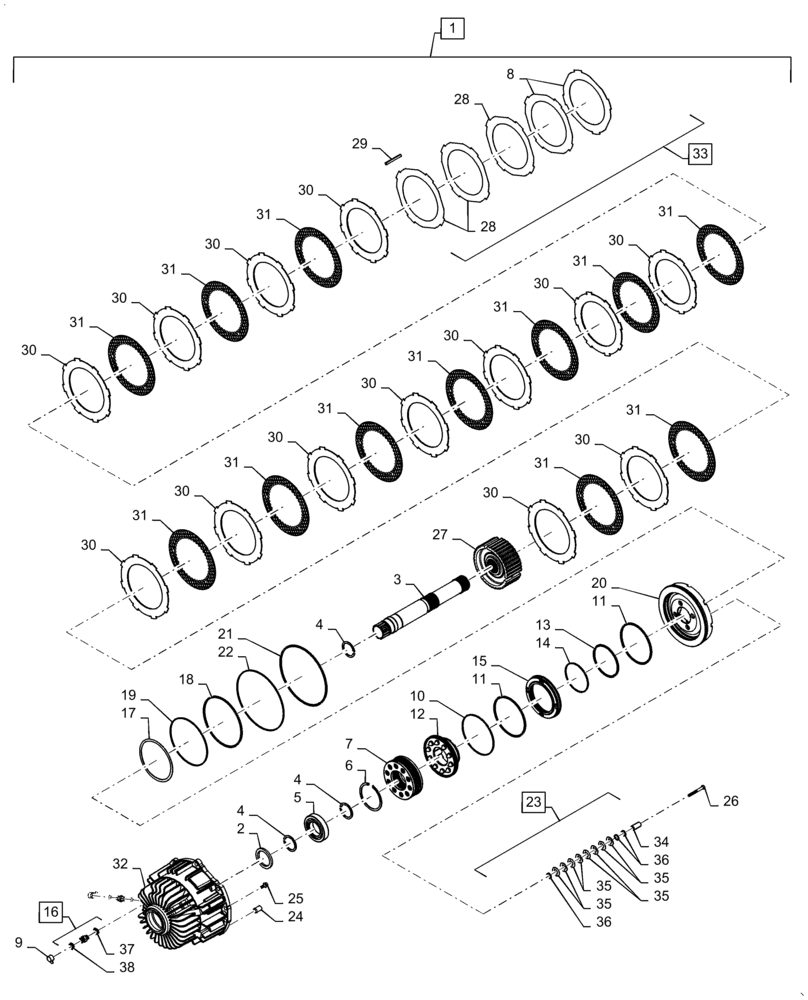

Схема запчастей Case IH 7140 - (33.202.AK) - BRAKE ASSY. (33) - BRAKES & CONTROLS
37
4
11
6
31
27
13
29
31
14
31
31
31
30
35
2
30
9
35
25
30
34
12
30
3
30
4
28
30
31
30
31
36
11
30
23
31
31
22
5
31
30
26
30
35
30
20
18
30
15
1
35
7
38
21
4
8
19
33
24
28
30
17
31
31
36
32
16
10

Артикул

Название

Примечание

Количество

1

84224774

BRAKE

Assy, Incl 2 - 38

1шт.

1

84224774R

REMAN-BRAKE ASSY.

1шт.

1

84224774C

CORE-BRAKE ASSY.

Return Number

1шт.

2

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

Shift Rails

1шт.

3

84224193

SHAFT

Drive

1шт.

4

358059R1

SNAP RING

Retaining

3шт.

5

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

1шт.

6

101-21393

SNAP RING,#393, 4.234", Int

1шт.

7

1997999C2

SPRING

Compression

1шт.

8

193086A1

SHIM

End, 1.062mm, Incl with 33

2шт.

9

189562A1

PLUG

Cap

2шт.

10

1997618C4

SEAL,151.1mm ID x 155mm OD x 3.3mm Thk

Piston Outer

1шт.

11

238-7162

O-RING,0.103" Thk x 5.737" ID, -162, Cl 7, 75 Duro

2шт.

12

1997400C1

PISTON

Park Brake

1шт.

13

238-7157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

1шт.

14

1997619C4

RING,108.2mm ID x 112mm OD x 3.3mm Thk

Piston Seal

1шт.

15

1997399C1

PISTON

Reaction

1шт.

16

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 37, 38

2шт.

17

102-22625

SNAP RING,#625, 6.474", Int, Spiral

1шт.

18

238-7168

O-RING,0.103" Thk x 7.237" ID, -168, Cl 7, 75 Duro

1шт.

19

1997617C4

SEAL,179.2mm ID x 183mm OD x 3.3mm Thk

1шт.

20

1997398C1

PISTON

Service Brake

1шт.

21

238-7174

O-RING,0.103" Thk x 8.737" ID, -174, Cl 7, 75 Duro

1шт.

22

1997616C4

SEAL,227.1mm ID x 231mm OD x 3.3mm Thk

1шт.

23

1997900C1

SPRING

Belleville, Incl 34 - 36

4шт.

24

837-16030

DOWEL,16mm OD x 30mm L

2шт.

25

87015865

BOLT

Bolt, Flange, M8 x 20mm

4шт.

26

828-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

4шт.

27

1997394C1

HUB

Brake

1шт.

28

196186A1

SHIM

Brake, 0.53mm, Incl with 33

3шт.

29

221254A1

SPACER

Brake Separator, Incl with 33

8шт.

30

1285974C1

BRAKE PLATE

Master Clutch Separator

13шт.

31

84159174

CLUTCH PLATE,161.8mm ID x 228.5mm OD x 2.85mm Thk

Friction Master, HD

12шт.

31

1997959C1

BRAKE DISC

Friction Master, Standard Duty Option

12шт.

32

1997395C1

HOUSING

Brake

1шт.

33

221598A1

SHIM KIT

Brake Assy, Incl 8, 28, 29

1шт.

34

1997899C1

SPACER

Spring

1шт.

35

1997912C1

BELLEVILLE WASHER

Spring Assy

8шт.

36

100-1462

SNAP RING,#62, Ext

3шт.

37

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 41
