(33.110.AT[03]) - BRAKE LINE HYDRAULIC MANIFOLD

Запчасти Case IH 7140 (33.110.AT[03]) - BRAKE LINE HYDRAULIC MANIFOLD (33) - BRAKES & CONTROLS

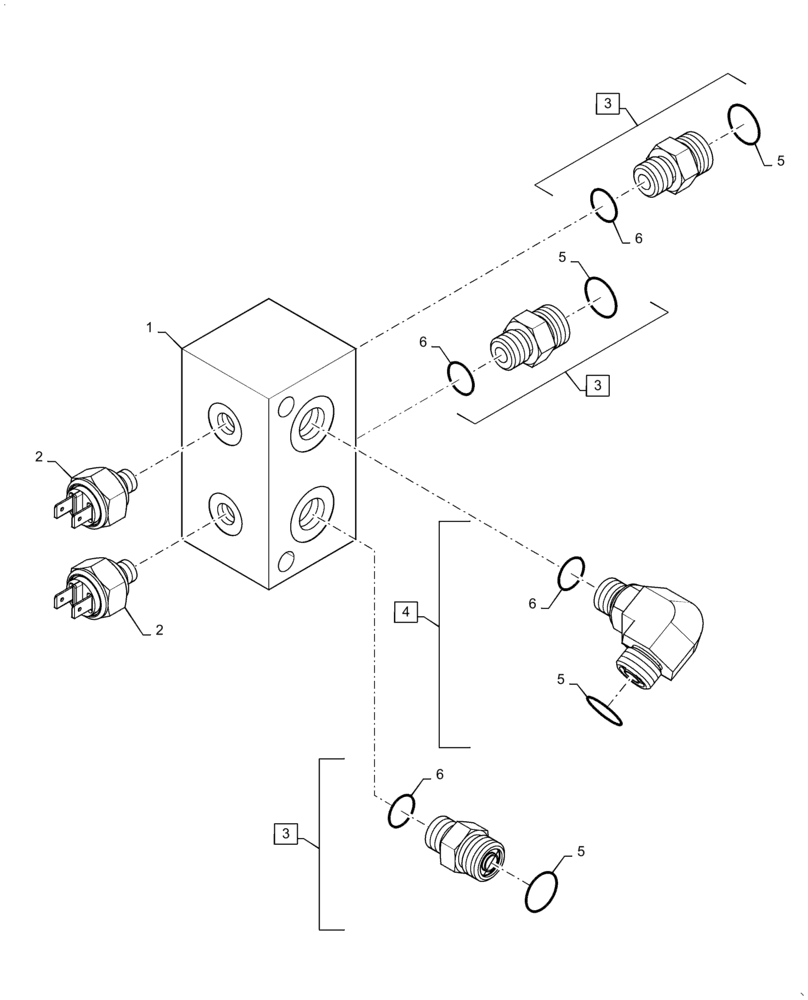

Схема запчастей Case IH 7140 - (33.110.AT[03]) - BRAKE LINE HYDRAULIC MANIFOLD (33) - BRAKES & CONTROLS
6
5
3
1
2
3
6
4
2
6
6
5
5
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47671766

HYDRAULIC MANIFOLD

Brake Line

1шт.

2

47527227

PRESSURE SWITCH

Hydraulic

2шт.

3

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 5, 6

3шт.

4

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 5, 6

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

Выбрано товаров: 6
