Запчасти Case IH 7140 (29.300.AD[03]) - HYDRAULIC LINE, HIGH SPEED GROUND DRIVE - MOTOR (29) - HYDROSTATIC DRIVE

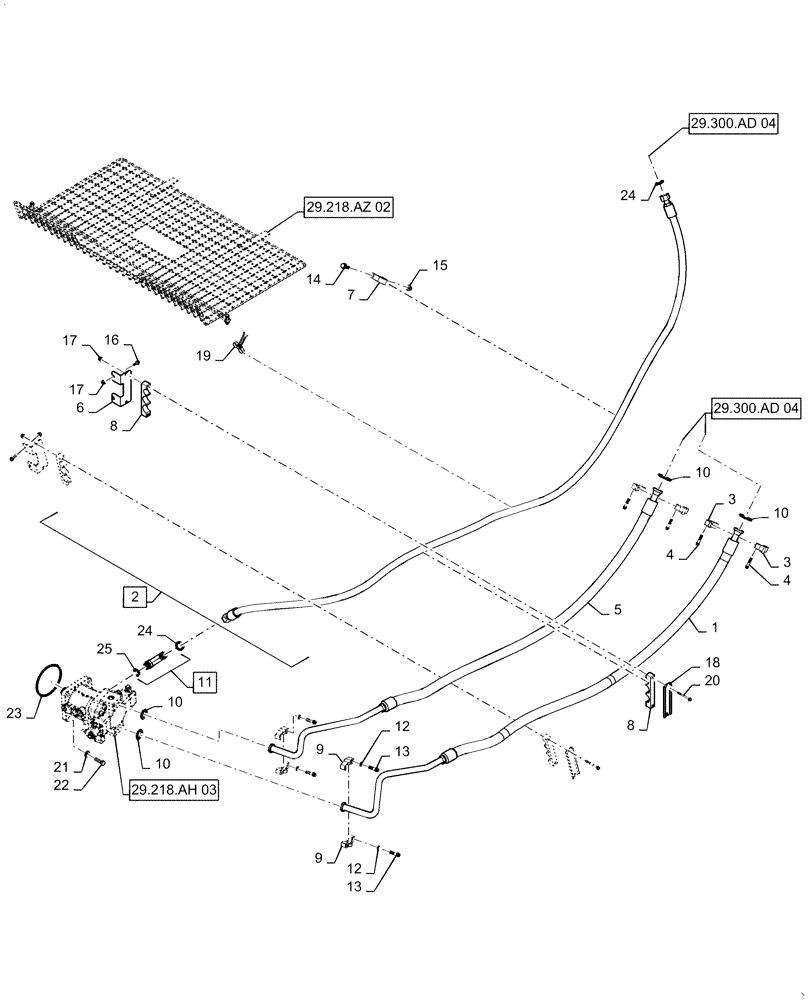

Схема запчастей Case IH 7140 - (29.300.AD[03]) - HYDRAULIC LINE, HIGH SPEED GROUND DRIVE - MOTOR (29) - HYDROSTATIC DRIVE
7
3
15
5
11
3
12
13
1
19
10
23
12
2
21
18
16
9
22
10
17
8
4
29.218.az 02
25
24
14
9
13
4
29.300.ad 04
8
29.300.ad 04
20
17
10
10
29.218.ah 03
6
24

Артикул

Название

Примечание

Количество

1

47671614

HYDRAULIC HOSE

Reverse Hydrostatic

1шт.

2

47832828

HYDRAULIC HOSE

Drain, Incl 24

1шт.

3

86980733

CLAMP

Split Flange, Code 62, 32mm

8шт.

4

87026652

12 PT SCREW,Flg, M12 x 1.75 x 50mm, Cl 12.9

8шт.

5

47671612

TUBE

Forward Hydrostatic

1шт.

6

47695631

SUPPORT

Hydro Clamp, Middle

2шт.

7

87024765

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

47374382

HOSE CLAMP

Hydro

4шт.

9

87680118

CLAMP

Split Flange, Code 62, 32mm

4шт.

10

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

4шт.

11

84390798

90 ELBOW

Incl 25

1шт.

12

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

8шт.

13

87680393

12 PT SCREW,M14 x 2 x 45mm, Cl 12.9

8шт.

14

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

15

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

18

87727969

BRACKET

Clamp Back-Up Channel

2шт.

19

84386243

CLAMP,489mm L

1шт.

20

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

Flange, M8 x 90mm

4шт.

21

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

22

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

23

238-7167

O-RING,0.103" Thk x 6.987" ID, -167, Cl 7, 75 Duro

1шт.

24

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

25

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 25
