Запчасти Case IH 7140 (29.218.AO[03]) - VAR 425442, 425443 - HYDROSTATIC PUMP, 110CC (29) - HYDROSTATIC DRIVE

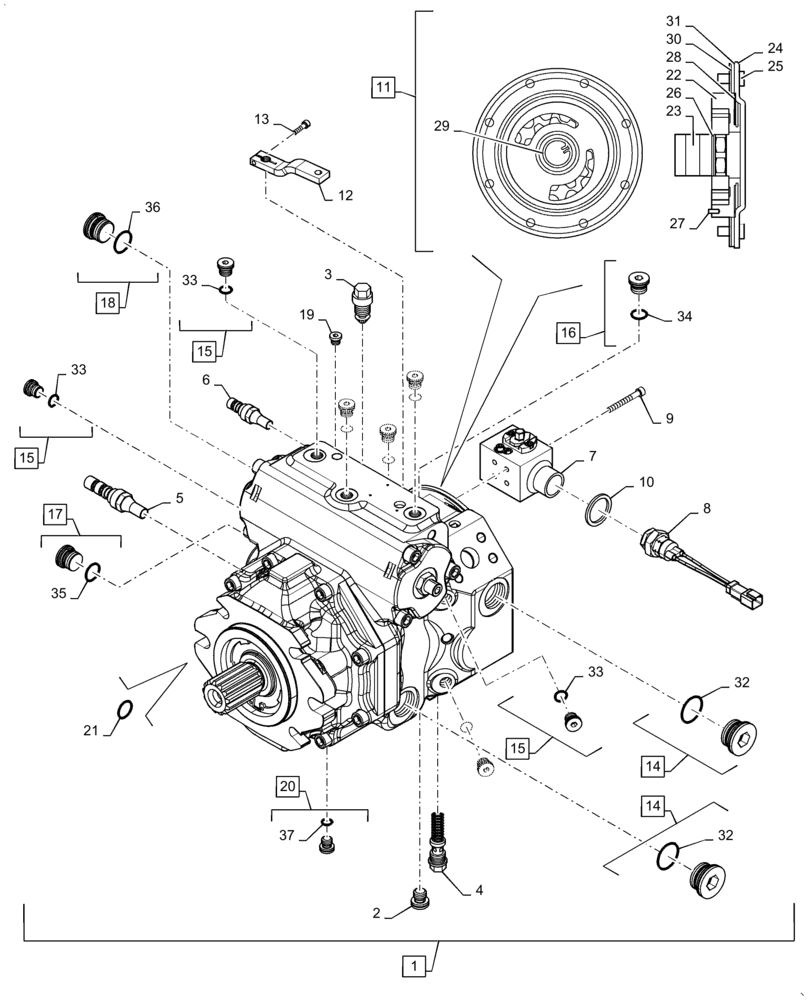

Схема запчастей Case IH 7140 - (29.218.AO[03]) - VAR 425442, 425443 - HYDROSTATIC PUMP, 110CC (29) - HYDROSTATIC DRIVE
28
35
14
26
11
5
25
15
8
14
20
29
13
3
32
31
19
21
15
24
1
2
18
6
33
34
10
12
9
36
32
7
33
17
4
16
22
33
30
27
23
15
37

Артикул

Название

Примечание

Количество

1

47721338

HYDROSTATIC PUMP

110CC, Incl 2 - 37

1шт.

2

47838436

VALVE PRESSURE RELIE

490 BAR

1шт.

3

47838442

VALVE PRESSURE RELIE

420 BAR

1шт.

4

47838443

VALVE PRESSURE RELIE

Charge

1шт.

5

47410584

VALVE

Pressure Override Control

1шт.

6

47838433

VALVE

Shuttle

1шт.

7

47838419

CONTROLLER

Manual, Hydro Pump

1шт.

8

47838430

NEUTRAL START SWITCH

Mechanical

1шт.

9

356464

HEX SOC SCREW,M6 x 50mm, Cl 8.8

4шт.

10

84389763

GASKET

Control Module

1шт.

11

47838445

HYDRAULIC PUMP

Charge, Incl 22 - 31

1шт.

12

47826443

LEVER

Control

1шт.

13

14304321

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.

14

86583482

HEX SOCKET PLUG,M33 x 2

Incl 32

2шт.

15

86598044

PLUG,Hex, M14 x 1.5 ORB

Incl 33

8шт.

16

86598046

PLUG,M18 x 1.5 ORB

Incl 34

2шт.

17

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

Incl 35

1шт.

18

86598048

PLUG,Hex Soc, M27 x 2, ORB

Incl 36

1шт.

19

10118511

PLUG,M10 x 1

M10 x 1mm

1шт.

20

86598043

PLUG,M12 x 1.5 ORB

Incl 37

1шт.

21

47838444

SEAL KIT

Pump Front

1шт.

22

47853682

GEAR SET

Internal, Charge Pump

1шт.

23

47853672

SHAFT

Stub

1шт.

24

47853673

COVER

Charge Pump

1шт.

25

47853676

SET SCREW

M10 x 25mm

8шт.

26

47853677

CIRCLIP

Retaining

1шт.

27

47853678

PIN

Dowel

1шт.

28

47853679

O-RING

Sealing

2шт.

29

47853680

SNAP RING

Center

1шт.

30

47853681

RING

Seal

1шт.

31

47849484

PLATE

Sandwich

1шт.

32

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

33

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

8шт.

34

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

35

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

36

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

37

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 37
