Запчасти Case IH 7140 (29.218.AH[02]) - VAR - 425440, 425441 - HYDROSTATIC MOTOR, VARIABLE SPEED, 105CC - 70CC, (CONT.) (29) - HYDROSTATIC DRIVE

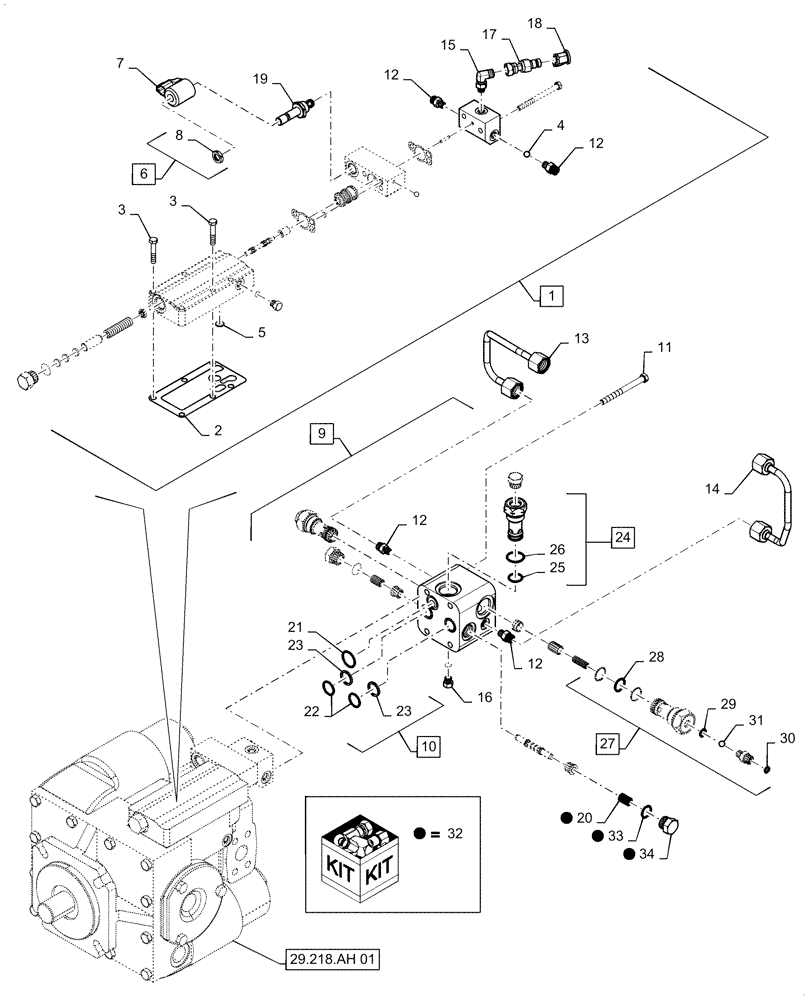

Схема запчастей Case IH 7140 - (29.218.AH[02]) - VAR - 425440, 425441 - HYDROSTATIC MOTOR, VARIABLE SPEED, 105CC - 70CC, (CONT.) (29) - HYDROSTATIC DRIVE
29.218.ah 01
14
23
10
12
16
17
30
34
22
25
19
28
29
32
5
4
23
32
6
27
21
33
1
20
2
3
13
32
18
3
11
8
32
12
12
26
7
12
24
31
15
9
32

Артикул

Название

Примечание

Количество

1

47808294

CONTROL VALVE

Motor, Incl 2 - 8, 12, 15, 17 - 19

1шт.

2

145337C1

GASKET

Pressure Response Valve

1шт.

3

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

6шт.

4

87016924

BALL,9.53mm OD, Gr 24

1шт.

5

255843A1

PORT

Control Valve Orifice

1шт.

6

86547648

CARTRIDGE

Hydraulic Solenoid Valve, Incl 8, 19

1шт.

7

47811379

COIL

12V Integral With Diode

1шт.

8

195683A1

JAM NUT,1/2"-20

Solenoid Coil

1шт.

9

193646A2

BLOCK

Motor Relief Manifold, Incl 10, 12, 16, 21 - 35

1шт.

10

140747C92

SEAL KIT

Valve Block, Incl 21 - 23

1шт.

11

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

12

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Straight

4шт.

13

84600417

HYD TUBE

Motor, Lower

1шт.

14

47807615

HYD TUBE

Motor, Upper

1шт.

15

87681199

90 ELBOW

Hydraulic Fitting

1шт.

16

9672438

PLUG,7/16" - 20 ORB

1шт.

17

190117A1

COUPLING

Diagnostic, 1/4" ORFS

1шт.

18

H434163

DUST CAP

Diagnostic Coupler

1шт.

19

86547660

SEAL KIT

Solenoid Valve

1шт.

20

145560C1

SPRING

Shuttle Valve

1шт.

21

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

631458C1

RING

Back-Up

2шт.

24

140761C1

VALVE PRESSURE RELIE

Low, Incl 25, 26

1шт.

25

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

26

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

27

193647A1

VALVE PRESSURE RELIE

Feathering, Incl 28 - 31

1шт.

28

393885R92

SEAL KIT

Feathering Valve

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

211-1008

BALL,1/4" Dia

1шт.

32

145559C91

KIT

Shuttle Valve, Incl 20, 33, 34

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

1шт.

Выбрано товаров: 34
