Запчасти Case IH 7140 (29.218.AE) - TRANSMISSION RELEASE VALVE (29) - HYDROSTATIC DRIVE

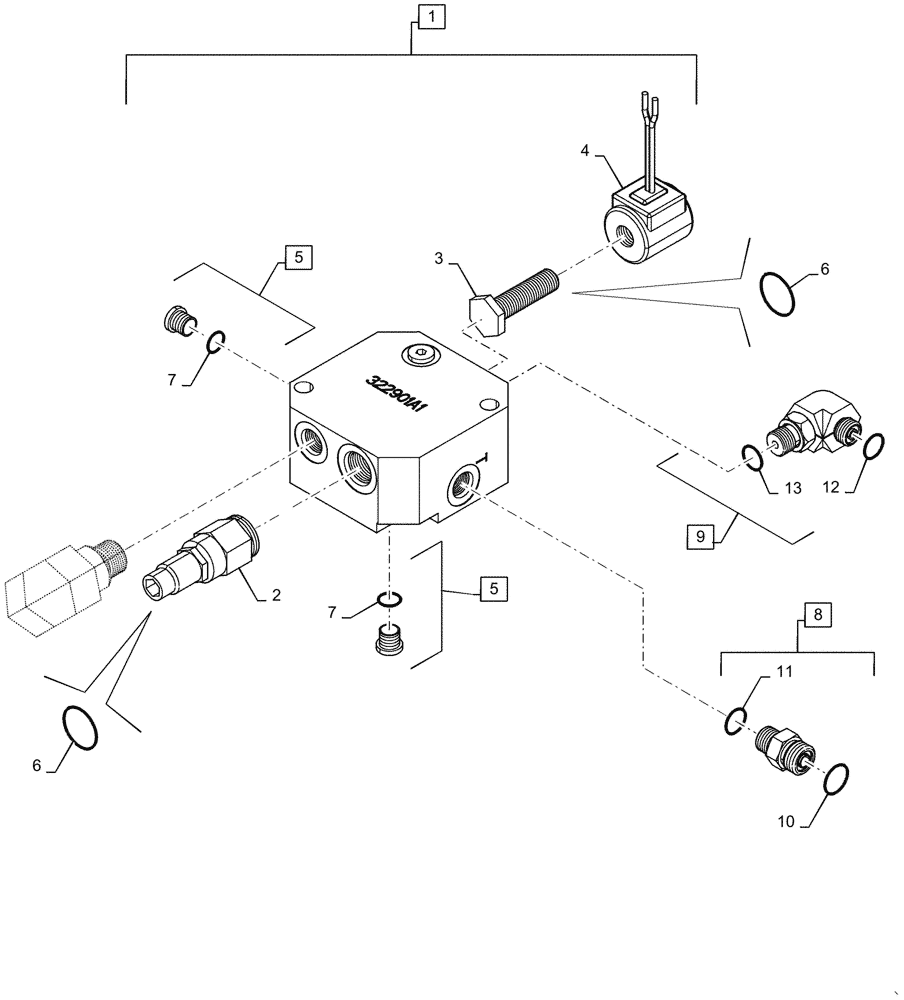

Схема запчастей Case IH 7140 - (29.218.AE) - TRANSMISSION RELEASE VALVE (29) - HYDROSTATIC DRIVE
12
1
11
9
6
7
3
2
5
13
5
7
4
6
8
10

Артикул

Название

Примечание

Количество

1

48028961

VALVE, PRESSURE CONT

Transmission Release, Incl 2 - 5, 7

1шт.

2

408731A1

VALVE, PRESSURE RELI

Relief

1шт.

3

408733A1

SOLENOID

Valve

1шт.

4

237130A1

COIL

Solenoid Valve

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl 7

4шт.

6

408734A1

PACKAGE,SERVICE

Relief Valve/Solenoid Valve Seal Kit

1шт.

7

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

8

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 10 - 11

1шт.

9

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 12 -13

2шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

13

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

Выбрано товаров: 13
