Запчасти Case IH 7140 (21.114.AL[03]) - VAR - 425442, 425443 - TRANSMISSION, REAR, SOLENOID VALVE, HIGH SPEED (21) - TRANSMISSION

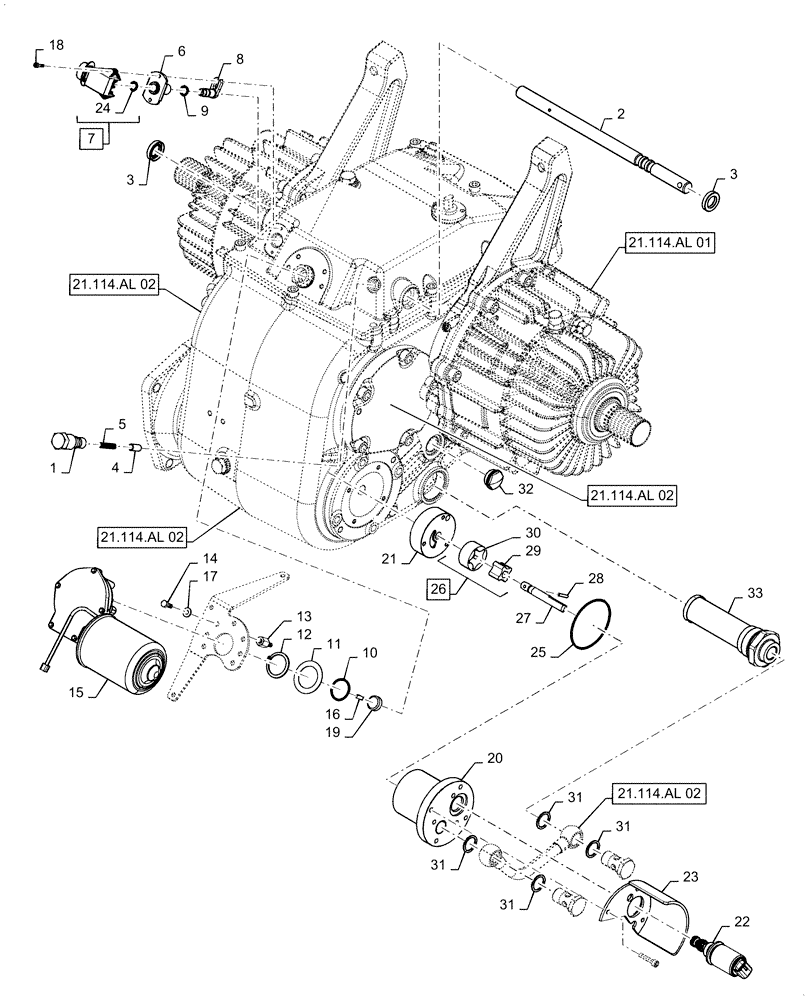

Схема запчастей Case IH 7140 - (21.114.AL[03]) - VAR - 425442, 425443 - TRANSMISSION, REAR, SOLENOID VALVE, HIGH SPEED (21) - TRANSMISSION
21.114.al 01
10
5
29
31
9
3
15
25
11
30
1
27
31
32
17
3
16
12
8
19
28
20
13
4
31
24
23
6
26
22
18
31
2
21
7
33
14
21.114.al 02
21.114.al 02
21.114.al 02
21.114.al 02

Артикул

Название

Примечание

Количество

1

84376065

ADJUSTER

Solenoid

1шт.

2

84338840

ROD

Adjuster, 366mm L

1шт.

3

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

Shifter Rail

2шт.

4

5166394

PAWL,10mm OD x 25mm L

1шт.

5

5166393

SPRING,8mm OD x 43mm L

Shift

1шт.

6

47385928

FLANGE

Solenoid

1шт.

7

84340074

SENSOR

Angle Position, Incl 24

1шт.

8

84381985

LEVER

Lever

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

84021955

O-RING,3mm Thk x 29.2mm ID, 90 Duro

1шт.

11

442245

WASHER,35mm ID x 51.5mm OD x 0.8mm Thk

1шт.

12

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

13

84071865

SCREW,Hex, M6 x 15mm

4шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

17шт.

15

84807563

ELECTRIC MOTOR

DC, Shift

1шт.

16

84041731

WOODRUFF KEY,5mm W x 6.5mm H x 16mm L

1шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

7шт.

18

86624126

HEX SOC SCREW,M4 x 16mm, Cl 8.8

3шт.

19

396661

PLUG,22mm OD

Shift Shaft

1шт.

20

47554209

HYDRAULIC PUMP

Jet, Inner

1шт.

21

47554206

HYDRAULIC PUMP

Jet, Outer

1шт.

22

47555231

SOLENOID VALVE

Shift

1шт.

23

47614564

PROTECTOR

Kit

1шт.

24

84126835

O-RING,1.3mm Thk x 9.5mm ID, 70 Duro

1шт.

25

18438

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

26

5167911

ROTOR

Incl 29, 30

1шт.

27

47546809

SHAFT

Pump Drive, 90mm L

1шт.

28

47554351

NEEDLE BEARING

Pump Drive Shaft

1шт.

29

5167914

ROTOR

Inner

1шт.

30

5167915

ROTOR

Outer

1шт.

31

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

4шт.

32

84071596

PLASTIC PLUG,M31 x 19mm

Level Gauge Indicator

1шт.

33

47654660

FILTER STRAINER,M22 x 1.5, 145mm L, 60 Micron

Hydraulic Tube

1шт.

Выбрано товаров: 33
