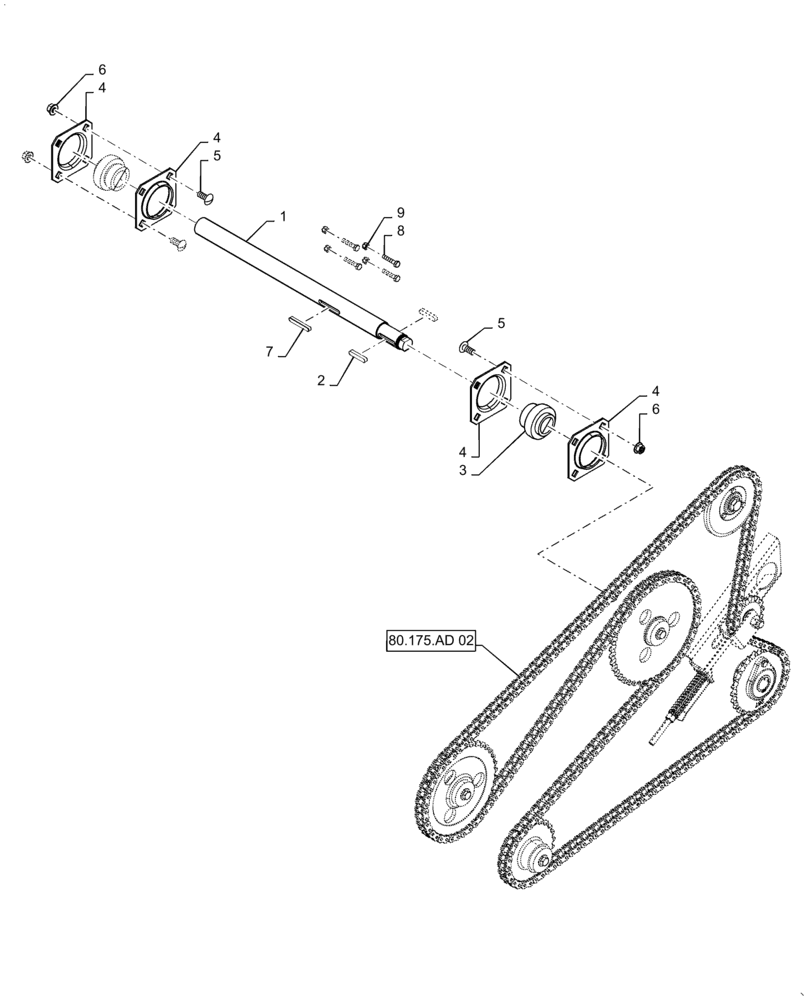

Запчасти Case IH 7140 (80.175.AD[01]) - UNLOADING & FLOW CHAIN DRIVE (80) - CROP STORAGE/UNLOADING

1

84588583

JACKSHAFT

Unloader Drive

1шт.

2

170012

KEY,8mm W x 50mm OAL

2шт.

3

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

2шт.

4

1307583C1

FLANGED BEARING

80mm, 4 Bolt

4шт.

5

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

8шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

7

323190

KEY,10mm x 8mm x 63mm

1шт.

8

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

5шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.
