Запчасти Case IH 7140 (80.101.AP[01]) - VAR - 722630 - GRAIN ELEVATOR, STANDARD WEAR (80) - CROP STORAGE/UNLOADING

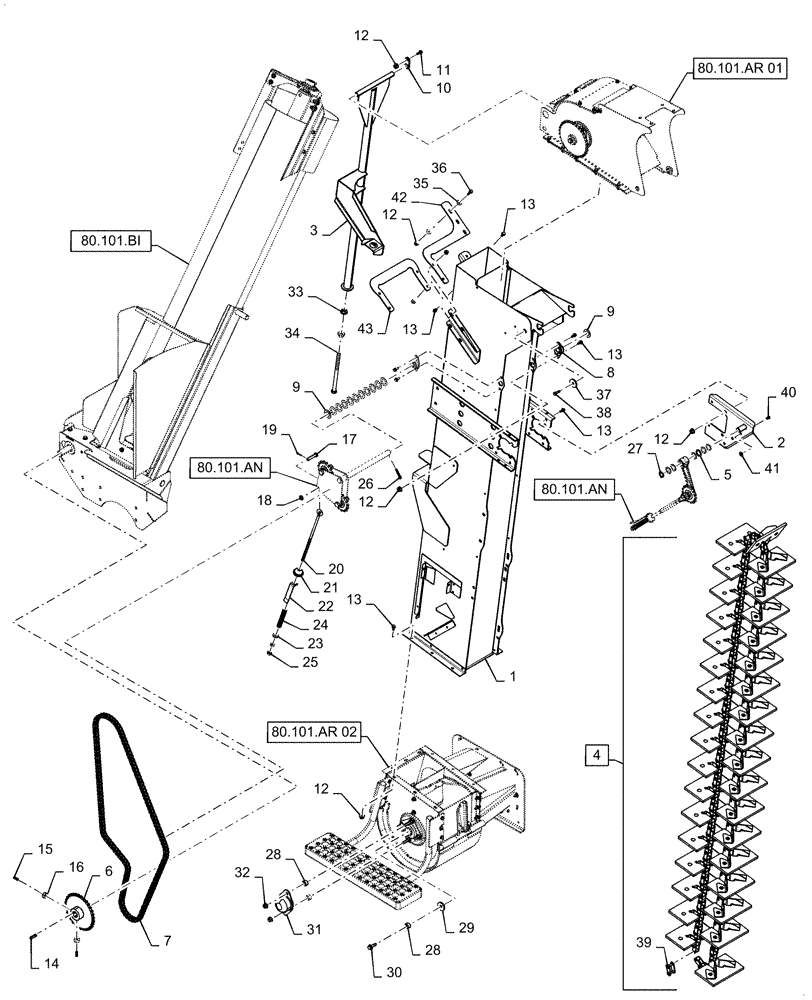

Схема запчастей Case IH 7140 - (80.101.AP[01]) - VAR - 722630 - GRAIN ELEVATOR, STANDARD WEAR (80) - CROP STORAGE/UNLOADING
80.101.ar 02
30
38
19
16
8
40
11
23
41
15
28
26
34
37
12
42
13
29
22
12
12
32
1
5
13
43
6
33
2
39
12
12
9
36
35
27
7
13
18
9
13
17
25
10
24
28
21
20
4
31
13
80.101.ar 01
14
3
80.101.bi
80.101.an
80.101.an

Артикул

Название

Примечание

Количество

1

47880572

HOUSING

Clean Grain Elevator, Standard Wear

1шт.

2

47879528

SUPPORT

Tailings Idler

1шт.

3

47880277

SUPPORT

Elevator Head

1шт.

4

47801753

CONVEYOR

Clean Grain, Incl 39

1шт.

4

87717729

LINK,41.4mm Pitch

Not Shown

1шт.

5

140103

WASHER,26mm ID x 38mm OD x 1mm Thk

6шт.

6

47878653

SPROCKET

Elevator Drive, 32T

1шт.

7

47709870

CHAIN,Roller, 144 Links x 19.05mm = 2743.2mm L

Clean Grain Elevator Drive

1шт.

8

682452

FLANGED BEARING,25.46mm ID

2шт.

9

86624167

WASHER,25.81mm ID x 44.45mm OD x 0.91mm Thk

12шт.

10

84134664

BRACKET

Compression Column Lock

1шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

27шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

23шт.

14

354775

KEY,10mm x 8mm x 40mm

1шт.

15

300484

SET SCREW

M10 x 25mm

3шт.

16

100016

NUT,M10 x 1.5, Cl 8

3шт.

17

84018348

CLEVIS PIN,M12 x 60mm OAL

1шт.

18

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

19

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

20

84536408

EYEBOLT

Elevator Drive Idler

1шт.

21

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

1шт.

22

84532492

INDICATOR

Tension

1шт.

23

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

24

87719434

COIL SPRING

Compression

1шт.

25

9706685

NUT,M12 x 1.75, Cl 8

2шт.

26

9515820

COTTER PIN,M10.5 x 24mm OD x 3mm Thk

1шт.

27

370002

CIRCLIP,M25, External

1шт.

28

168368

SPACER,13.4mm ID x 25.4mm OD x 11.1mm OAL

3шт.

29

47885568

WASHER

13.5mm x 55mm x 12mm

1шт.

30

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

31

86996082

COVER

Boot Shaft

1шт.

32

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

33

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

34

389034

BOLT,Hex, M16 x 2 x 251mm, Cl 8.8, Full Thd

1шт.

35

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

6шт.

36

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

3шт.

37

47459749

WASHER

9mm x 35mm x 6mm

2шт.

38

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

39

87282356

CONNECTING LINK

CA550, Includes Locking Pin

1шт.

40

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

41

84359103

NUT,Push On, M8

3шт.

42

47891084

BRACKET

Grain Tank Gusset, Upper

1шт.

43

47891082

BRACKET

Grain Tank Gusset, Lower

1шт.

Выбрано товаров: 44
