Запчасти Case IH 7140 (73.420.AC[01]) - VAR - 425533, 425460 - DELUXE CHAFF SPREADER ASSY (73) - RESIDUE HANDLING

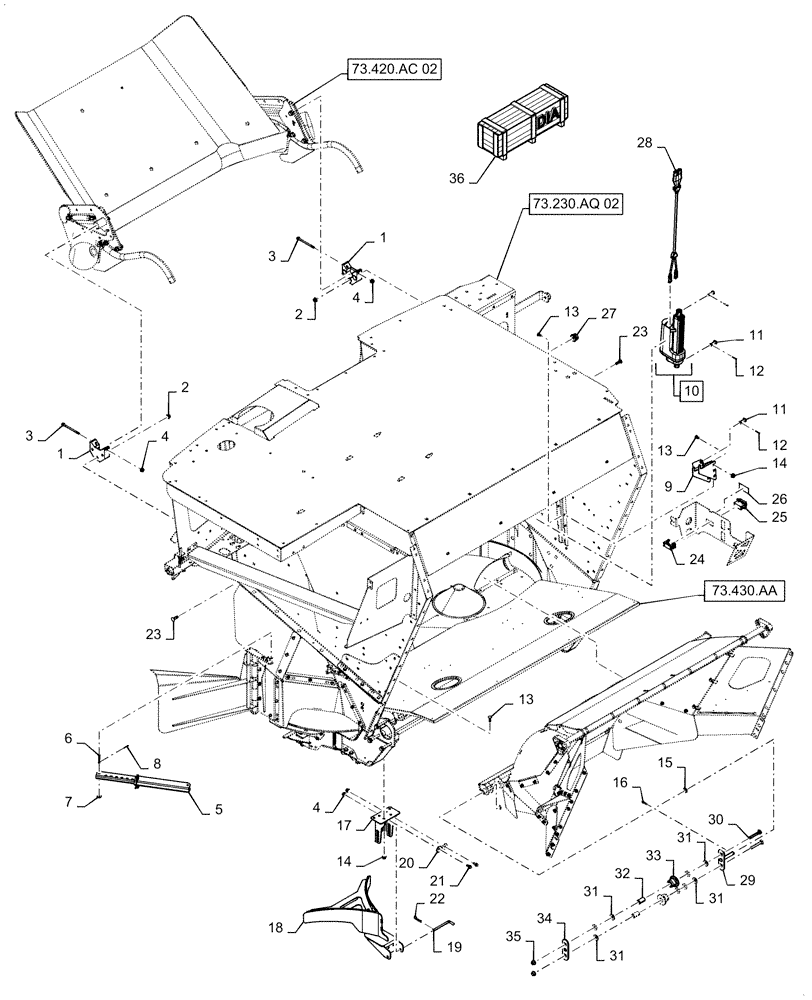

Схема запчастей Case IH 7140 - (73.420.AC[01]) - VAR - 425533, 425460 - DELUXE CHAFF SPREADER ASSY (73) - RESIDUE HANDLING
73.230.aq 02
27
13
12
1
5
29
36
3
31
31
14
18
10
11
13
4
35
4
34
13
30
8
2
6
9
31
7
21
25
3
28
12
31
11
4
14
17
16
1
22
20
23
23
32
33
2
24
15
19
26
73.430.aa
73.420.ac 02

Артикул

Название

Примечание

Количество

1

47478653

BUSHING

Chute Support

2шт.

2

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

3

86705432

FLANGE BOLT,Hex, M8 x 120mm, Cl 10.9

2шт.

4

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

5

47484392

ADJUSTER

3 Sided Chute, VAR. 425460

2шт.

5

87347281

ACTUATOR

Adjustment, VAR. 425533

2шт.

6

439-1432

HEADED PIN,1/4" x 2", G2

4шт.

7

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

4шт.

8

300408

COTTER PIN,M3.2 x 14mm OAL

4шт.

9

47603492

SUPPORT

Actuator

1шт.

10

47882341

ACTUATOR

Straw Door, Incl 28

1шт.

11

355518

PIN,M12 x 35

2шт.

12

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.

13

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

10шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

15

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

4шт.

16

394818

COTTER PIN,M5 x 25

2шт.

17

47794897

SUPPORT

Spread Deflector Mount

1шт.

18

47789855

DEFLECTOR

Center, Spread

1шт.

19

47608323

PIN

Spreader Support

1шт.

20

87374162

BUSHING,9mm ID x 35mm OD x 6mm L

2шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

22

586591R1

COTTER PIN

Spreader Pin

1шт.

23

87682393

CARRIAGE BOLT,M10 x 1.5 x 35mm, Cl 10.9

6шт.

24

86627352

CLAMP

Switch

1шт.

25

86627351

SWITCH, SIEVE ADJUST

Rocker

1шт.

26

47672817

DECAL

Windrow Chute

1шт.

27

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

28

47800247

CABLE

Actuator

1шт.

29

47820980

PIN

Roller Guide

1шт.

30

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

2шт.

31

87613260

WASHER,0.53" ID x 1.25" OD x 0.12" Thk

8шт.

32

436353

BUSHING,12.5mm ID x 22mm OD x 39mm OAL

2шт.

33

424230

BUSHING,Tapered Hat, 22.6mm ID x 40mm OD x 60mm OD x 38mm OAL

2шт.

34

47686415

PLATE

Roller Mount

1шт.

35

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

36

47794774

KIT

Manual to Active Spread Conversion, Inst Sheet 47794770

1шт.

Выбрано товаров: 37
