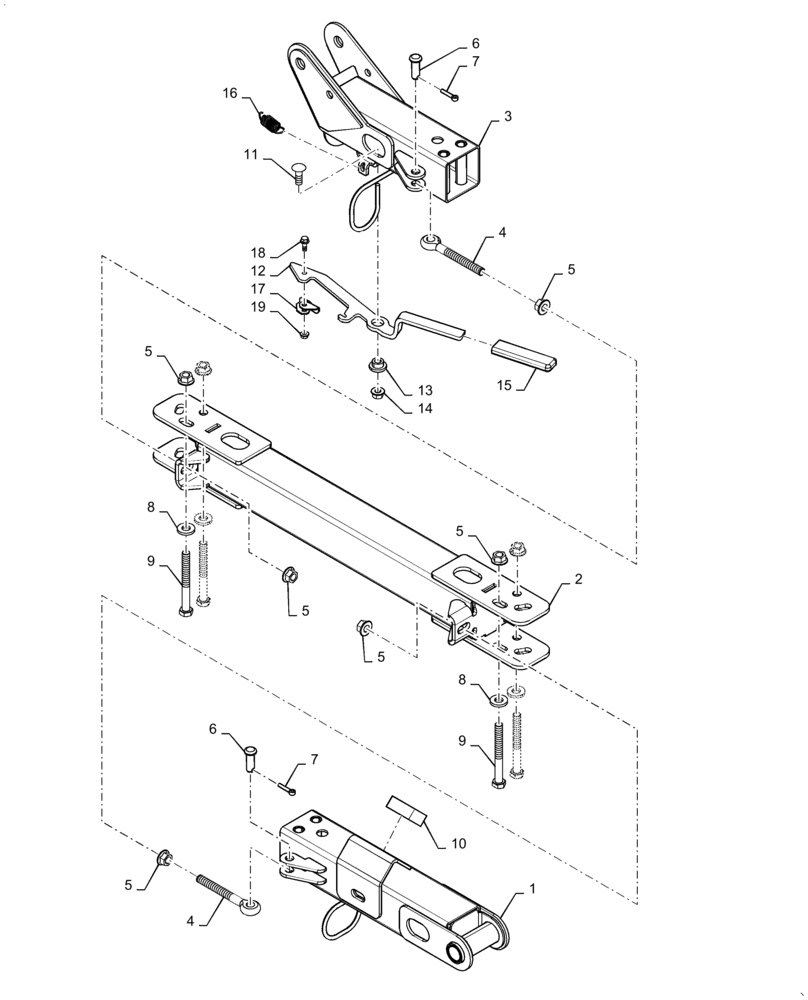

Запчасти Case IH 7140 (73.335.AB[03]) - VAR - 425459, 425460, 425533 - FRONT CHAFF SPREADER PIVOT ARM (73) - RESIDUE HANDLING

1

47722805

ARM

Front Spreader Pivot

1шт.

2

47720027

ARM

Front Spreader Pivot

1шт.

3

47760987

ARM

Spreader Adjustment

1шт.

4

84156112

EYEBOLT

Adjusting

2шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

6

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

2шт.

7

394818

COTTER PIN,M5 x 25

2шт.

8

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

9

9501756

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

4шт.

10

187884C1

SEALING STRIP,50mm L

Foam

1шт.

11

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

1шт.

12

47811340

BRACKET

Spreader Latch

1шт.

13

84231043

BUSHING,10.5mm ID x 27mm OD x 12mm Thk

Shoulder

1шт.

14

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

15

433741A1

GRIP

Sieve Adjust

1шт.

16

84198440

SPRING

Extension

1шт.

17

47820256

LATCH

Spreader Arm

1шт.

18

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

19

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

1шт.
