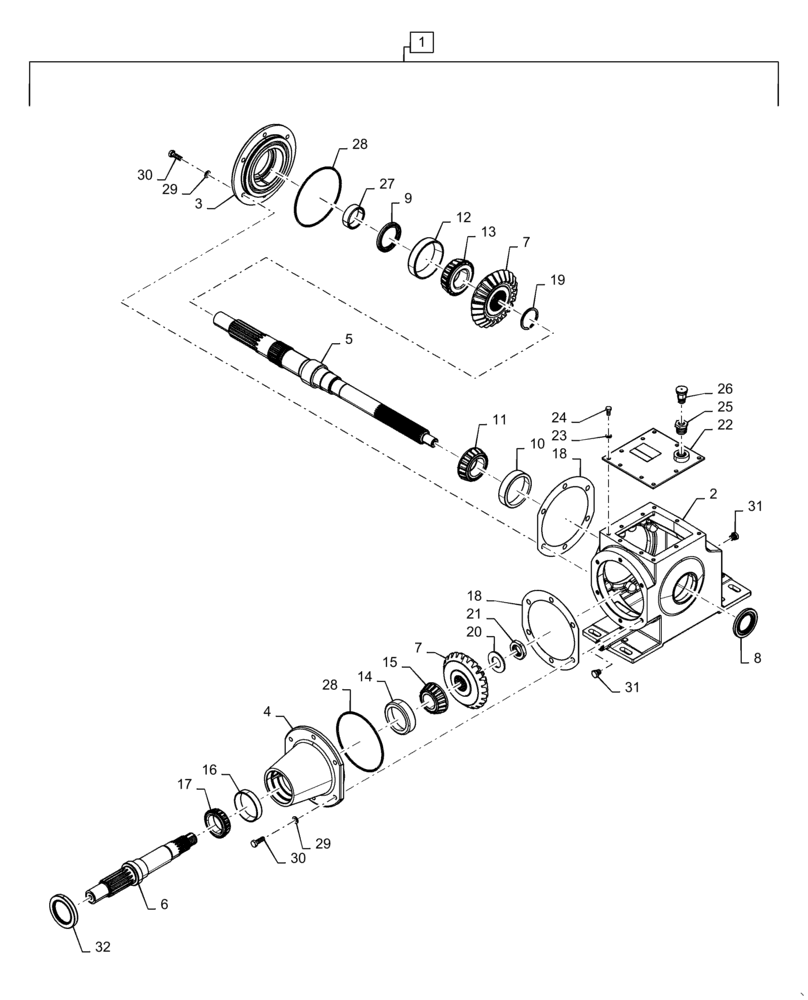

Запчасти Case IH 7140 (72.350.AI[02]) - CHOPPING UNIT GEARBOX (72) - SEPARATION

1

47609179

GEARBOX

Chopper, Incl 2 - 32

1шт.

2

84302604

HOUSING

Gearbox

1шт.

3

84302612

BEARING CARRIER

Input

1шт.

4

84473169

BEARING HOUSING

Output

1шт.

5

47748848

SHAFT

Drive, Input

1шт.

6

84473168

SHAFT

Drive

1шт.

7

84302610

GEAR SET

Bevel, 23/24T

1шт.

8

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

Shaft, Forward

1шт.

9

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

Shaft, Rear

1шт.

10

614054

BEARING CUP

Tapered Roller

1шт.

11

614053

BEARING CONE,50.8mm ID x 28.57mm W

1шт.

12

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

1шт.

13

87373412

BEARING CONE,50.8mm ID x 30.94mm W

1шт.

14

170254R1

BEARING, CUP

Tapered Roller

1шт.

15

170253R91

ROLLER BEARING

Tapered

1шт.

16

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

1шт.

17

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

1шт.

18

47800062

SHIM KIT

Gearbox

1шт.

19

1315284C1

PACKAGE

Snap Ring Service

1шт.

20

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

1шт.

21

47416459

NUT

Stake

1шт.

22

181281C1

COVER

Chopper Drive

1шт.

23

892-11008

LOCK WASHER,8mm ID

10шт.

24

87015743

BOLT,Hex, M8 x 16mm, Cl 10.9

10шт.

25

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

1шт.

26

84145402

FITTING

Lube

1шт.

27

47806645

SPACER

Drive Shaft

1шт.

28

14462281

O-RING,6.237" ID x 0.103" Width

2шт.

29

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

12шт.

30

87015734

BOLT,M25 x 2mm, External

12шт.

31

87013336

PLUG

Hex

2шт.

32

47416460

SEAL

Oil Shaft

1шт.
