Запчасти Case IH 7140 (55.512.AA[03]) - VAR - 425377 - RADIO, AM/FM/WB/BT/SAT (55) - ELECTRICAL SYSTEMS

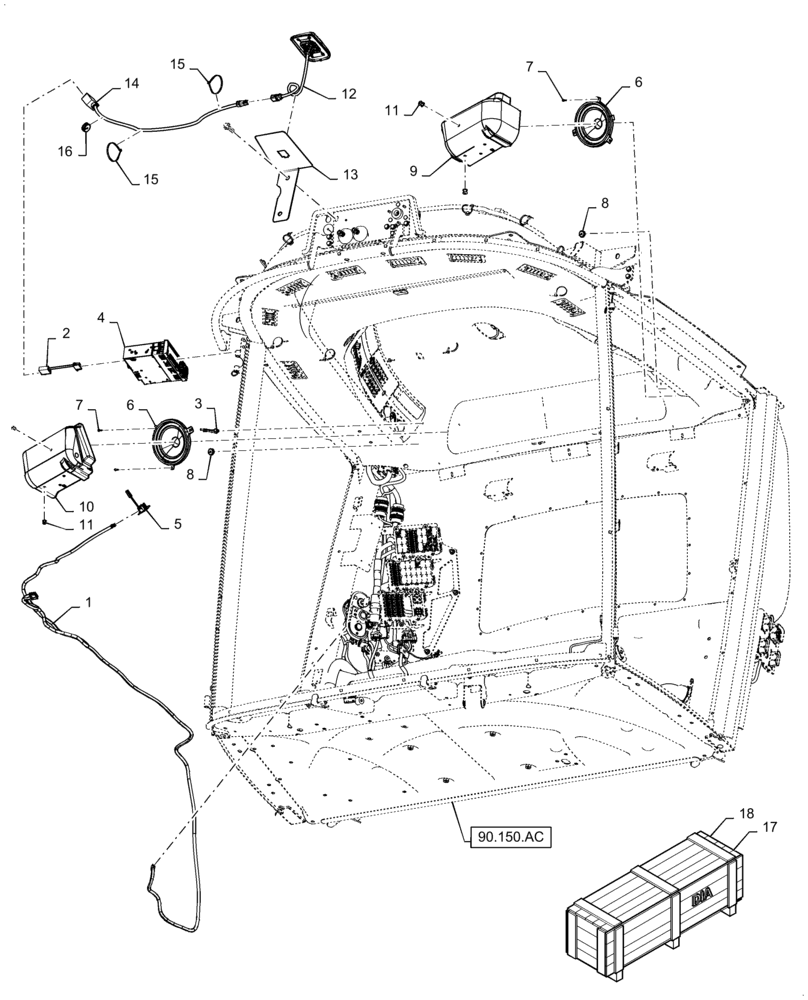

Схема запчастей Case IH 7140 - (55.512.AA[03]) - VAR - 425377 - RADIO, AM/FM/WB/BT/SAT (55) - ELECTRICAL SYSTEMS
11
15
12
18
13
5
15
7
7
8
10
17
9
16
90.150.ac
1
14
11
8
4
3
6
6
2

Артикул

Название

Примечание

Количество

1

47390902

WIRE HARNESS

Bluetooth Microphone and Auxiliary Input

1шт.

2

47400807

WIRE HARNESS

Radio Adapter

1шт.

3

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

1шт.

4

47474396

RADIO

AM/ FM/ WB/ CD/ BT/ USB/ XM

1шт.

5

84367388

MODULE

Bluetooth Microphone

1шт.

6

84602171

SPEAKER

Rear, Cab, 166mm OD x 74.9mm W

2шт.

7

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

6шт.

8

87373039

GROMMET

Rubber, 0.188" ID

2шт.

9

84601477

HOUSING

RH Speaker

1шт.

10

84601476

HOUSING

LH Speaker

1шт.

11

84407903

RIVET,Pop, 6mm OD x 9.5mm L

Speaker Housing

8шт.

12

47431090

ANTENNA

Satellite Radio

1шт.

13

47687085

BRACKET

Satellite Antenna

1шт.

14

47690872

WIRE HARNESS

XM Radio Antenna

1шт.

15

86566990

CABLE TIE,292mm OAL x 4.8mm W

6шт.

16

87036285

GROMMET,0.125" ID x 0.750" OD x 0.312" Thk

1шт.

17

47429207

SERVICE KIT

Bluetooth Radio, Incl 1 - 2, 5. Inst Sheet 47430030

1шт.

18

47637735

KIT

Bluetooth Microphone & Satelitte Antenna, Incl 1 - 2, 5, 12 - 16. Inst Sheet 47637734

1шт.

Выбрано товаров: 18
