Запчасти Case IH 7140 (55.302.AX) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS

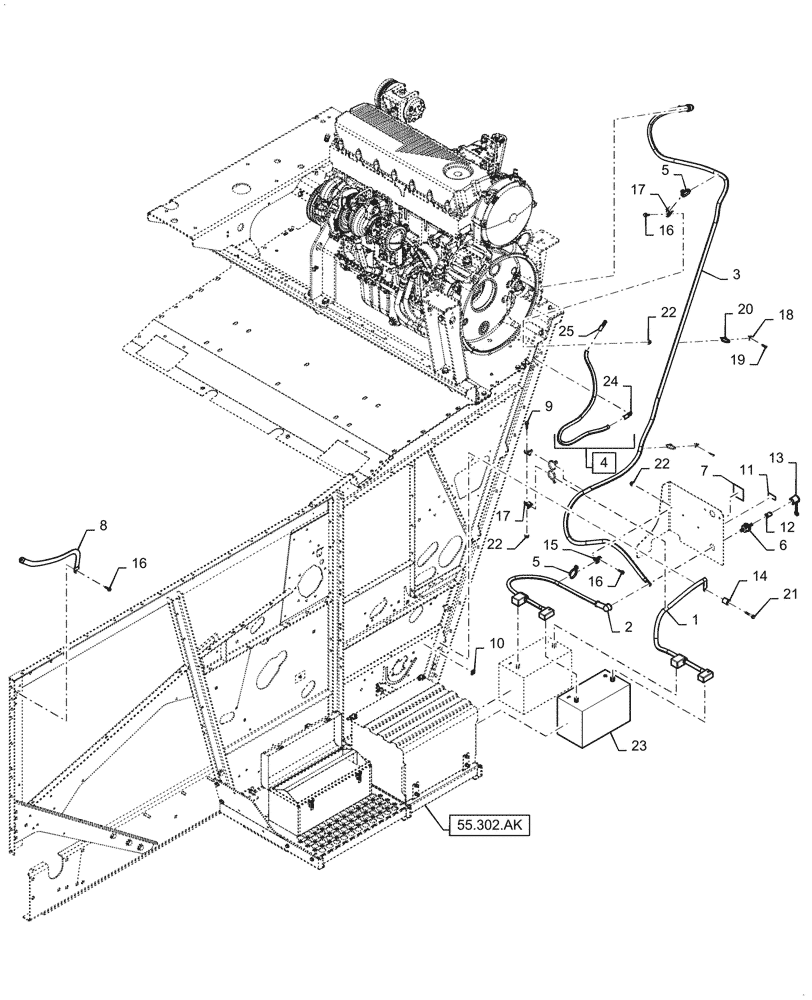

Схема запчастей Case IH 7140 - (55.302.AX) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS
55.302.ak
13
1
18
20
19
22
16
6
12
9
17
7
5
4
24
16
22
21
10
8
2
11
15
16
14
25
23
5
3
22
17

Артикул

Название

Примечание

Количество

1

47747442

CABLE

Battery, Negative

1шт.

2

47497225

CABLE

Battery, Positive

1шт.

3

47747443

CABLE

Starter, Positive

1шт.

4

84533617

GROUND CABLE

Engine Starter, Incl 24, 25

1шт.

5

529070

CABLE TIE,368.3mm L

6шт.

6

190158A1

BLOCK

Junction Box

1шт.

7

84364319

DECAL

Safety

1шт.

8

84422959

STRAP

Cab Ground

1шт.

9

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

10

87524725

DECAL

Jump Start Terminal

1шт.

11

87524728

DECAL

Jump Start Terminal, Positive

1шт.

12

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

Jump Start

1шт.

13

87539000

CAP

Battery Stud

1шт.

14

84128110

SPACER

Jumpstart Ground Boss

1шт.

15

47582709

Battery Cable

MOUNT

2шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

17

84474186

BASE

Tie

4шт.

18

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

19

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

20

86566989

CABLE TIE,208mm L

4шт.

21

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

23

BMF31GW

WET BATTERY

Group 31

2шт.

24

84479150

TERMINAL

Battery

1шт.

25

84479051

TERMINAL

Battery

1шт.

Выбрано товаров: 25
