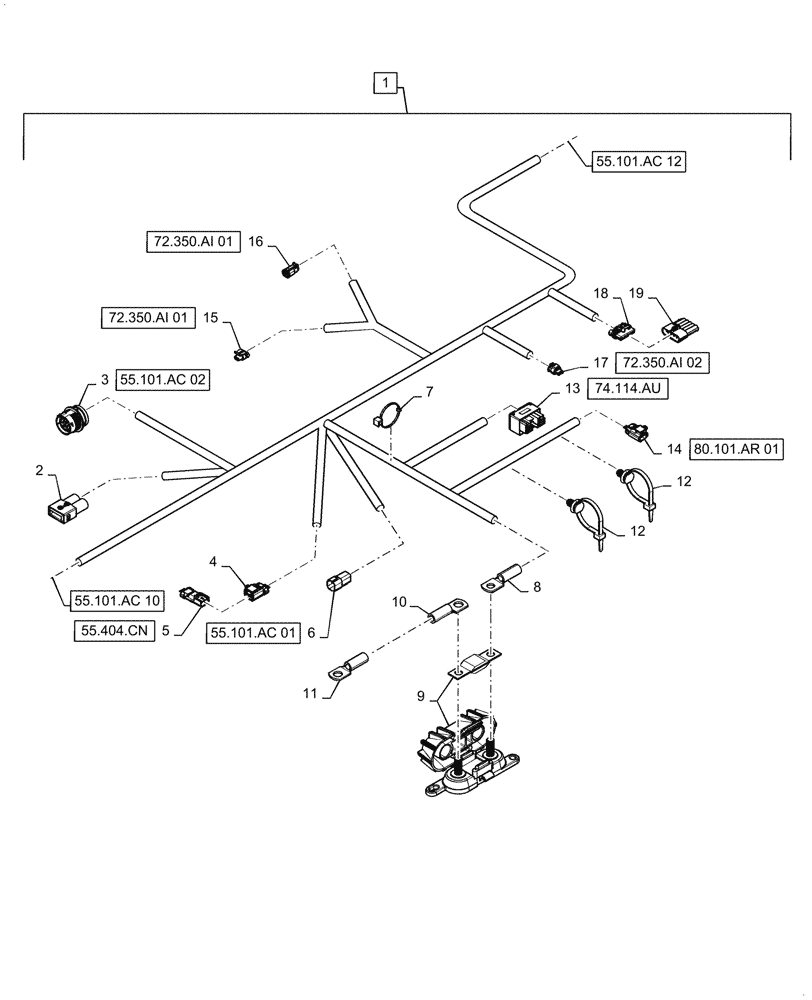

Запчасти Case IH 7140 (55.101.AC[11]) - WIRE HARNESS, LEFT MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47985888

WIRE HARNESS

Left Main, Incl 2 - 19

1шт.

2

84247654

FUSE HOLDER

Rotor Speed Adjust/Grain Tank Covers, X-917

1шт.

2

84247670

ELEC. TERMINAL PIN

Rotor Speed Adjust/Grain Tank Covers, X-917

2шт.

2

84291027

SEAL

Rotor Speed Adjust/Grain Tank Covers, X-917

2шт.

2

84157159

FUSE,40A, Maxi, Orange

Rotor Speed Adjust/Grain Tank Covers, X-917

1шт.

2

84382437

CAP

Rotor Speed Adjust/Grain Tank Covers, X-917

1шт.

3

47646886

ELEC CONNECTOR

To Right Main Harness, X-1136

1шт.

3

84068583

PLUG,12 - 16 Ga, White

To Right Main Harness, X-1136

12шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To Right Main Harness, X-1136

3шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

To Right Main Harness, X-1136

2шт.

3

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

To Right Main Harness, X-1136

1шт.

3

87695923

TERMINAL

To Right Main Harness, X-1136

3шт.

3

84365916

WIRE CONNECTOR

Backshell, To Right Main Harness, X-1136

1шт.

4

87382910

WIRE CONNECTOR,Female, 3 Cavities

To LH Underpanel Lights Harness, X-1044

1шт.

4

84395358

TERMINAL

To LH Underpanel Lights Harness, X-1044

3шт.

5

87382911

WIRE CONNECTOR,Male, 3 Cavities

Dust Cap, X-1044A

1шт.

5

84279937

PLUG,Apex, 2.80mm

Dust Cap, X-1044A

3шт.

6

84146315

ELEC CONNECTOR

To Rotor Loss Sensors Harness, X-1133

1шт.

6

84068583

PLUG,12 - 16 Ga, White

To Rotor Loss Sensors Harness, X-1133

2шт.

6

87694147

WEDGE,Locking, Green

To Rotor Loss Sensors Harness, X-1133

1шт.

6

87695623

ELEC. TERMINAL PIN

To Rotor Loss Sensors Harness, X-1133

4шт.

7

87694057

CABLE TIE,200mm L

1шт.

8

84401300

TERMINAL

Mega Fuse Holder, X-916B

1шт.

9

47684867

ELEC CONNECTOR

Mega Fuse Holder, X-916

1шт.

9

87455597

FUSE,200A

Mega Fuse Holder, X-916

1шт.

10

84401300

TERMINAL

Mega Fuse Holder, X-916A

1шт.

11

84401302

TERMINAL

Positive Jump Start Post, X-531L

1шт.

12

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

13

84474433

ELEC CONNECTOR

GLIM, X-055

1шт.

13

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

GLIM, X-055

13шт.

13

84142712

PLUG

GLIM, X-055

5шт.

14

87382906

WIRE CONNECTOR,Female, 2 Cavities

Clean Grain Elevator Speed Sensor, X-118

1шт.

14

47430298

Clean Grain Elevator Speed Sensor, X-118

CLIP,14.7mm H, 30mm L, 7mm Thk

1шт.

14

84395356

TERMINAL,Female, 2.8mm, 18-20

Clean Grain Elevator Speed Sensor, X-118

2шт.

15

87693821

ELEC CONNECTOR,Female, 2 Cavities

Unload Auger Solenoid, X-450

1шт.

15

87705073

STOP LOCK

Clean Grain Elevator Speed Sensor, X-118

1шт.

15

84552243

SEAL

Clean Grain Elevator Speed Sensor, X-118

1шт.

15

84552242

SEAL

Clean Grain Elevator Speed Sensor, X-118

1шт.

15

87688852

ELEC. TERMINAL PIN

Clean Grain Elevator Speed Sensor, X-118

2шт.

16

87708145

WIRE CONNECTOR

Separator Clutch Solenoid, X-449

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Separator Clutch Solenoid, X-449

2шт.

16

87712180

ELEC CONNECTOR

Separator Clutch Solenoid, X-449

1шт.

17

47674559

ELEC CONNECTOR

Beater/Chopper Speed, X-252

1шт.

17

47400436

TERMINAL

Beater/Chopper Speed, X-252

3шт.

17

84142302

SEAL

Beater/Chopper Speed, X-252

3шт.

18

87693690

ELEC CONNECTOR

Cross-Flow Cleaning Actuator, X-672

1шт.

18

87686742

PLUG

Cross-Flow Cleaning Actuator, X-672

2шт.

18

84199352

ELEC CONNECTOR

Cross-Flow Cleaning Actuator, X-672

1шт.

18

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Cross-Flow Cleaning Actuator, X-672

2шт.

18

87680710

SEAL

Cross-Flow Cleaning Actuator, X-672

2шт.

18

87680656

CONTACT

Cross-Flow Cleaning Actuator, X-672

2шт.

18

87418312

SEAL

Cross-Flow Cleaning Actuator, X-672

2шт.

18

84199352

ELEC CONNECTOR

Cross-Flow Cleaning Actuator, X-672

1шт.

19

87693751

ELEC CONNECTOR

Dust Cap, X-672A

1шт.

19

87686742

PLUG

Dust Cap, X-672A

5шт.

19

87704922

LOCK

Dust Cap, X-672A

1шт.
