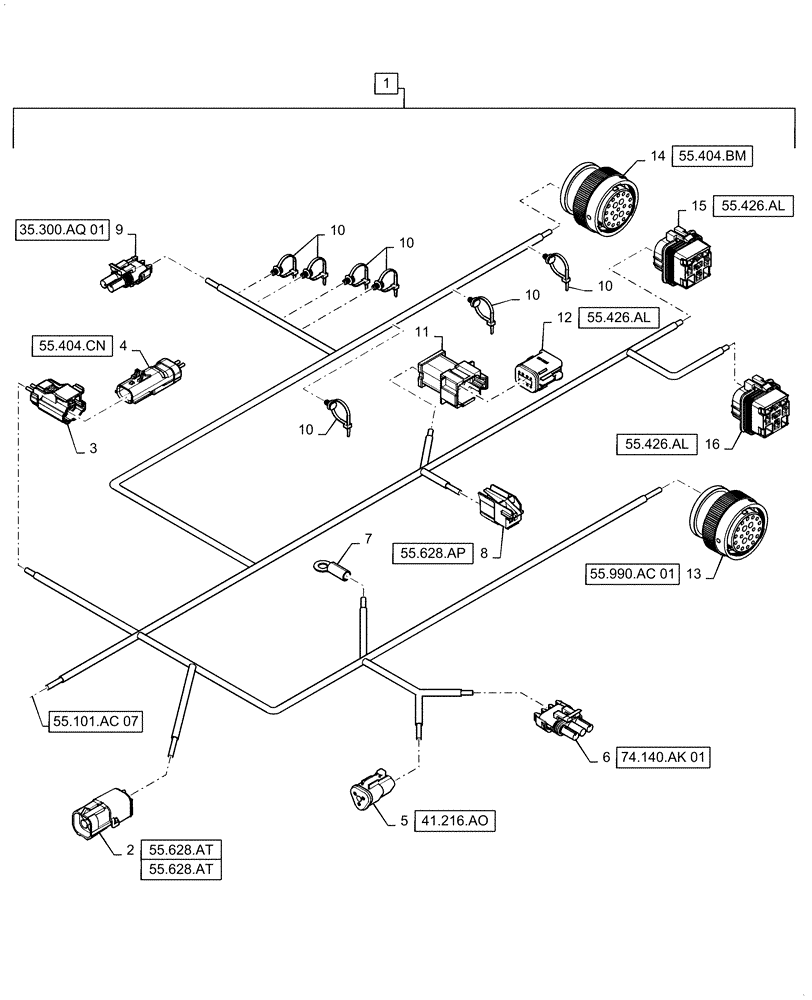

Запчасти Case IH 7140 (55.101.AC[08]) - WIRE HARNESS, RIGHT MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47881620

WIRE HARNESS

Right Main, Incl 2 - 16

1шт.

2

87692881

WIRE CONNECTOR

to Rotor Limit Switch Harness, X-1089

1шт.

2

87692880

CABLE TERMINAL

to Rotor Limit Switch Harness, X-1089

4шт.

2

87680702

SEAL

to Rotor Limit Switch Harness, X-1089

4шт.

3

87382906

WIRE CONNECTOR,Female, 2 Cavities

to RH Underpanel Lights Harness, X-1043

1шт.

3

84395358

TERMINAL

to RH Underpanel Lights Harness, X-1043

2шт.

4

87382907

WIRE CONNECTOR,Male

Dust Cap, X-1043A

1шт.

4

84279937

PLUG,Apex, 2.80mm

Dust Cap, X-1043A

2шт.

5

84074635

CONTACT HOUSING,Female, 3 Pole

Steering Cylinder Position, X-1146

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Steering Cylinder Position, X-1146

3шт.

5

84074639

LOCKING TAB,Wedge Lock

Steering Cylinder Position, X-1146

1шт.

5

84391165

HOUSING,Male, 3 Pins

Steering Cylinder Position, X-1146

1шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

Tailings Volume Sensor, X-270

1шт.

6

87692856

CABLE TERMINAL

Tailings Volume Sensor, X-270

3шт.

6

87680702

SEAL

Tailings Volume Sensor, X-270

3шт.

7

84399575

TERMINAL,5/16" Ring, SAE 8

Chassis Ground, X-568A

1шт.

8

87697538

Rotor Speed Motor, X-648

ELEC CONNECTOR

1шт.

8

87697682

ELEC. TERMINAL PIN

Rotor Speed Motor, X-648

2шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydraulic Oil Level Sensor, X-203

1шт.

9

87692856

CABLE TERMINAL

Hydraulic Oil Level Sensor, X-203

2шт.

9

87680702

SEAL

Hydraulic Oil Level Sensor, X-203

2шт.

10

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

7шт.

11

84806918

WIRE CONNECTOR,Male, 8 Pin

Grain Tank Covers, X-1145

1шт.

11

84806919

PLUG,Wedge Lock

Grain Tank Covers, X-1145

1шт.

11

87695623

ELEC. TERMINAL PIN

Grain Tank Covers, X-1145

5шт.

11

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Grain Tank Covers, X-1145

3шт.

12

87708152

ELEC CONNECTOR

No Grain Tank Covers Jumper, X-1145A

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

No Grain Tank Covers Jumper, X-1145A

2шт.

12

84068583

PLUG,12 - 16 Ga, White

No Grain Tank Covers Jumper, X-1145A

6шт.

12

84806312

LOCKING TAB,Wedge Lock

Wedge, No Grain Tank Covers Jumper, X-1145A

1шт.

13

84477097

ELEC CONNECTOR

RH Straw Hood Connection, X-1033

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Straw Hood Connection, X-1033

11шт.

13

87695923

TERMINAL

RH Straw Hood Connection, X-1033

3шт.

13

87712130

FITTING

RH Straw Hood Connection, X-1033

1шт.

14

84400773

MULTIPOLE CONNECTOR,Male, 21 Pole

LM/RM, X-1136

1шт.

14

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

LM/RM, X-1136

2шт.

14

87695623

ELEC. TERMINAL PIN

LM/RM, X-1136

3шт.

14

87704524

ELEC CONNECTOR,Pin, Size 12

LM/RM, X-1136

4шт.

15

84147481

Increase/Open, X-915

ELEC CONNECTOR

1шт.

15

87688848

TERMINAL

Increase/Open, X-915

2шт.

15

87688850

TERMINAL

Increase/Open, X-915

2шт.

16

84147481

Decrease/Close, X-914

ELEC CONNECTOR

1шт.

16

87688850

TERMINAL

Decrease/Close, X-914

2шт.

16

87688848

TERMINAL

Decrease/Close, X-914

2шт.
