Запчасти Case IH 7140 (35.300.BC) - HYDRAULIC SYSTEM, ENGINE, COOLER, PTO (35) - HYDRAULIC SYSTEMS

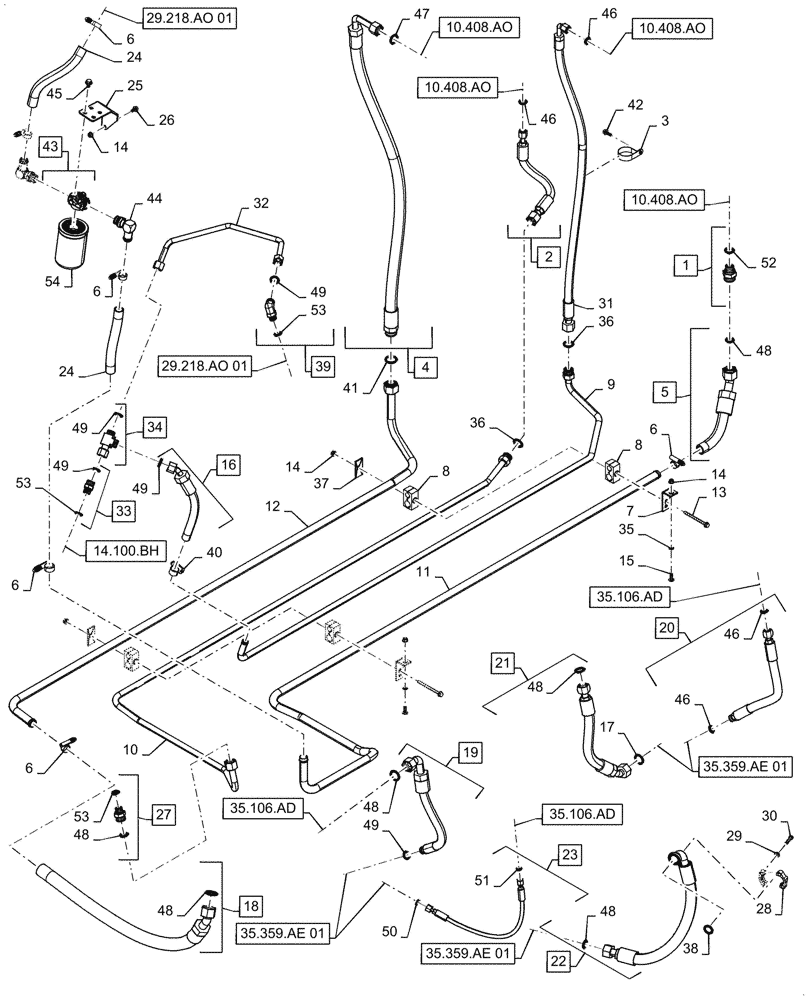

Схема запчастей Case IH 7140 - (35.300.BC) - HYDRAULIC SYSTEM, ENGINE, COOLER, PTO (35) - HYDRAULIC SYSTEMS
35.106.ad
32
33
53
1
15
48
54
24
29
6
43
46
19
41
13
49
49
24
30
6
47
27
51
44
3
35
14
8
6
48
46
34
52
53
2
39
28
5
6
36
11
48
40
48
16
37
31
46
20
10
45
14
4
23
38
53
26
18
22
42
48
17
8
49
46
12
6
48
14
9
7
50
49
36
49
25
21
35.359.ae 01
35.359.ae 01
35.359.ae 01
14.100.bh
29.218.ao 01
29.218.ao 01
10.408.ao
10.408.ao
10.408.ao
10.408.ao
35.106.ad
35.106.ad

Артикул

Название

Примечание

Количество

1

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 52

1шт.

2

84355977

HOSE ASSY.,15.88mm ID x 375mm L, SAE 100R6

Supply, Incl 46

1шт.

3

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

4

48025296

HOSE

Cooler Return, Incl 47

1шт.

5

84317535

HOSE ASSY.,25.4mm ID x 325mm L

Cooler, Incl 48

1шт.

6

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

6шт.

7

87549264

SUPPORT TUBE,112.4 mm L

Bundle Center

2шт.

8

87000146

CLAMP

Hydraulic Tube

4шт.

9

84570331

HYD TUBE

PTO Cooler Return

1шт.

10

84347786

HYD TUBE

PTO Cooler Supply

1шт.

11

47419567

HYD TUBE

Cooler Supply

1шт.

12

48025299

TUBE

Cooler Return

1шт.

13

87301686

BOLT,M8 x 108.1mm, Cl 10.9

2шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

15

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

16

84570336

HOSE ASSY.,19.05mm ID x 320mm L, SAE 100R6

PTO Cooler Return, Incl 49

1шт.

17

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

18

84556773

HYDRAULIC HOSE

Cooler Return, Incl 48

1шт.

19

47592439

HYDRAULIC HOSE

Low Pressure Return, Incl 48, 49

1шт.

20

47592438

HYDRAULIC HOSE

Air Screen Supply, Incl 46

1шт.

21

47592434

HOSE

Rear Return, Incl 17, 48

1шт.

22

47592436

HYDRAULIC HOSE

Main Supply, Incl 48

1шт.

23

47592435

HOSE

Signal Pump to Tube, Incl 50, 51

1шт.

24

408846A1

HOSE

Cooler Return

2шт.

25

47996345

BRACKET

Filter Mounting

1шт.

26

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

27

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl 48, 53

1шт.

28

86980728

COLLAR CLAMP

Split Flange

2шт.

29

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

4шт.

30

87564748

BOLT

.375" x 1.50"

4шт.

31

84356578

HOSE ASSY.,12.7mm ID x 1225mm L, SAE 100R6

Supply

1шт.

32

84425180

TUBE

PTO Cooler Return

1шт.

33

84420304

HYD CONNECTOR

Incl 49, 53

1шт.

34

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

Incl 49

1шт.

35

131-440

PUSH-ON NUT

Retainer

2шт.

36

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

37

87000230

PLATE

Cover

2шт.

38

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

39

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 49, 53

1шт.

40

87016721

HOSE CLAMP,17.5mm - 31.7mm

1шт.

41

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

42

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

43

86998689

HYDRAULIC OIL FILTER

PTO Lube, Incl 54

1шт.

44

84210609

90 ELBOW

M27

2шт.

45

87021006

BOLT,M10 x 26.4mm, Cl 10.9

4шт.

46

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

47

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

48

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

49

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

50

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

51

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

52

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

53

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

54

294721A1

HYDRAULIC OIL FILTER

PTO Lube

1шт.

Выбрано товаров: 54
