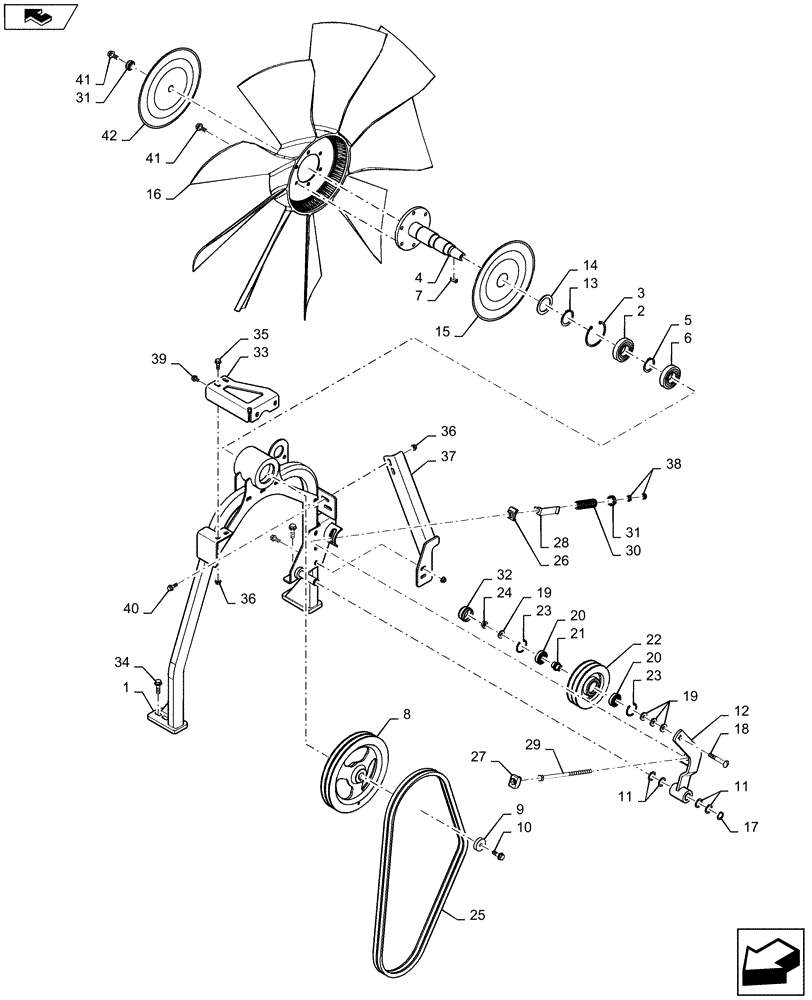

Запчасти Case IH 7140 (10.414.AC[03]) - ENGINE FAN DRIVE (10) - ENGINE

1

47432136

SUPPORT

Fan Drive, Dark Grey

1шт.

2

450716

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

1шт.

3

300633

SNAP RING,M80, Internal

1шт.

4

84120995

SHAFT

Dark Grey

1шт.

5

370006

SNAP RING,M40, Ext

1шт.

6

87621965

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

7

170005

KEY,M8 x 7mm W x 25mm OAL

1шт.

8

84557659

PULLEY,253.9mm OD

Engine Fan, Red

1шт.

9

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

Boss

1шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

11

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

12

87540958

ARM ASSY.

Dark Grey

1шт.

13

370007

SNAP RING,M45, Ext

1шт.

14

87613252

WASHER,1.81" ID x 2.5" OD x 0.11" Thk

1шт.

15

84120743

DISC

Rear Cover

1шт.

16

84457703

FAN,9 Blades, 965.2mm OD

1шт.

17

370024

CIRCLIP,M20, Ext

1шт.

18

87752069

CARRIAGE BOLT,Sht Sq Nk, M10 x 70mm, Cl 10.9

1шт.

19

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

4шт.

20

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

2шт.

21

87538002

BUSHING,10.2mm ID x 25mm OD x 29.4mm L

Tensioner Pulley

1шт.

22

87533880

PULLEY,144mm OD

Belt Tensioner, Dark Grey

1шт.

23

300644

SNAP RING,M40, Internal

2шт.

24

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

25

84150266

BELT

V, Set

1шт.

26

442398

GUIDE

Tensioner

1шт.

27

754131

GUIDE

Tensioner

1шт.

28

84188560

BRACKET

Fan Drive Spring Indicator

1шт.

29

9514334

ROD,M10 x 225mm

Tensioner

1шт.

30

84069932

COMPRESSION SPRING,25mm OD x 100mm L

Expander

1шт.

31

356728

CUP

Cup

2шт.

32

87540959

CAP

Dust

1шт.

33

84295458

BRACKET

Remote Fan Drive, Dark Grey

1шт.

34

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

35

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

36

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

37

47376768

BRACKET

Fan Drive Brace, Dark Grey

1шт.

38

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

39

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

40

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

41

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

7шт.

42

84120744

DISC

Front Cover

1шт.
