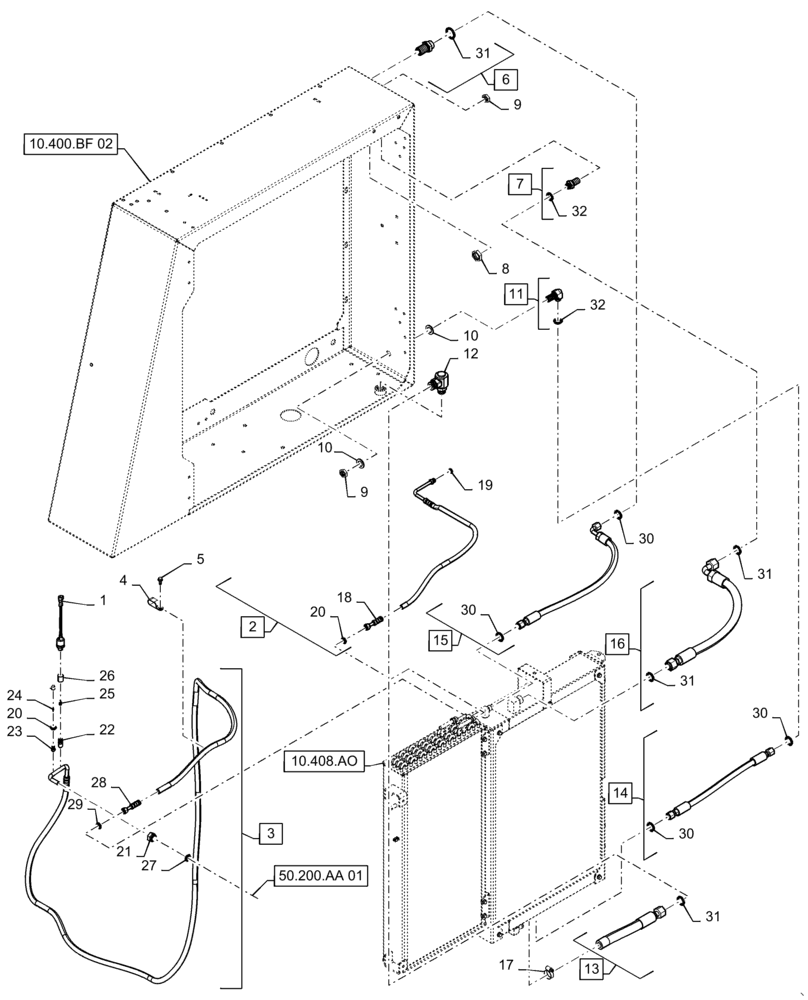

Запчасти Case IH 7140 (10.400.BF[03]) - COOLER, RADIATOR & COOLER, LINES (10) - ENGINE

1

87000227

SWITCH, A/C HIGH PRE

1шт.

2

47372435

A/C HOSE

Outlet To Cab, Incl 18 - 20

1шт.

3

47372434

A/C HOSE,10.32mm ID x 940mm L

Compressor To Condenser, Incl 28 - 29, 6140/7140

1шт.

3

84323355

HOSE ASSY.

Compressor To Condenser, Incl 20 - 29, 5140

1шт.

4

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

P-Style, Retaining

1шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

6

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

Incl 31

1шт.

7

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Incl 32

1шт.

8

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

9

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

ORFS 1/2" Tube

2шт.

10

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

11

87319550

90 ELBOW

ORFS Bulkhead, 1/2", Incl 32

1шт.

12

84258973

HYD CONNECTOR

1 3/16" -12 ORFS x 1 1/16" -12 ORB

1шт.

13

84258366

A/C HOSE,19.05mm ID x 325mm L

Oil Cooler Return, Incl 31

1шт.

14

84258365

A/C HOSE,12.7mm ID x 610mm L, SAE 100R17

PTO Cooler Return, Incl 30

1шт.

15

84258367

A/C HOSE,12.7mm ID x 700mm L, SAE 100R17

PTO Supply, Incl 30

1шт.

16

84258368

A/C HOSE,19.05mm ID x 625mm L, SAE 100R4

Oil Cooler Supply, Incl 31

1шт.

17

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

18

414223A1

FITTING

Straight

1шт.

19

452005C1

O-RING

Fitting, 5/8-18

1шт.

20

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

21

1250592C1

PIPE UNION NUT

Female

1шт.

22

414078A1

FITTING,M10 x 0.75 x 38.61mm L

High Side Service Port

1шт.

23

122081A1

FITTING,M10 x 1.25 x 26.43mm L

A/C Pressure Switch

1шт.

24

1250594C2

CORE

Valve

1шт.

25

414082A1

CORE

Valve, High Side Service Port

1шт.

26

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

High Side

1шт.

27

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

28

414225A1

FITTING

Straight

3шт.

29

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

3шт.

30

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

31

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

32

9992898

O-RING

4шт.
