Запчасти Case IH 7140 (10.400.BE) - RADIATOR ASSEMBLY, ENGINE (10) - ENGINE

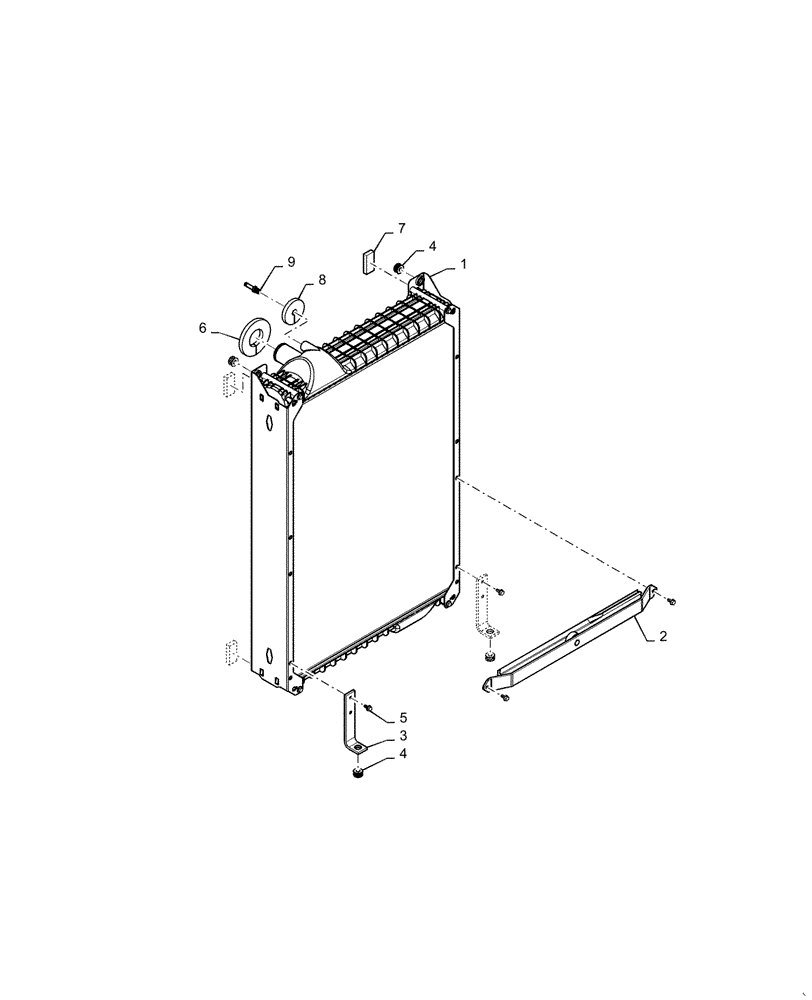

Схема запчастей Case IH 7140 - (10.400.BE) - RADIATOR ASSEMBLY, ENGINE (10) - ENGINE
6
7
4
3
2
8
5
4
1
9

Артикул

Название

Примечание

Количество

1

87302088

RADIATOR

Engine

1шт.

2

87432132

FAN

Wiper, Radiator

1шт.

3

411572A1

BRACKET

Radiator Isomount

2шт.

4

434177A1

ISOLATOR

Rubber Mount

4шт.

5

87681207

BOLT,M8 x 24.1mm, Cl 10.9

6шт.

6

NS

NOT SERVICED

Seal, Radiator, 340 mm, Cut From 1319664C3

2шт.

7

NS

NOT SERVICED

Seal, Radiator, 70 mm, Cut From 1319664C3

4шт.

8

NS

NOT SERVICED

Seal, Radiator, 217 mm, Cut From 1319664C23

1шт.

9

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

Выбрано товаров: 9
