Запчасти Case IH 7140 (10.254.AI[06]) - MUFFLER ASSY W/ SHIELD (10) - ENGINE

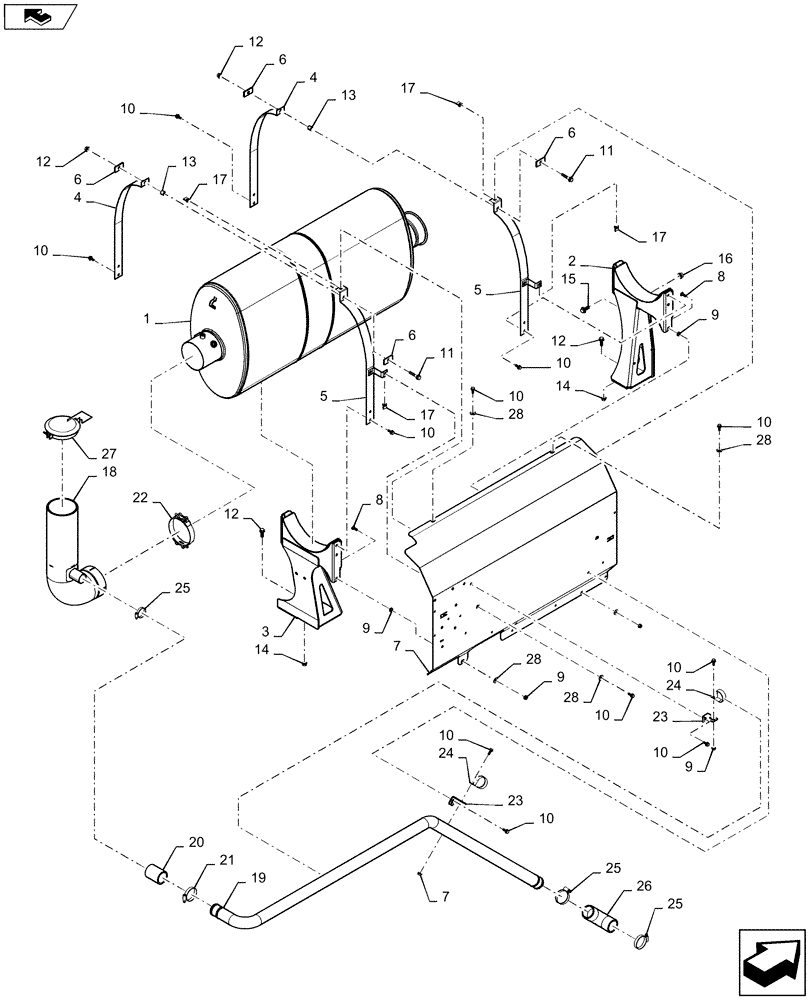

Схема запчастей Case IH 7140 - (10.254.AI[06]) - MUFFLER ASSY W/ SHIELD (10) - ENGINE
25
10
12
22
9
6
23
4
8
5
12
20
4
25
11
21
10
24
10
14
28
10
10
10
17
15
9
26
14
28
10
3
16
7
2
17
5
9
6
23
10
10
10
1
8
28
13
13
25
19
10
9
12
18
17
7
28
24
27
6
11
12
6
17

Артикул

Название

Примечание

Количество

1

47447510

MUFFLER

SCR Cluster

1шт.

2

47547550

SUPPORT

SCR Front, Heat Resistant Black

1шт.

3

47451796

SUPPORT

SCR Rear, Heat Resistant Black

1шт.

4

47406418

STRAP

Left, Heat Resistant Black

2шт.

5

47406419

STRAP

Right, Heat Resistant Black

2шт.

6

47461464

SPACER,11mm OD x 50mm L x 4.37mm Thk

Exhaust Strap

4шт.

7

47440320

HEAT SHIELD

Dark Gray

1шт.

8

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

16шт.

11

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

2шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

11шт.

13

87340800

SPACER,5/8" Tube x 15.88mm

2шт.

14

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

9шт.

15

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

16

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

17

86508354

PUSH-ON NUT,M8 x 1.25

4шт.

18

47575649

TUBE

Exhaust Extension, Heat Resistant Black

1шт.

19

47394883

PIPE

Pipe, Aspiration

1шт.

20

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

1шт.

21

86625019

HOSE CLAMP,44mm - 67mm

1шт.

22

84178949

CLAMP,149mm - 161mm

Extension

1шт.

23

47431680

BRACKET

Standoff, Dark Gray

2шт.

24

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

Aspiration Support

2шт.

25

86625019

HOSE CLAMP,44mm - 67mm

3шт.

26

84378692

RADIATOR HOSE

Aspiration

1шт.

27

84209296

PROTECTION CAP,152.4mm ID, High Temperature

Rain, Standard

1шт.

27

47816806

CAP

Rain, High Temperature, Improved

1шт.

27

84364062

CAP

Stainless

1шт.

28

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

Выбрано товаров: 30
