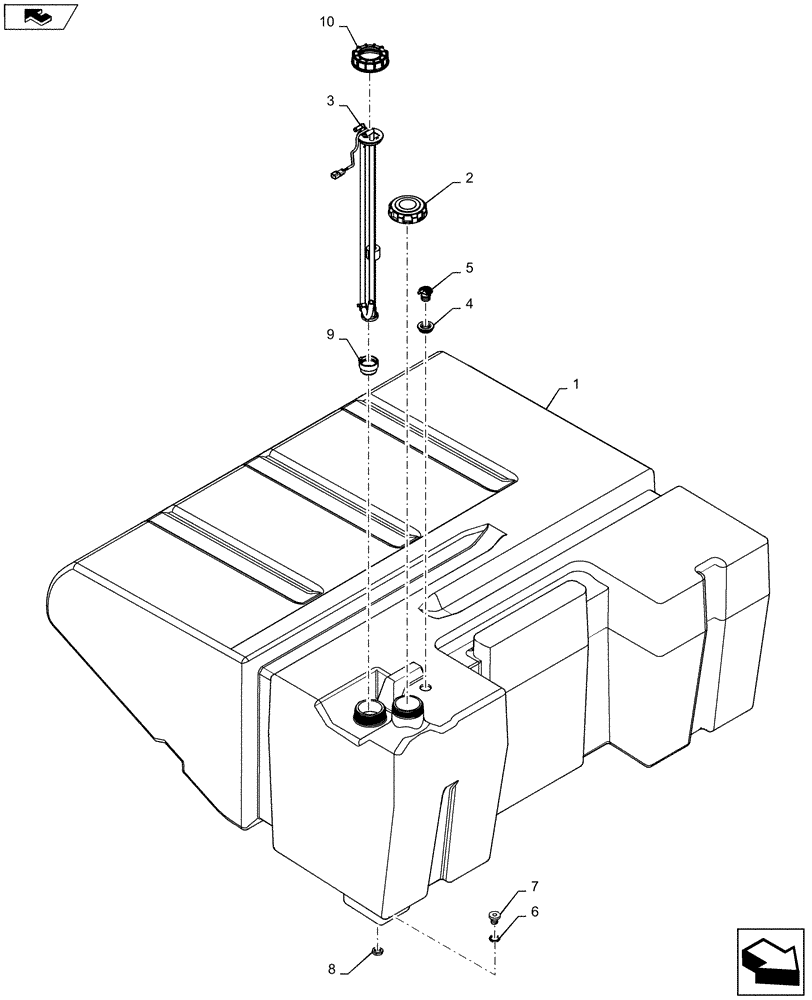

Запчасти Case IH 7140 (10.216.AI) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

1

87601309

TANK

250 Gallon Fuel

1шт.

2

87324388

FILLER CAP

With Gasket

1шт.

3

87601306

SENDER UNIT

Fuel Level

1шт.

4

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

Vent

1шт.

5

86999948

SAFETY VALVE

Rollover

1шт.

6

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

7

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Fuel Tank Drain Fitting

1шт.

8

87694595

NUT

Fuel Tank Drain Fitting

1шт.

9

87494272

FILTER

Fuel Sender

1шт.

10

87601305

NUT

Coupling

1шт.
