Запчасти Case IH 7140 (10.210.AO) - REAR HOOD FUEL LINE & INLINE FILTER (10) - ENGINE

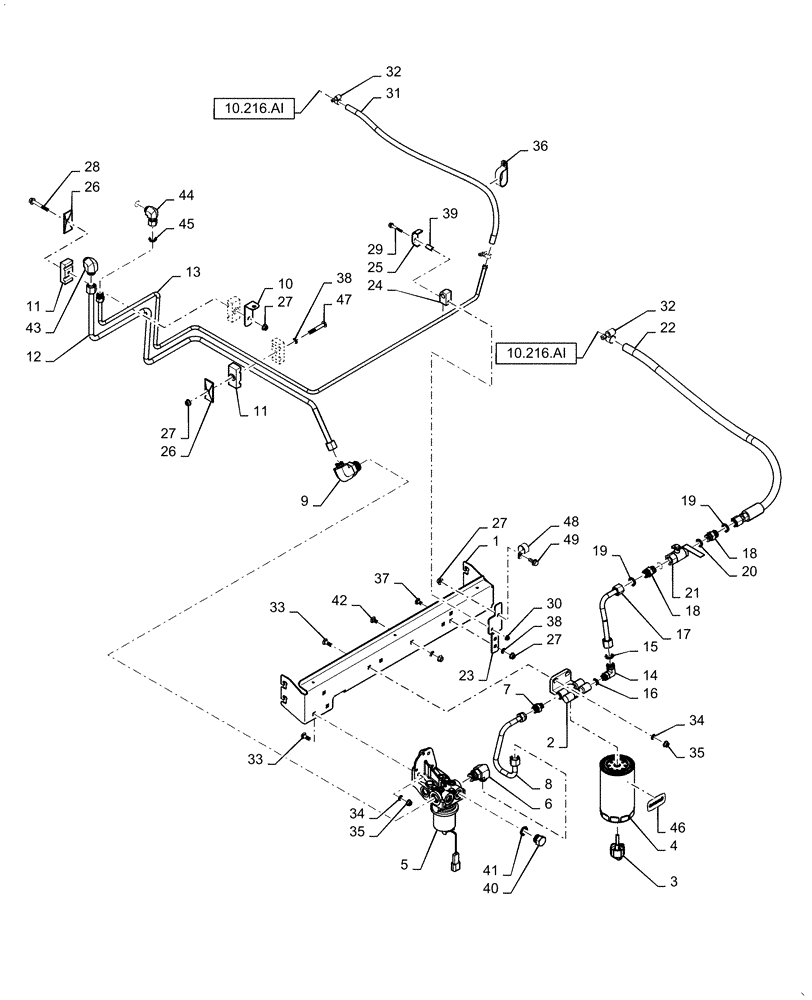

Схема запчастей Case IH 7140 - (10.210.AO) - REAR HOOD FUEL LINE & INLINE FILTER (10) - ENGINE
43
30
11
36
9
7
14
37
8
32
46
19
12
35
3
26
45
28
34
22
17
15
48
33
42
31
18
2
1
25
10.216.ai
19
11
18
24
32
21
38
10
29
13
49
44
16
27
6
39
38
26
27
47
35
10.216.ai
23
4
27
5
40
41
34
20
33
27

Артикул

Название

Примечание

Количество

1

47430975

SUPPORT

DEF Tank Side, Dark Gray

1шт.

2

87607877

HEAD

Fuel Filter

1шт.

3

87519307

SENSOR

Water Sensor

4шт.

4

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Element

1шт.

5

87676818

FUEL PUMP,12V, 4.5A

Assembly

1шт.

6

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

7

84431916

FITTING

Fuel Filter Outlet

1шт.

8

87728316

FUEL TUBE,.5" OD

Filter to Pump

1шт.

9

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

10

84497413

ANGLE

Tube Clamp, Dark Gray

1шт.

11

87105732

CLAMP

Hydraulic Tube

2шт.

12

84497410

FUEL TUBE

Supply

1шт.

13

84497408

FUEL TUBE

Return

1шт.

14

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

13/16-16 ORFS x M14 x 1.5 ORB

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

17

84169781

TUBE

Supply Tube

1шт.

18

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

2шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

21

84185100

SHUT-OFF VALVE,3/4" - 16 x 3/4" - 16

Supply

1шт.

22

84568100

FUEL HOSE,12.7mm ID x 850mm L, SAE 100R6

Supply

1шт.

23

84569342

SUPPORT

Fuel Lines, Dark Gray

1шт.

24

449127A1

CLAMP

Single Tube

1шт.

25

449128A1

CLAMP,20mm ID

Tube Clamp

1шт.

26

87000230

PLATE

Hose Clamp

2шт.

27

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

28

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

29

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

M6X40

1шт.

30

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

31

84563870

HOSE

Hose, Fuel Return

1шт.

32

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

3шт.

33

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

5шт.

34

87698854

NUT,M10

5шт.

35

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

36

470375C1

CLAMP,1", Insul, 3/8" Bolt

Medium Duty

1шт.

37

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

38

131-440

PUSH-ON NUT

5/16 Retainer

5шт.

39

418785A1

SPACER

Tube Clamp

1шт.

40

86512512

PLUG,7/8" - 14 ORB

2шт.

41

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

42

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

43

201-334

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

44

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

45

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

46

87679098

DECAL,37mm x 70mm

CIH Filter

1шт.

47

84319915

CARRIAGE BOLT,M8 x 1.25 x 64.8mm OAL, Cl 10.9

1шт.

48

700514

CLAMP,3.8mm, Coat, M8 Bolt

Cable

1шт.

49

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

Выбрано товаров: 49
