Запчасти Case IH 7140 (10.210.AF[02]) - FUEL LINE, ENGINE (10) - ENGINE

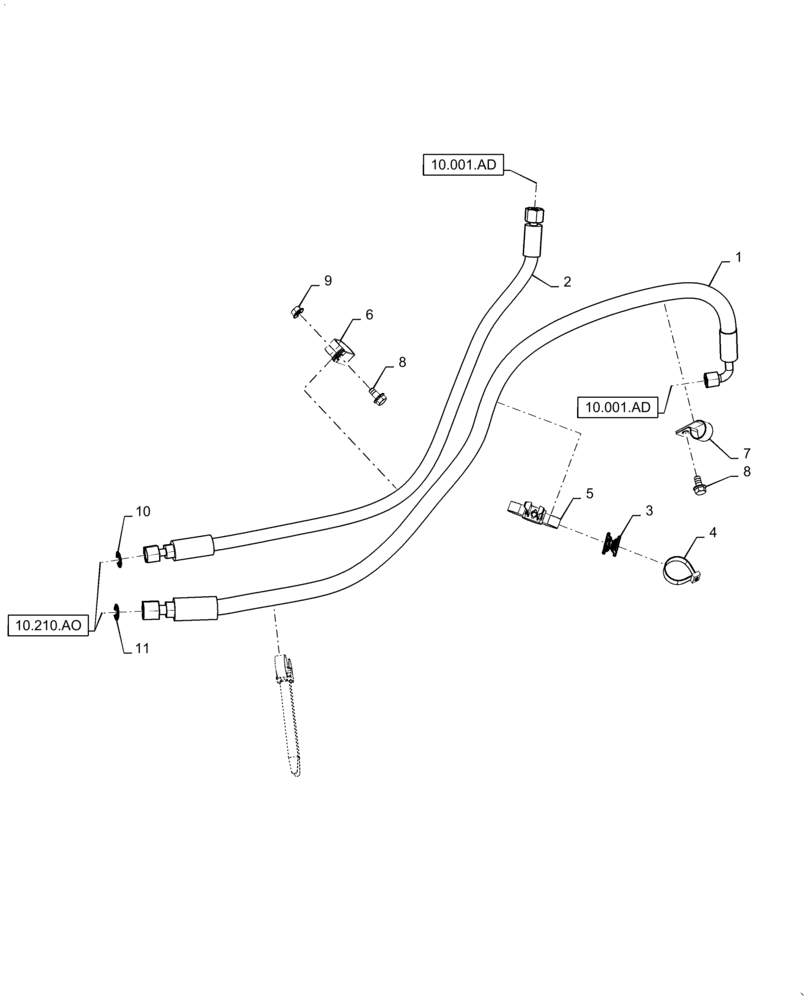

Схема запчастей Case IH 7140 - (10.210.AF[02]) - FUEL LINE, ENGINE (10) - ENGINE
9
1
11
8
6
8
5
4
7
10
10.001.ad
3
10.001.ad
2
10.210.ao

Артикул

Название

Примечание

Количество

1

47429658

FUEL HOSE

Supply, Incl 11

1шт.

2

47429656

HOSE

Return, Incl 10

1шт.

3

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

4

84266050

CABLE TIE,384mm L, Polyamide

Strap

1шт.

5

84386243

CLAMP,489mm L

Dual Tie

2шт.

6

470375C1

CLAMP,1", Insul, 3/8" Bolt

Fuel Line

1шт.

7

700514

CLAMP,3.8mm, Coat, M8 Bolt

Cable

1шт.

8

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Выбрано товаров: 11
