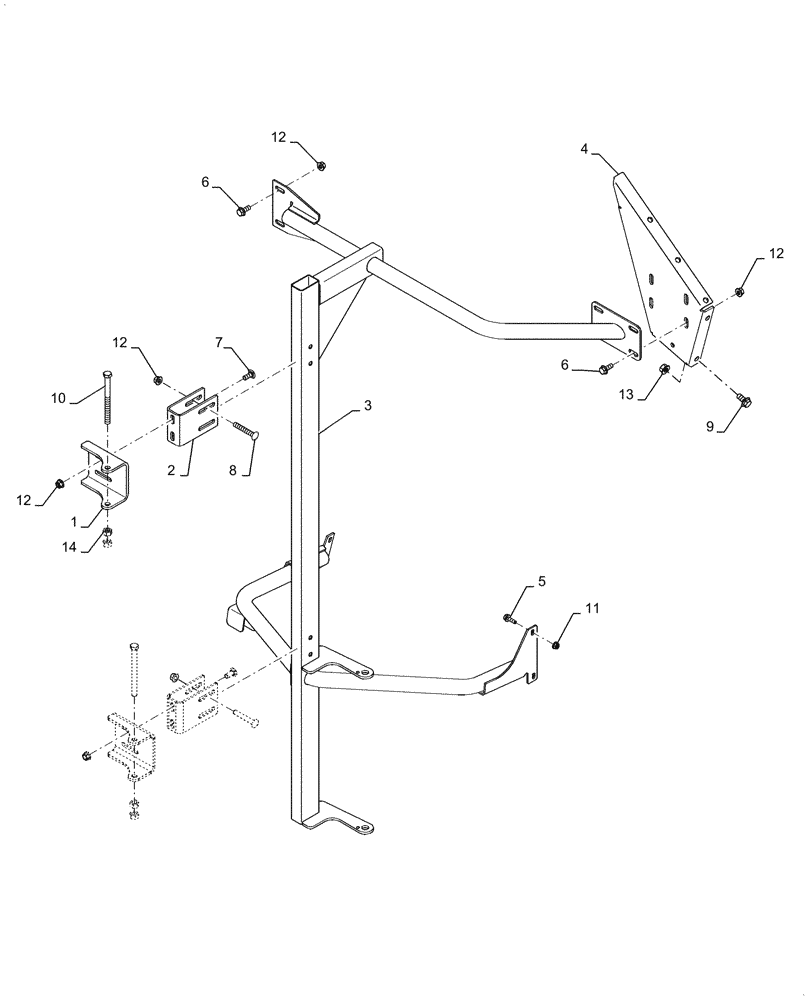

Запчасти Case IH 7140 (90.105.BH[05]) - SUPPORT, PANEL, BODY, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87703740

BRACKET

Door Hinge, Rear, RH

2шт.

2

87629500

BRACKET

Hinge, Rear, RH

2шт.

3

84127288

BRACKET

Support, Rear, RH

1шт.

4

87756424

BRACKET

Vertical Hinge Support, Front

1шт.

5

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

6

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

7

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

8

87752069

CARRIAGE BOLT,Sht Sq Nk, M10 x 70mm, Cl 10.9

4шт.

9

87343550

FLANGE BOLT,Hex, M12 x 25mm

5шт.

10

328048

BOLT,M12 x 1.75 x 147.68mm OAL, Cl 8.8

2шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

14шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

5шт.

14

9706685

NUT,M12 x 1.75, Cl 8

4шт.
