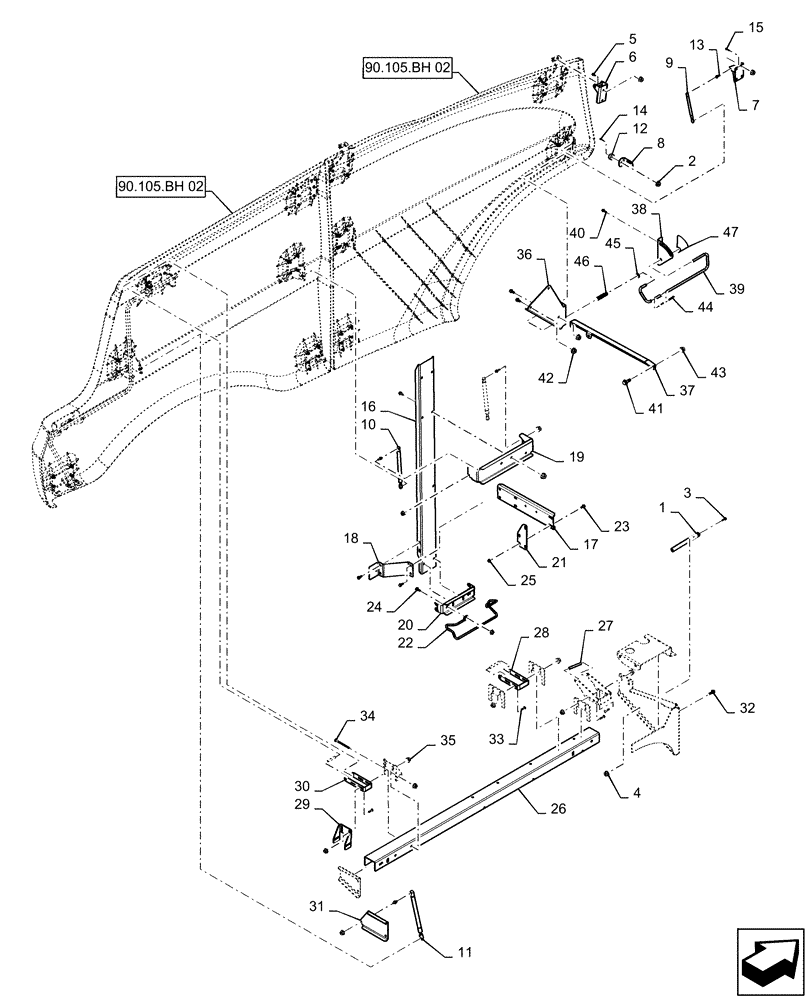

Запчасти Case IH 7140 (90.105.BH[01]) - SIDE PANEL, BODY, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84398945

STRAP

Trim Panel Brace

1шт.

2

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

3

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

13шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

6

87663840

BRACKET

Hinge, Front, LH

1шт.

7

87663897

BRACKET

Mount, Front Panel Gas Spring, LH0

1шт.

8

87671843

BRACKET

Bumper

1шт.

9

87688426

GAS STRUT

Front, LH

1шт.

10

87757843

GAS STRUT

Center, LH

2шт.

11

87690981

GAS STRUT

Rear, LH

1шт.

12

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

Rubber

1шт.

13

86634307

STUD

Ball, Strut Mount

4шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

15

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

11шт.

16

84180129

BRACKET, SUPPORTING

Channel, Trim Panel Latch

1шт.

17

84475121

CHANNEL

Side Sheet, Rear, LH

1шт.

18

87757249

SUPPORT

Latch Brace

1шт.

19

84579046

BRACKET

Trim Panel, Gas Spring Mount, LH

1шт.

20

84136668

BRACKET

Trim Panel Latch, LH

1шт.

21

84160869

PLATE

Vertical Support, LH

1шт.

22

84149018

LATCH

Rod, Latch Guard

1шт.

23

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

22шт.

24

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

25

86050279

FLANGE NUT,M10 x 1.5, Cl 10

26шт.

26

47367198

CHANNEL

Panel Support, LH

1шт.

27

84155744

HINGE

Panel, Front, LH, Rear Latch

1шт.

28

84155739

HINGE

Panel, Rear, LH, Rear Latch

1шт.

29

84156192

PANEL SUPPORT

Panel, Rear, LH, Hinge

2шт.

30

84155736

FIXED HINGE

Panel, Rear, LH

1шт.

31

84156195

BRACKET, SUPPORTING

Panel, Rear, LH, Rear Spring

1шт.

32

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

3шт.

33

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

12шт.

34

84188427

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 130mm, Cl 10.9

M10 x 130mm, 10.9

2шт.

35

86507066

FLANGE NUT,M8 x 1.25, Cl 10

16шт.

36

84158421

BRACKET, SUPPORTING

Transport Lock, Front, LH

1шт.

37

84158468

BRACKET, SUPPORTING

Transport Lock Support, Front, LH

1шт.

38

87700648

BRACKET

Latch, Front, LH

1шт.

39

87470712

ROD

Transport Lock, Front, LH

1шт.

40

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

41

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

42

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

43

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

44

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

46

192216A1

SPRING

Safety Stand Rod

1шт.

47

87479419

DECAL

Trim Panel Lock

1шт.
