Запчасти Case IH 7140 (90.100.BJ[01]) - COVER ASSY, ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

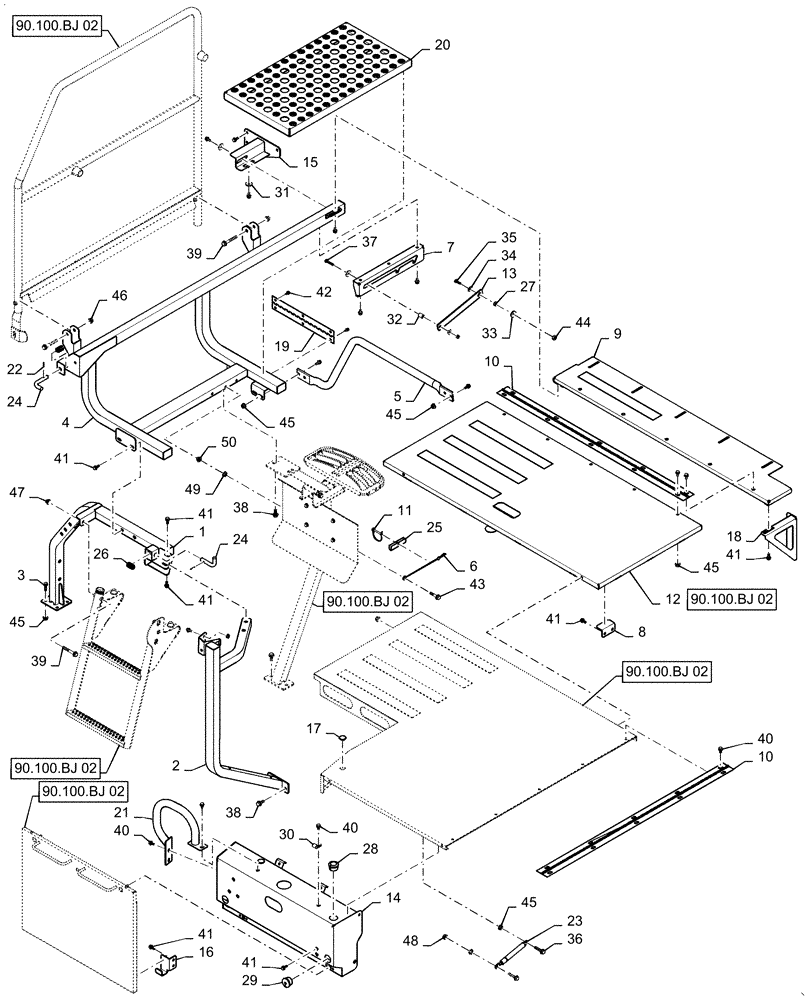

Схема запчастей Case IH 7140 - (90.100.BJ[01]) - COVER ASSY, ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
90.100.bj 02
16
35
34
24
15
45
36
46
39
27
28
41
90.100.bj 02
38
5
13
41
90.100.bj 02
41
37
29
12
41
9
39
26
40
25
42
21
6
47
41
8
31
17
45
45
45
45
14
38
44
49
23
10
40
33
32
11
18
2
30
40
4
43
24
1
3
7
41
90.100.bj 02
50
22
10
48
41
90.100.bj 02
19
90.100.bj 02

Артикул

Название

Примечание

Количество

1

47377135

SUPPORT

Rear

1шт.

2

47378755

SUPPORT

Rear

1шт.

3

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

4

47377198

SUPPORT

Cover

1шт.

5

84348616

HANDRAIL

Front

1шт.

6

409114A1

CABLE

10" Nylon

1шт.

7

84291514

ANGLE

Rotor Door Prop

1шт.

8

84258220

ANGLE BAR

Cover Support

1шт.

9

84277131

SHEET

Rotor Door Mount

1шт.

10

442774A2

HINGE

Engine Cover Door

2шт.

11

47431629

PIN

W/ Wire Lock

1шт.

12

84592582

COVER ASSY

Rotor Top

1шт.

13

84254778

STRAP

Engine Cover Support

1шт.

14

47418896

SUPPORT

Engine Cover

1шт.

15

84351096

SUPPORT

Deaeration Tank

1шт.

16

84295598

BRACKET

Catch, RH

1шт.

17

158188

PLUG,19mm Hole, 28.6mm OD

1шт.

18

84283597

SUPPORT

Gusset

1шт.

19

47377206

HINGE

Door, Separator Drive

1шт.

20

47440200

PLATFORM

Engine Deck

1шт.

21

47510541

HANDRAIL

Engine Deck

1шт.

22

87455

SLOTTED PIN,1/8" OD x 1" OAL

1шт.

23

84121818

GAS STRUT

1шт.

24

86611330

PIN,16.56mm OD

1/2"

2шт.

25

47441370

BRACKET

Cylinder Lockout

1шт.

26

47383335

SPRING

Compression

2шт.

27

87281729

BUSHING

16mm OD x 9.5mm ID x 6.35mm L

1шт.

28

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

41mm OD x 25.4mm ID

1шт.

29

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

41mm OD x 9.5mm ID

2шт.

30

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

31

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

2шт.

32

86580795

SPACER

15.9mm OD x 8mm ID x 21.8mm L

1шт.

33

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

35

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

36

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

37

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

38

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

39

87698841

BOLT,Hex, M10 x 70mm, Cl 10.9

Flange, M10 x 70mm, 10.9

4шт.

40

87681207

BOLT,M8 x 24.1mm, Cl 10.9

38шт.

41

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

22шт.

42

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

6шт.

43

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

Flange, M6 x 25mm, 10.9

1шт.

44

9706690

NUT,M8 x 1.25, Cl 8

2шт.

45

86507066

FLANGE NUT,M8 x 1.25, Cl 10

23шт.

46

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

47

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

M10

2шт.

48

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

49

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

50

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

M6

1шт.

Выбрано товаров: 50
