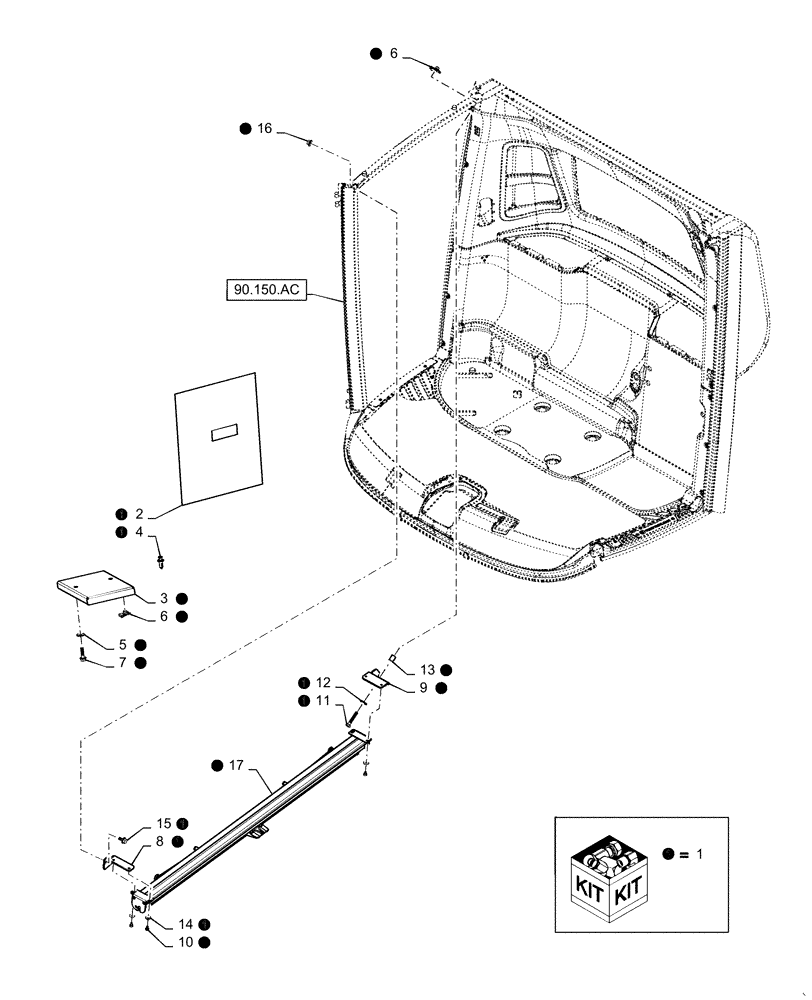

Запчасти Case IH 7140 (88.100.90[01]) - DIA KIT, RH SUNSHADE (88) - ACCESSORIES

1

47584973

KIT

DIA, RH Sunshade, Incl 2 - 17

1шт.

2

47584968

INSTRUCTION

Instruction Sheet

1шт.

3

47582523

BRACKET

BB Radio

1шт.

4

84563392

PLASTIC PLUG

Plastic

1шт.

5

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

6

87016585

NUT,Spring, M6 x 1

Spring, M6 x 1mm

3шт.

7

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

8

47452041

BRACKET

Front

1шт.

9

47454664

BRACKET

Rear

1шт.

10

540-717

SCREW,Cross Pan Hd, M4 x 8

4шт.

11

87698769

BOLT,Hex, M6 x 35mm, Cl 8.8

M6 x 35mm

1шт.

12

84007539

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

13

87377305

SPACER,6.8mm ID x 10.3mm OD x 13mm L

1/8" Pipe Spacer

1шт.

14

12601079

WASHER,4.3mm ID x 9mm OD x 0.5mm Thk

Spring, M4

4шт.

15

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

17

47431093

SUNSHADE

RH, Wheat

1шт.
