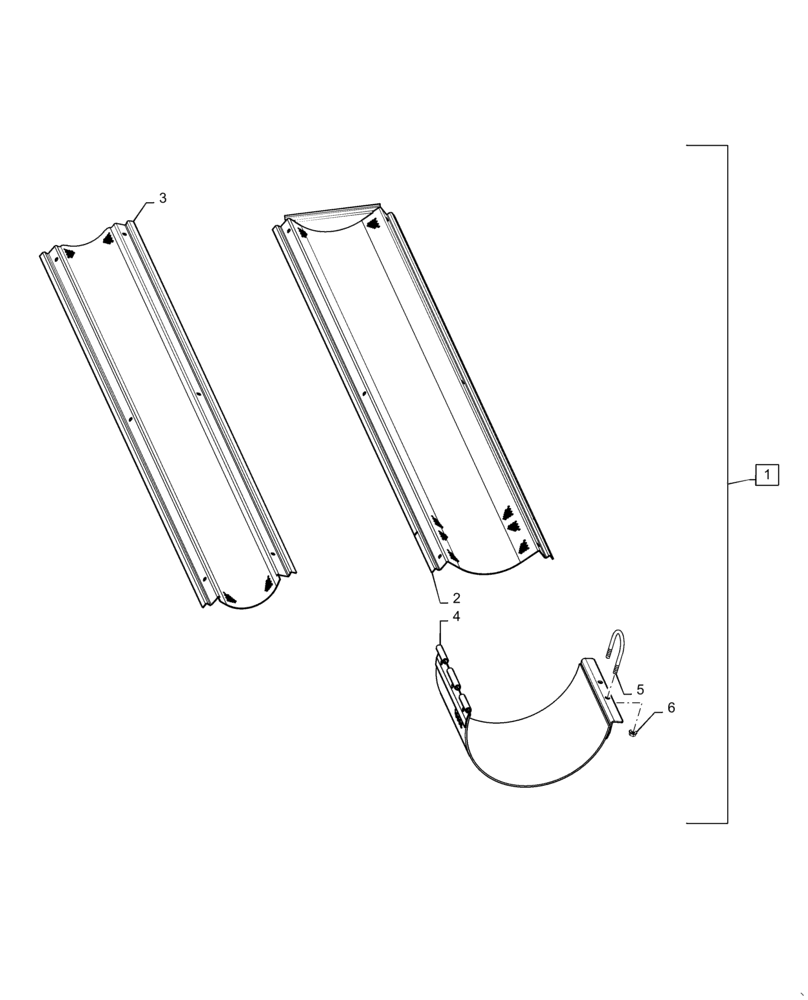

Запчасти Case IH 7140 (88.100.74[01]) - DIA KIT, ELEVATOR DOOR (88) - ACCESSORIES

1

84181343

SERVICE KIT

DIA, Perforated Elevator Door, Incl 2 - 6

1шт.

2

87726786

TROUGH ASSY.

Tailings Auger

1шт.

3

84181472

PAN ASSY.

Auger Trough

1шт.

4

84181350

COVER ASSY

Grain Elevator Door Boot

1шт.

5

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

1шт.

6

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.
