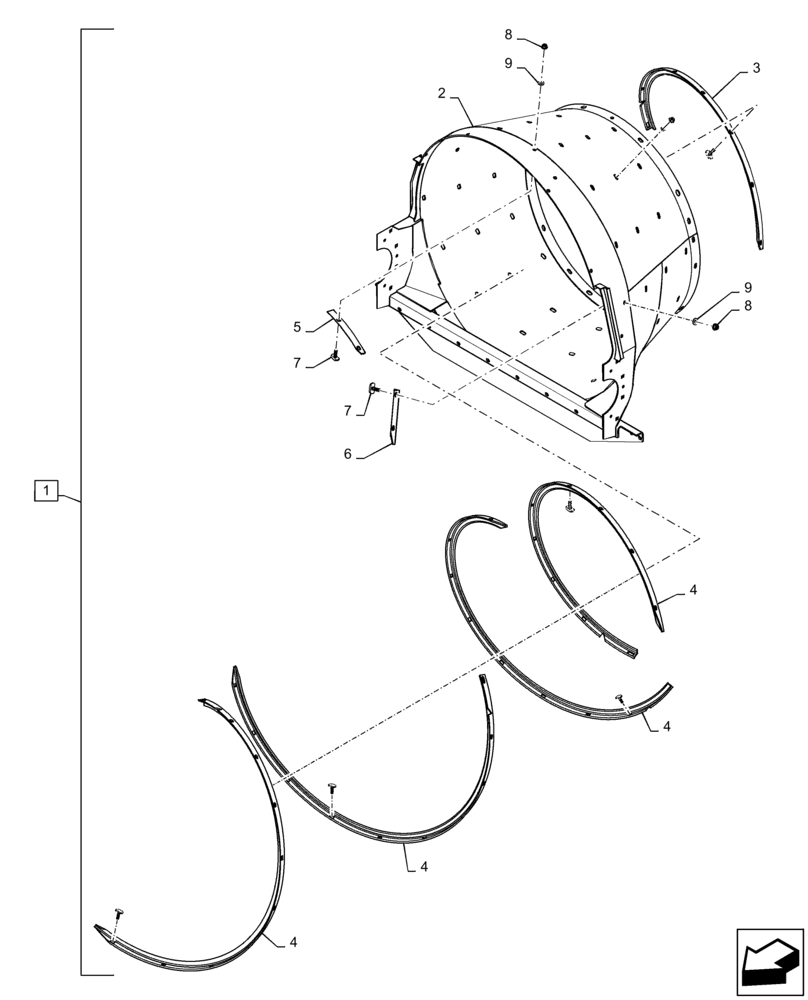

Запчасти Case IH 7140 (88.100.66[02]) - DIA KIT, HEAVY DUTY FEEDER CONE (88) - ACCESSORIES

1

47512044

CONE

DIA Kit, Transition W/ Extended Wear Vanes, Incl 2 - 9

1шт.

2

47512072

CONE

Extended Wear

1шт.

3

418655A2

STIFFENER

Extended Wear Short Vane

1шт.

4

418654A2

VANE

Extended Wear Long Vane

4шт.

5

347913A1

VANE

Extended Wear Extension Vane

1шт.

6

347918A1

STIFFENER

Extended Wear Pocket Vane

1шт.

7

87106338

BOLT

Tee, M10 x 30mm

47шт.

8

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

47шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

47шт.
