(88.100.10[01]) - DIA KIT, STATIONERY AIR CLEANER BRUSH

Запчасти Case IH 7140 (88.100.10[01]) - DIA KIT, STATIONERY AIR CLEANER BRUSH (88) - ACCESSORIES

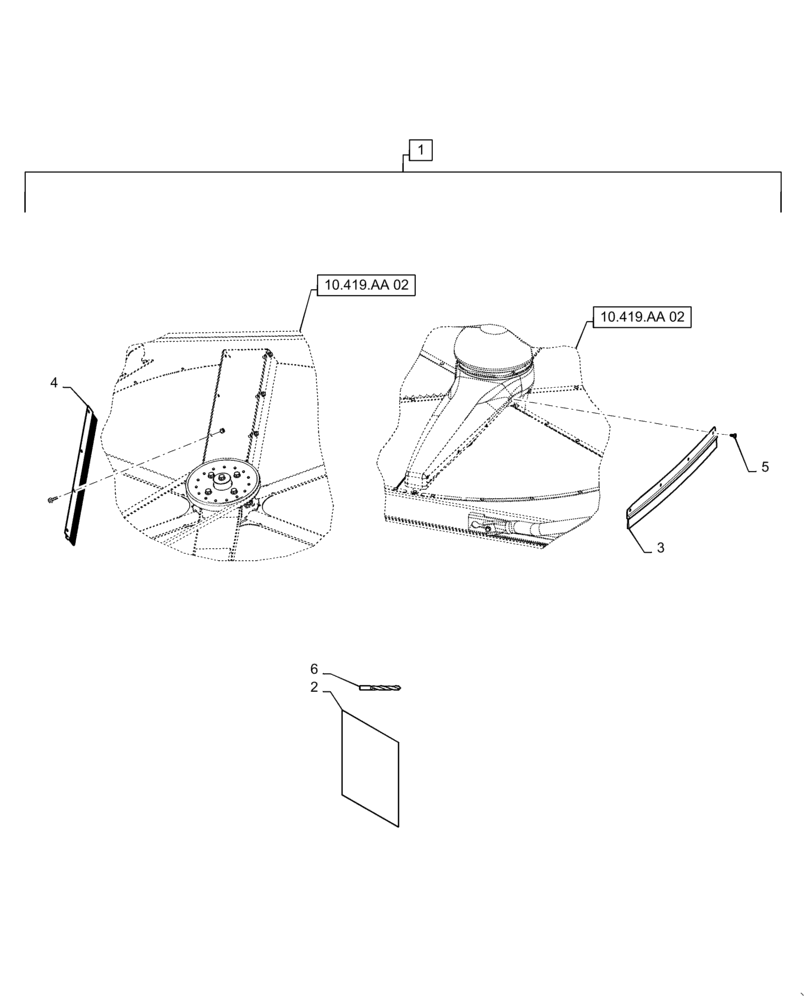

Схема запчастей Case IH 7140 - (88.100.10[01]) - DIA KIT, STATIONERY AIR CLEANER BRUSH (88) - ACCESSORIES
3
10.419.aa 02
6
2
5
1
4
10.419.aa 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87687385

DIA KIT, HARVESTER

Stationary Air Screen Brush, Incl 2 - 6

1шт.

2

84150526

INSTRUCTION

Sheet, Sucrose Brush

1шт.

3

84138151

BRUSH

Rotating, Nozzle Side

2шт.

4

84138152

BRUSH

Rotating, Blockoff Side

2шт.

5

84151453

SCREW

Thread Forming

4шт.

6

84153086

BIT

Drill, 7/32"

1шт.
