Запчасти Case IH 7140 (80.180.AU[02]) - VAR - 425329, 722740, 425330, 425312, 425314, 425313, 722983, 425078, 425077 - UNLOADING TUBE, HORIZONTAL (80) - CROP STORAGE/UNLOADING

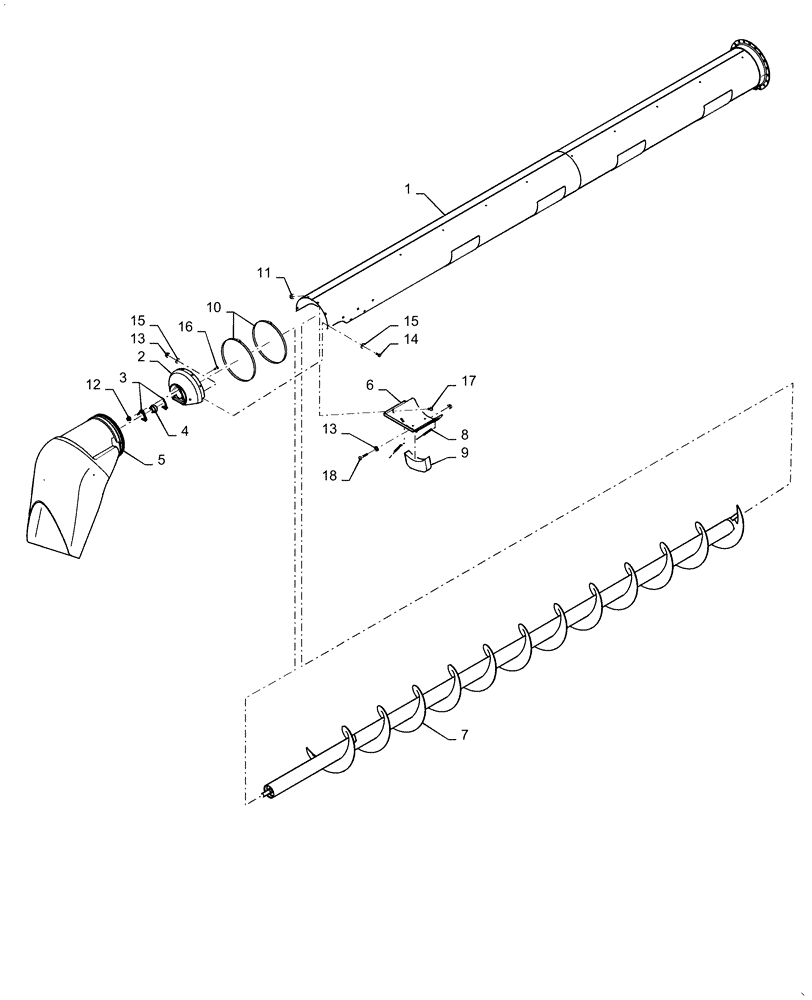

Схема запчастей Case IH 7140 - (80.180.AU[02]) - VAR - 425329, 722740, 425330, 425312, 425314, 425313, 722983, 425078, 425077 - UNLOADING TUBE, HORIZONTAL (80) - CROP STORAGE/UNLOADING
10
13
15
4
18
13
6
14
3
16
8
7
12
2
5
1
17
11
15
9

Артикул

Название

Примечание

Количество

1

87743673

TUBE,356mm ID x 5034.7mm OAL

Unload, Standard Wear

1шт.

1

87743683

TUBE,5034.7 mm L

Unload, Standard Wear, Perforated VAR - 722740, 425314, 425078

1шт.

2

87741381

COVER

Unload Tube End Cap

1шт.

3

84414986

FLANGE

62mm ID, 3 Bolt

2шт.

4

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

62mm OD x 30mm ID x 18mm L

1шт.

5

84219375

SPOUT

Unload Tube

1шт.

6

84131732

DOOR

Grain Saver

1шт.

7

84447941

AUGER,5400.5mm L

Unload, Standard Wear VAR - 425329, 722740, 425312, 425314, 722983, 425078

1шт.

7

87280339

AUGER,5400.5mm L

Unload, Extended Wear VAR - 425330, 425313, 425077

1шт.

8

1338869C2

SPRING,162mm Free Length

162mm Free Length

2шт.

9

84219420

PLUG

Foam, 240mm x 131mm x 50mnm, Formed

1шт.

10

87339347

CLAMP,316mm - 387mm

387mm Open

2шт.

11

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

16

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

17

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

18

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

Выбрано товаров: 20
