(80.150.BJ) - COVER, AUGER, GRAIN TANK

Запчасти Case IH 7140 (80.150.BJ) - COVER, AUGER, GRAIN TANK (80) - CROP STORAGE/UNLOADING

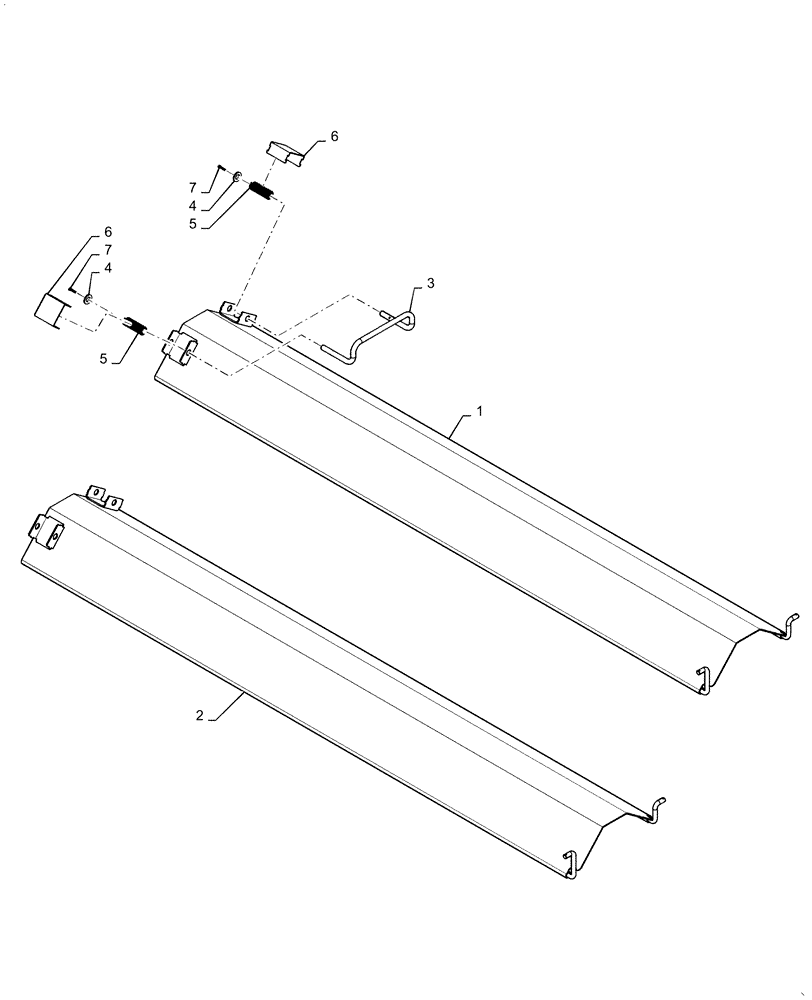

Схема запчастей Case IH 7140 - (80.150.BJ) - COVER, AUGER, GRAIN TANK (80) - CROP STORAGE/UNLOADING
5
4
7
6
5
1
3
4
7
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87545834

TOP COVER

Grain Tank Auger, Rear

1шт.

2

86976422

COVER

Grain Tank Auger, Front

1шт.

3

86975418

HANDLE

Cover

1шт.

4

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

2шт.

5

80025823

SPRING,63.5mm Free Length

Guard And Lock

2шт.

6

86976481

COVER

Cap

2шт.

7

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

2шт.
