Запчасти Case IH 7140 (80.150.BF[02]) - VAR - 425472, 425467 - DOOR COVER, GRAIN TANK (80) - CROP STORAGE/UNLOADING

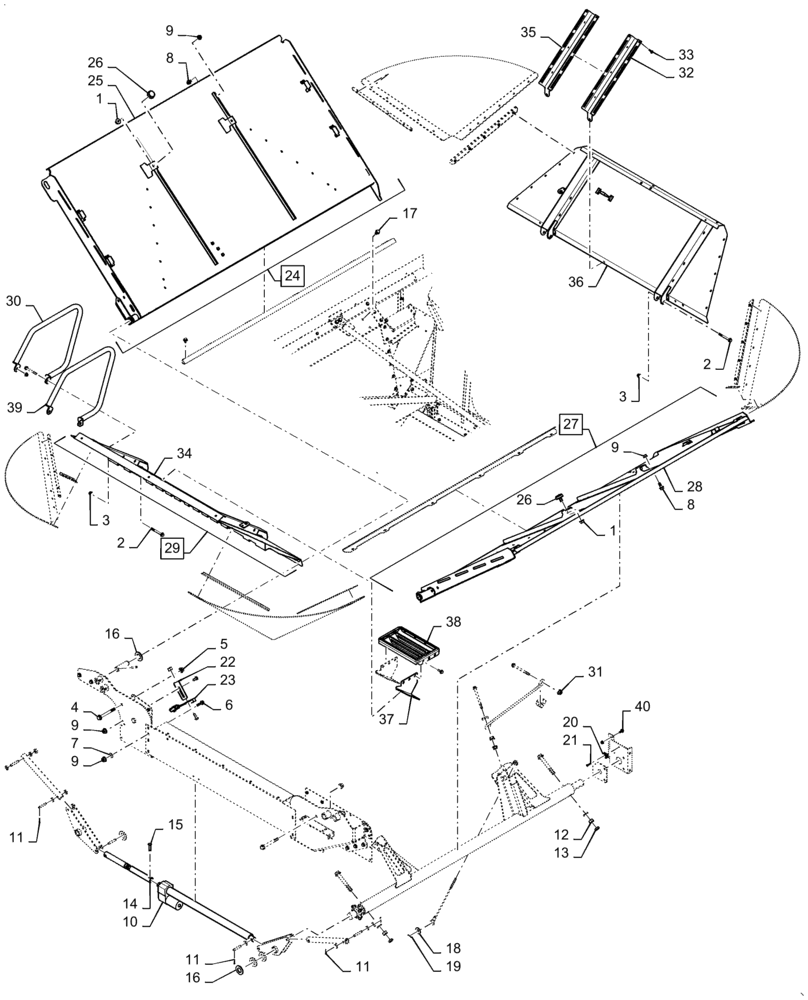

Схема запчастей Case IH 7140 - (80.150.BF[02]) - VAR - 425472, 425467 - DOOR COVER, GRAIN TANK (80) - CROP STORAGE/UNLOADING
3
7
33
5
35
26
16
14
32
31
11
1
2
9
39
1
11
25
8
27
36
38
8
9
24
15
9
4
6
21
29
23
19
37
30
20
26
18
2
11
17
22
3
28
40
16
34
10
9
13
12

Артикул

Название

Примечание

Количество

1

86050279

FLANGE NUT,M10 x 1.5, Cl 10

26шт.

2

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

8шт.

3

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.

4

87028052

BOLT,Hex Flg, M16 x 140, 10.9

2шт.

5

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

6

87030775

BOLT,M8 x 38.1mm, Cl 10.9

6шт.

7

131-440

PUSH-ON NUT

5/16"

5шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

30шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

74шт.

10

84181862

ACTUATOR

Grain Tank Covers

1шт.

11

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

13шт.

12

392530

NUT,M16, Cl 10

2шт.

13

10717511

THIN NUT,Thin, M16 x 2, Cl 04

2шт.

14

87740259

EXTENSION

Actuator Bar

1шт.

15

84056380

CLEVIS PIN,12mm OD x 50mm L

1шт.

16

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

10шт.

17

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

18

495-61066

WASHER

1.75" OD x .656" ID x .1"

1шт.

19

394818

COTTER PIN,M5 x 25

1шт.

20

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

21

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

22

47438793

BRACKET

Door Open/ Close Sensor

1шт.

23

87392235

SENSOR

Door Open/ Close

1шт.

24

87556613

COVER ASSY

LH, VAR - 425472, 425467, Incl 1, 8, 9, 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

Cover Assy, LH, Incl In 24

1шт.

26

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

Bumper

2шт.

27

87556597

COVER ASSY

RH, VAR - 425472, 425467, Incl 1, 8, 9, 26, 28

1шт.

28

87722154

COVER ASSY

RH

1шт.

29

87554394

EXTENSION ASSY.

Front/ Rear VAR - 425472, Incl 34

1шт.

30

87109875

HANDLE

Grab VAR - 425472

1шт.

31

86512497

FLANGE NUT,M12 x 1.75, Cl 10

VAR - 425472

4шт.

32

87756703

BRACKET

Bin Level Sensor Mount VAR - 425472

1шт.

33

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

34

87721662

EXTENSION ASSY.

Front VAR - 425467

1шт.

35

87685904

BRACKET

Bin Level Sensor Mount VAR - 425472

1шт.

36

87735049

EXTENSION ASSY.

Rear VAR - 425467

1шт.

37

87609690

BRACKET

Step Support VAR - 425472

2шт.

38

1531337C1

STEP

VAR - 425472

1шт.

39

87648705

HANDLE

Grab VAR - 425467

1шт.

40

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

Flange, M10 x 25mm, Full Thread, 10.9

4шт.

Выбрано товаров: 40
