Запчасти Case IH 7140 (74.140.AX) - JACKSHAFT, TAILINGS ELEVATOR (74) - CLEANING

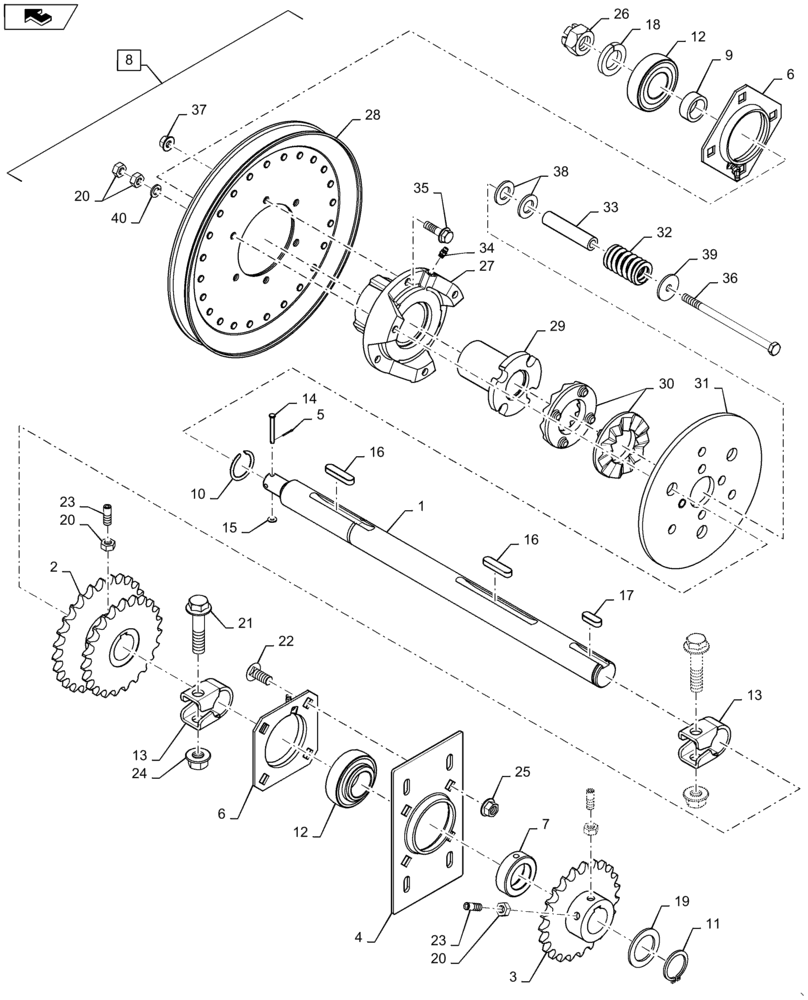

Схема запчастей Case IH 7140 - (74.140.AX) - JACKSHAFT, TAILINGS ELEVATOR (74) - CLEANING
28
18
9
14
16
12
37
27
6
23
36
38
10
34
29
24
40
26
15
17
39
13
12
23
13
7
25
6
30
33
21
35
2
22
20
20
8
20
31
5
19
1
11
3
16
32
4

Артикул

Название

Примечание

Количество

1

84183407

SHAFT

Jackshaft, Tailings Elevator Drive

1шт.

2

84159778

SPROCKET ASSY.

27 Tooth/23 Tooth

1шт.

3

84159772

SPROCKET ASSY.

23 Tooth

1шт.

4

84160038

BRACKET

Bearing Flange

1шт.

5

432-48

COTTER PIN,1/16" x 1/2"

1шт.

6

84165643

BEARING HOUSING

80mm ID

2шт.

7

87313329

COLLAR

38mm ID

1шт.

8

84159775

CLUTCH

Elevator Jackshaft, Incl 20, 27 - 40

1шт.

9

84183897

SPACER

50.8mm OD x 38.4mm ID x 20mm

1шт.

10

84213582

SNAP RING

35mm ID

1шт.

11

100-16150

SNAP RING,#150, Ext

1шт.

12

478038R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

2шт.

13

84159773

CLAMP

38.4mm ID

2шт.

14

427-3175

CLEVIS PIN,4.78mm OD x 44.45mm L

1шт.

15

495-31022

WASHER,#10

1шт.

16

170056

KEY,12mm W x 50mm OAL

2шт.

17

170015

KEY,12mm x 8mm x 32mm

1шт.

18

88695

LOCK WASHER,1 1/8"

1шт.

19

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

1шт.

20

100016

NUT,M10 x 1.5, Cl 8

10шт.

21

86981489

BOLT,Hex, M16 x 70mm, Cl 10.9

2шт.

22

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

4шт.

23

300484

SET SCREW

M10 x 30mm

4шт.

24

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

25

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

26

11693821

SLOTTED NUT,M24 x 2, Cl 10

1шт.

27

84164210

ASSEMBLY

Hub, Elevator Jackshaft

1шт.

28

87757836

PULLEY,335.53mm OD

Elevator Jackshaft

1шт.

29

84213522

HUB

Elevator Ratchet Clutch

1шт.

30

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

Clutch Slip

2шт.

31

87470287

RETAINER

Clutch Ratchet

1шт.

32

84301305

COMPRESSION SPRING

Elevator Clutch

3шт.

33

186916C2

BUSHING,11.18mm ID x 19.05mm OD x 87.38mm L

19.05mm OD x 11.18mm ID x 87.38mm

3шт.

34

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

35

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

3шт.

36

814-10170

BOLT,Hex, M10 x 1.5 x 170mm, Cl 8.8

3шт.

37

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

3шт.

38

495-11081

WASHER,3/4", SAE

6шт.

39

495-81143

WASHER,13/32" x 1 1/2" x .120"

3шт.

40

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

Выбрано товаров: 40
