Запчасти Case IH 7140 (74.140.AK[04]) - HEAD, TAILINGS ELEVATOR (74) - CLEANING

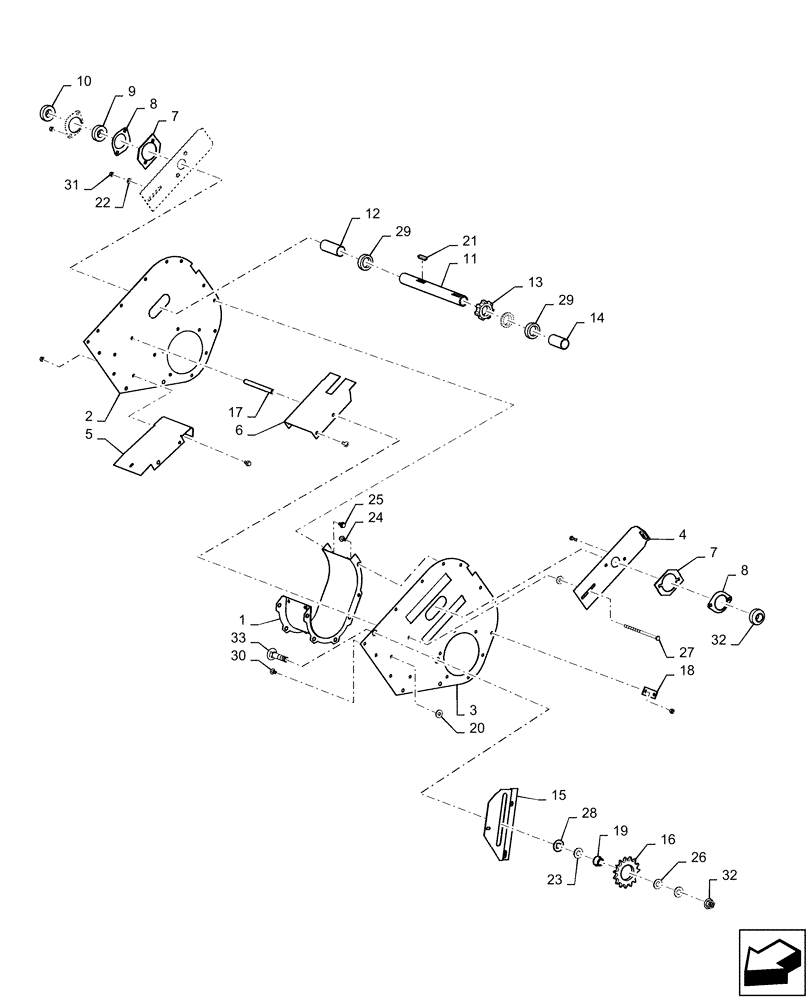

Схема запчастей Case IH 7140 - (74.140.AK[04]) - HEAD, TAILINGS ELEVATOR (74) - CLEANING
10
32
25
8
9
21
30
29
31
2
7
32
16
33
26
1
27
12
11
6
4
17
18
7
15
29
24
5
14
28
19
22
8
20
13
23
3

Артикул

Название

Примечание

Количество

1

87622913

TROUGH

Elevator Head

1шт.

2

87620241

PLATE ASSY.

Inside, Head

1шт.

3

87620236

PLATE ASSY.

Outside, Head

1шт.

4

87622915

SUPPORT ASSY.

Head Shaft

2шт.

5

87736713

TOP COVER

Bottom, Elevator Head

1шт.

6

87622916

BOTTOM

False, Elevator Head

1шт.

7

87624305

LARGE PLATE

Spacer

4шт.

8

50591

FLANGE,52mm

4шт.

9

214366C91

BALL BEARING,25.40mm ID x 52mm OD

2шт.

10

87431217

COLLAR,25.43mm ID x 38.1mm OD x 13.5mm W

25mm ID

2шт.

11

87515814

SHAFT

Tailings Elevator Drive

1шт.

12

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

1шт.

13

87691619

SPROCKET

7 Tooth

1шт.

14

87036418

SPACER,26.64mm ID x 33.4mm OD x 39.67mm L

1шт.

15

87622836

BRACKET

Elevator Chain Tightener

1шт.

16

87283101

SPROCKET,15T

15 Tooth

1шт.

17

87302565

SPACER,9.2mm ID x 13.7mm OD x 147.6mm L

1/4" x 5.8"

1шт.

18

142478A2

BRACKET

Chain Shield

1шт.

19

84334697

BUSHING,17mm ID x 32mm OD x 18.8mm L

Hub, 17mm ID

1шт.

20

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

3шт.

21

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

22

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

1шт.

23

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

3шт.

24

87681207

BOLT,M8 x 24.1mm, Cl 10.9

3шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

3шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

27

87690472

BOLT,Hex, M8 x 180mm, Cl 8.8

M8 x 180mm, 8.8

1шт.

28

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

3шт.

29

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

7шт.

30

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

4шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

15шт.

32

86512498

FLANGE NUT,M16 x 2, Cl 10

1шт.

33

711-16080

CARRIAGE BOLT,Sq Nk, M16 x 2 x 80mm, Cl 8.8

1шт.

Выбрано товаров: 33
