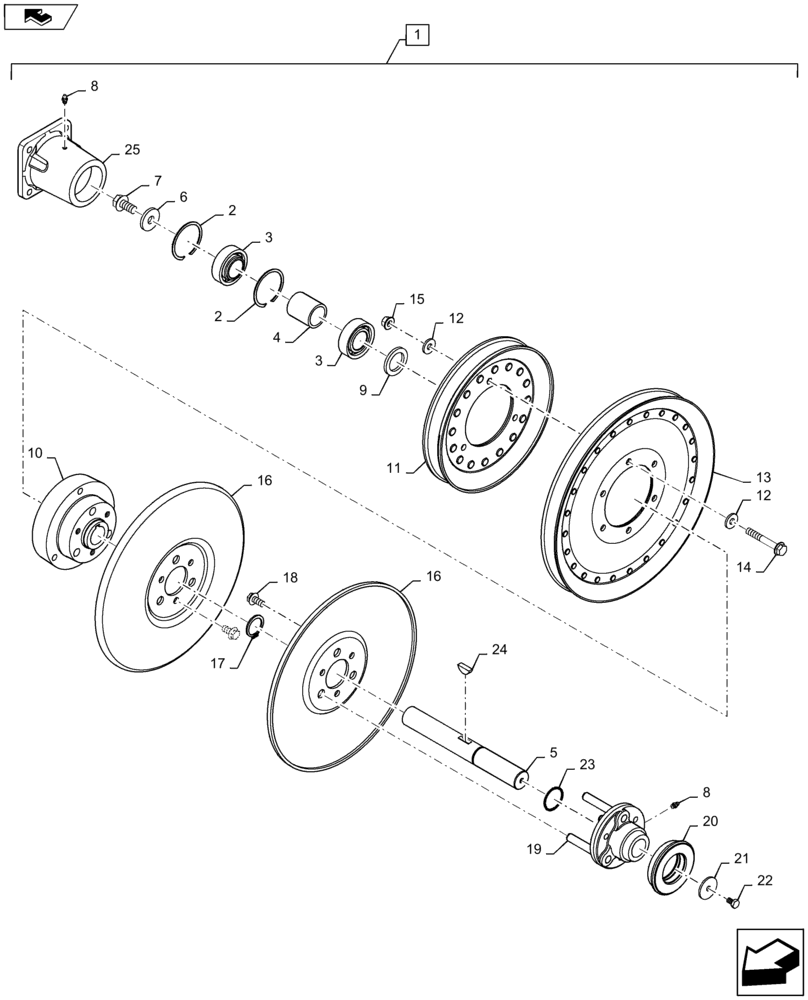

Запчасти Case IH 7140 (74.136.AD[02]) - PULLEY ASSEMBLY CLEANING FAN, CLEANING FAN DRIVE JACKSHAFT ASSEMBLY, IDLER ASSEMBLY FAN DRIVE WITH PULLEY (74) - CLEANING

1

87494910

PULLEY

Cleaning Fan Jackshaft Assy, Incl 2 - 25

1шт.

2

360936R1

RING

Snap Ring, Separator Drive Shaft

2шт.

3

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

2шт.

4

152926C1

SPACER

1-5/16" ID x 1-5/8" OD x 1.8"

1шт.

5

194853C3

SHAFT

Elevator And Fan Drive

1шт.

6

195-81030

WASHER

.531" x 1.5" x 0.188"

1шт.

7

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

1шт.

8

87414

LUBE NIPPLE,1/4" - 28

2шт.

9

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

1шт.

10

183333C1

HUB

Fixed Pulley

1шт.

11

193948C1

PULLEY,39.61mm W x 254mm OD

Cleaning System Drive

1шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

6шт.

13

295918A1

PULLEY,355.6mm OD

Fan, Jackshaft Driven

1шт.

14

87698841

BOLT,Hex, M10 x 70mm, Cl 10.9

Flange, M10 x 70mm, 10.9

3шт.

15

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

3шт.

16

301141A2

PULLEY,327.66mm OD

Fan Driver

2шт.

17

100-16125

SNAP RING,#125, Ext

1шт.

18

115745A1

FLANGE BOLT

Special Head Height

6шт.

19

185286C91

HUB

Fan Driven Pulley

1шт.

20

168215C92

BALL BEARING,50.8mm ID x 92.84mm OD x 20.5mm W

1шт.

21

495-81122

WASHER,.344" x 1 1/2" x .120"

1шт.

22

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

23

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

24

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

25

192418C1

HUB

Elevator And Fan Drive

1шт.
